Product Overview

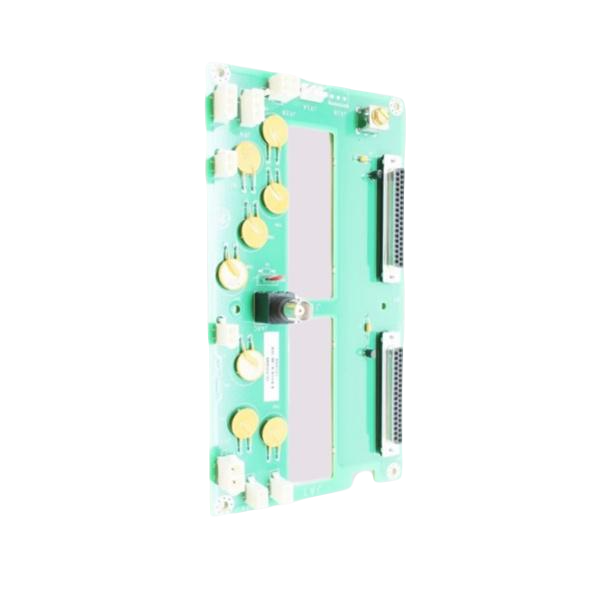

The GE IS200JPDVG1AAA is a Power Distribution Module (PDM) designed for Mark V control systems. It manages power delivery and ensures stable operation of critical turbine control components. This PCB version incorporates enhanced revisions suitable for industrial-grade applications.
Hardware Configuration
The IS200JPDVG1AAA includes specialized hardware to support power distribution and interface functions:
- I/O Pack: Integrated PIOAH1A Input/Output module provides essential I/O functionality.
- Interface Compatibility: Works with Mark V series via ARCNET-based I/O migration configuration.
- Revisions: Functional, design, and artwork revisions are all rated A, ensuring consistent quality.
Installation and Mounting
The board installs directly into the Mark V cabinet, providing seamless integration with other control modules. Its standard PCB coating protects against heat, dust, and vibration. Operators can mount the board without additional terminal interfaces, streamlining maintenance and reducing installation complexity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model Number | IS200JPDVG1AAA |
| Series | Mark V Specialized Series |
| Function | Power Distribution Board (PDM) |
| Functional Acronym | JPDV |
| PCB Coating | Standard / Normal |
| Functional Revision | 1 (A) |
| Design Revision | A |
| Artwork Revision | A |
| I/O Pack | PIOAH1A Input/Output Module |
| Interface | ARCNET-based I/O migration for Mark V |
Key Benefits
- Provides stable power distribution for all Mark V modules.
- Ensures compatibility with legacy Mark V systems via ARCNET.
- Maintains consistent quality with A-rated functional and design revisions.
- Standard PCB coating enhances durability in industrial environments.
