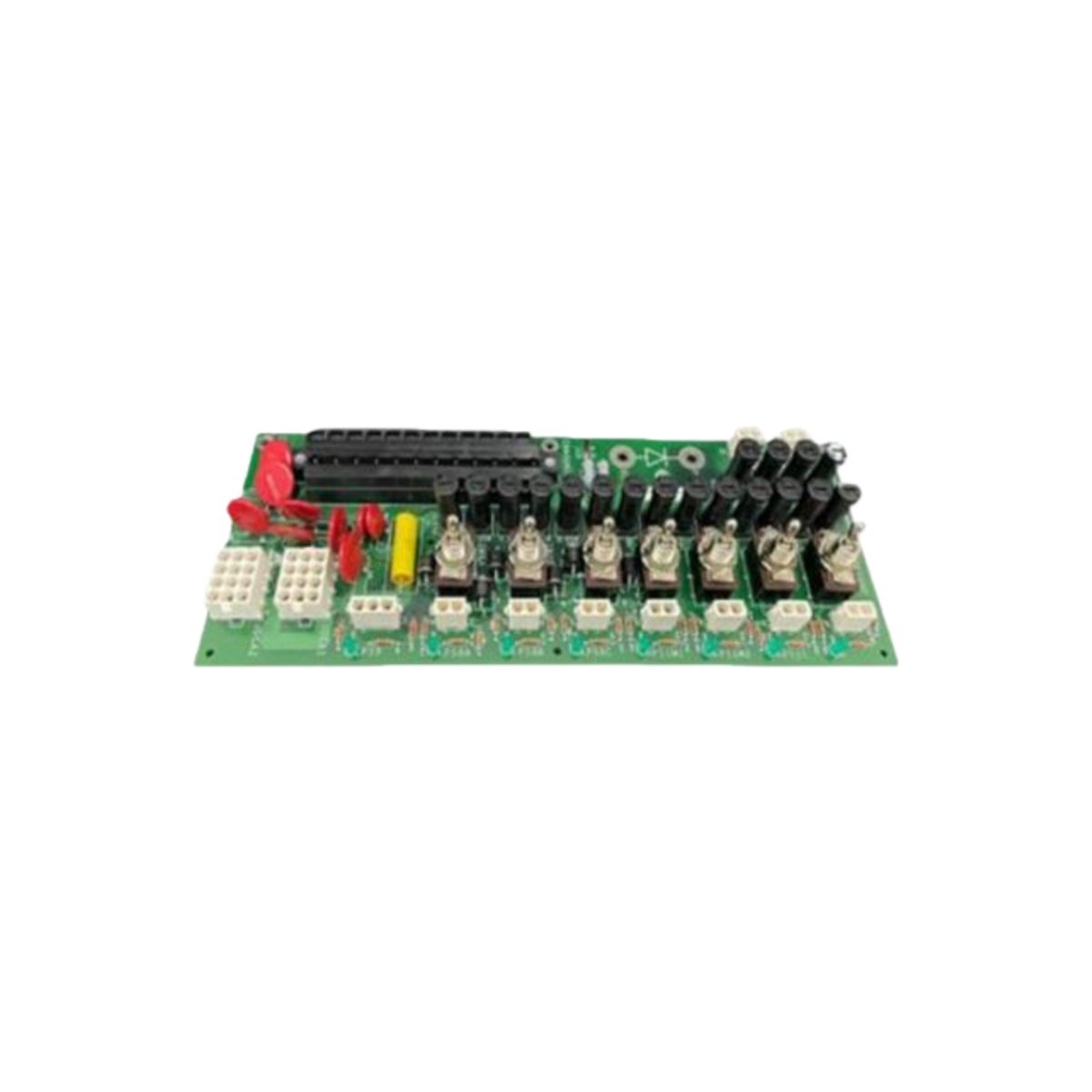

The GE IS200EPDMG1B belongs to the Mark VI series, a trusted line from General Electric. This exciter power distribution module plays a critical role in managing voltage regulation. It ensures stable power delivery within turbine control systems.

Technical Overview and Specifications

This module features a compact design for easy panel integration. It measures approximately 10.5 inches in width and 3.5 inches in height. The unit weighs roughly 1.8 kilograms, offering a robust yet manageable structure.

• Manufacturer: General Electric (GE)

• Series: Mark VI (Speedtronic)

• Category: Exciter Power Distribution Module

• Dimensions: 10.5 in x 3.5 in x 6.5 in (approx.)

• Weight: 1.8 kg (approx.)

• Interface: Single-slot VME bus connector

• Components: Contains one main control board with embedded capacitors

• Energy Storage: Features internal capacitors for stable voltage hold-up

Key Design Features and Integration

Engineers will appreciate the module’s straightforward installation process. It connects directly to the backplane using a single VME interface. This design simplifies maintenance and reduces the total number of connecting components.

Additionally, the GE IS200EPDMG1B incorporates energy storage capacitors. These capacitors maintain system stability during transient power fluctuations. Consequently, the module provides consistent performance for critical excitation control tasks.

Application and Usage

This power distribution module integrates seamlessly into the Mark VI ecosystem. It distributes power efficiently to exciter field amplifiers and control boards. Therefore, it is essential for maintaining precise turbine operation. For similar industrial automation components
