Product Overview and Core Functionality

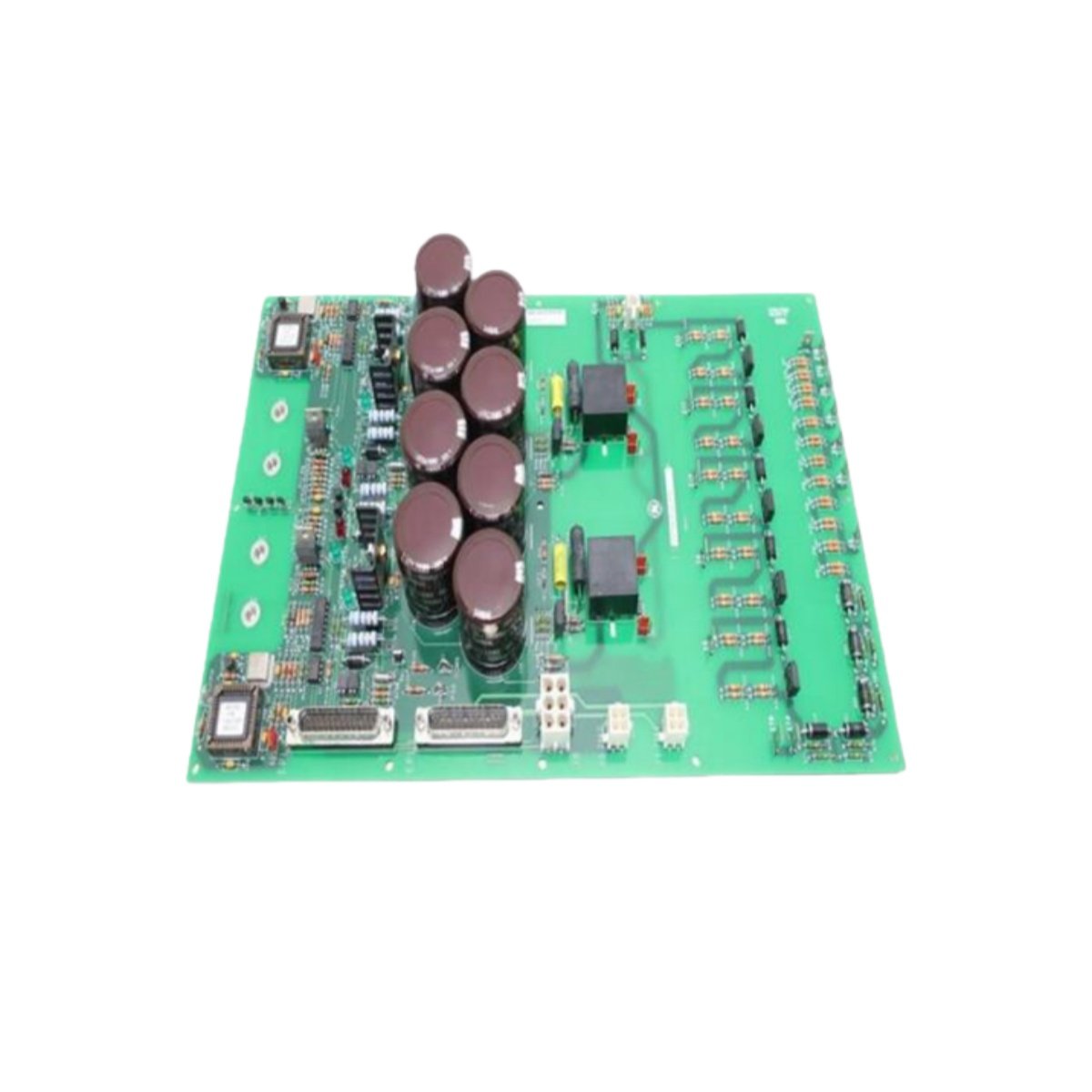

The GE IS200EDEXG1A serves as a critical de-excitation module within the Mark VI turbine control system. This board manages the safe dissipation of field energy during generator shutdown or fault conditions. It ensures the protection of both the turbine generator and connected equipment during emergency stops.

Engineers design this module specifically for excitation control applications in power generation. The GE IS200EDEXG1A interfaces directly with the exciter field circuits to provide controlled de-energization. Consequently, it prevents dangerous voltage spikes and mechanical stress during shutdown sequences.

Physical Connectors and Interface Specifications

The GE IS200EDEXG1A features multiple industrial-grade connectors for reliable system integration. A primary 20-pin connector handles main control signals from the Mark VI controller. Additional terminal blocks provide direct connections to field devices and excitation equipment.

These connectors utilize gold-plated contacts for corrosion resistance and signal integrity. They withstand the high vibration environments typical of turbine generator applications. The board’s layout positions connectors for easy access during installation and maintenance.

Onboard Protection Components

Strategically placed varistors provide transient voltage suppression on critical input circuits. These components clamp voltage spikes from external sources before they can damage sensitive electronics. The GE IS200EDEXG1A thus maintains operational integrity even during electrical disturbances.

High-energy discharge resistors facilitate controlled dissipation of field energy during de-excitation events. These components absorb and convert stored magnetic energy into harmless heat. The module safely manages this energy without stressing other control system components.

Energy Storage and Dissipation Capabilities

The GE IS200EDEXG1A incorporates specialized components for handling significant energy stored in generator fields. Capacitor banks provide initial surge absorption during the first milliseconds of a de-excitation event. This protects downstream discharge circuits from excessive instantaneous current.

Engineers rate the discharge circuit to handle the full stored energy of typical generator fields. The module safely dissipates this energy within a controlled timeframe during shutdown sequences. This prevents mechanical damage to the generator rotor and associated equipment.

Physical and Environmental Specifications

The GE IS200EDEXG1A conforms to the standard Mark VI board form factor for VME rack mounting. Its dimensions allow installation in any compatible slot within the turbine control cabinet. The board operates reliably from 0 to 60 degrees Celsius without performance degradation.

Conformal coating protects all circuit boards from moisture, dust, and airborne contaminants. This protective layer prevents corrosion and electrical tracking in harsh environments. The GE IS200EDEXG1A meets GE’s stringent quality standards for critical turbine protection.

Diagnostic Capabilities

Built-in test circuits continuously monitor the health of critical de-excitation components. The GE IS200EDEXG1A reports any degradation in discharge circuit performance to the main controller. Status indicators provide immediate visual feedback on module operating condition.

Technical Specifications Summary
