Product Overview

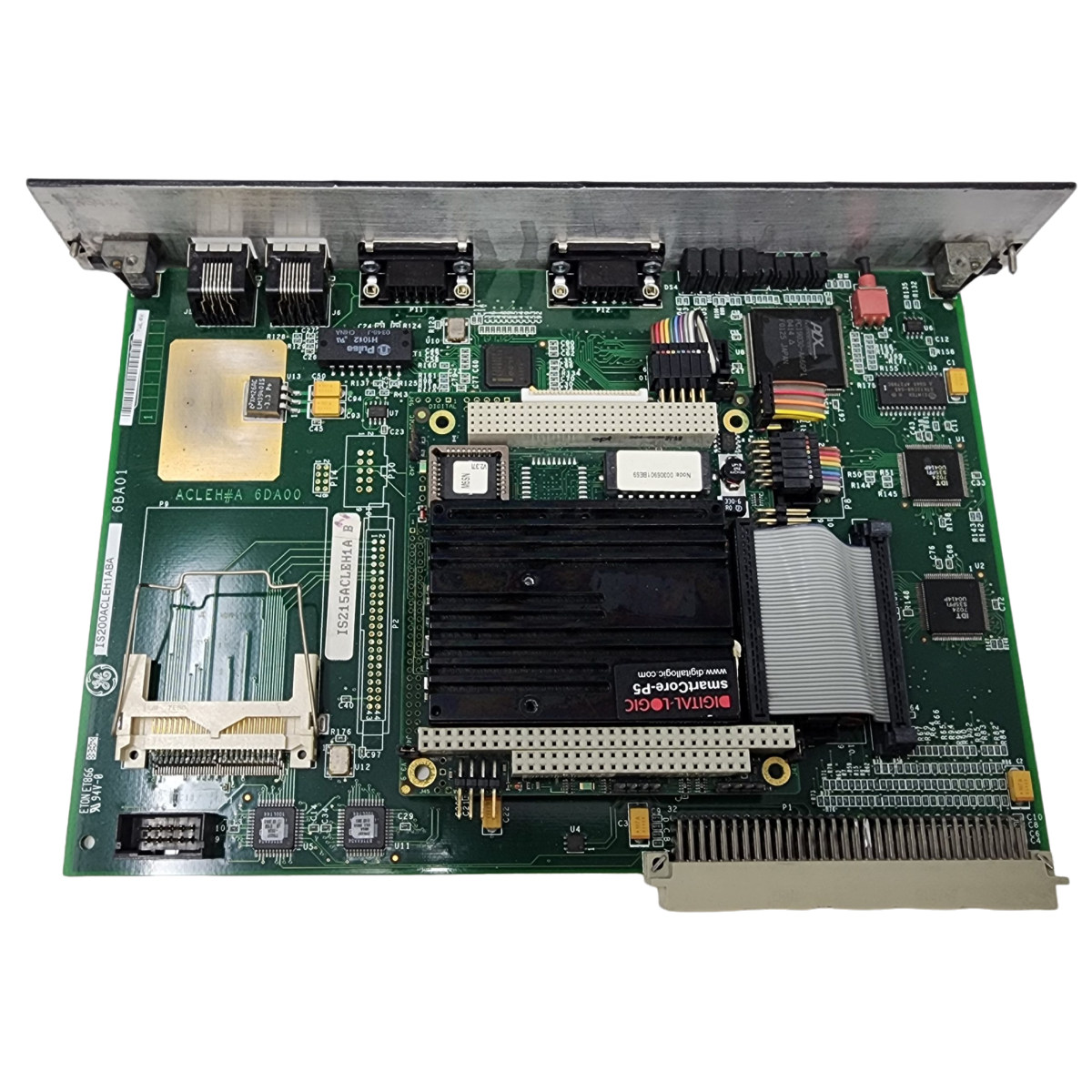

The IS200ACLEH1ACB is an Application Control Layer Module (ACLE) for EX2100 control systems.
It serves as a microprocessor-based master controller managing tasks over Ethernet™ and ISBus networks.
The module fits into two half-slots in a standard Innovation Series drive or EX2100 exciter board rack.
Hardware Features
Integrated Circuit Features
- CPU: 486 processor at 100 MHz with 16 KB L1 cache.
- Memory: 8 MB DRAM, 4 MB Flash for BIOS, 128 KB L2 cache.
- Connectivity: Ethernet, ISBus ports, COM1/2 serial ports, PCI controller, Bus target interface.
PCI Controller
- Manages memory, I/O, and configuration transfers to/from PCI bus.
- Supports 152 ns cache line fills between L2 and L1 caches.
BIOS
- 1 MB flash memory mounted in ACL socket.
- Redirects video display to COM1 if no VGA installed.
PCI/ISA Bridge
- Connects CPU via Address and LINK buses.
- Manages system clock, reset logic, keyboard, speaker control, and advanced power management.
Software Features
- BIOS Initialization: Identifies hardware and directs output to COM1.
- GE Extended BIOS: Serial OS loading via COM1, displays CMOS settings, enables flash disk support.
- GE Control Systems Toolbox: Configures runtime actions, stores Pcode, enables online monitoring, parameter changes, and firmware upgrades.
Connector Pin Signals
- COM1/2 Serial Ports: Serial communication interfaces.
- P3 Ethernet Connector: High-speed network connections.
- ISBus Connectors: Communication with control system.
Technical Specifications
| Attribute | Details |
|---|---|
| Part Number | IS200ACLEH1ACB |
| Manufacturer | General Electric |
| Series | EX2100 Excitation Control |
| Functional Abbreviation | ACLE |
| Instruction Manual | GEI-100584A |
| Original Manufacturer | GE General Electric |
| Software Configuration | GE Turbine Control Systems Solutions (eTCSS CD) |
| Functional Part Number | IS200ACLEH1A |
| Primary Functional Revision | A |
| PCB Coating | Conformal Coating |
| Dimensions | Standard Innovation Series drive rack size |
| Operating Temperature | -40°C to +70°C |
| Power Requirements | 5 VDC, 100 MHz CPU |
| Weight | 2.90 lbs |
| Country of Manufacture | United States (USA) |
| Manual Reference | GEI 100434A |
| Availability | In Stock |
Applications
- Gas and Steam Turbine Control Systems: Efficient turbine operations.
- Industrial Automation: Supports critical control functions.
- EX2100 Exciter Systems: Reliable power management and control.
Details
| Weight | 1.315 kg |
|---|---|
| Dimensions | 100 × 50 × 20 mm |
