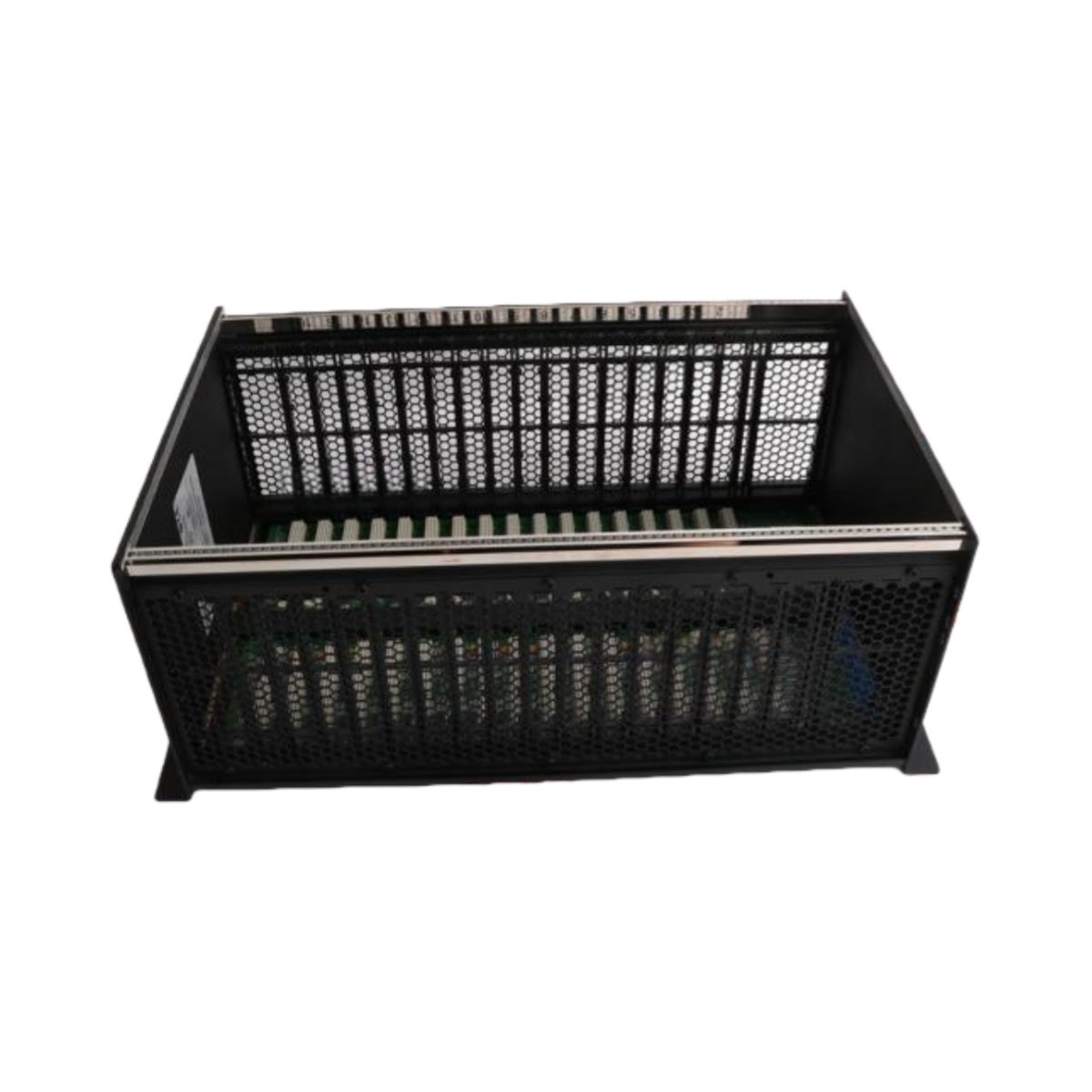

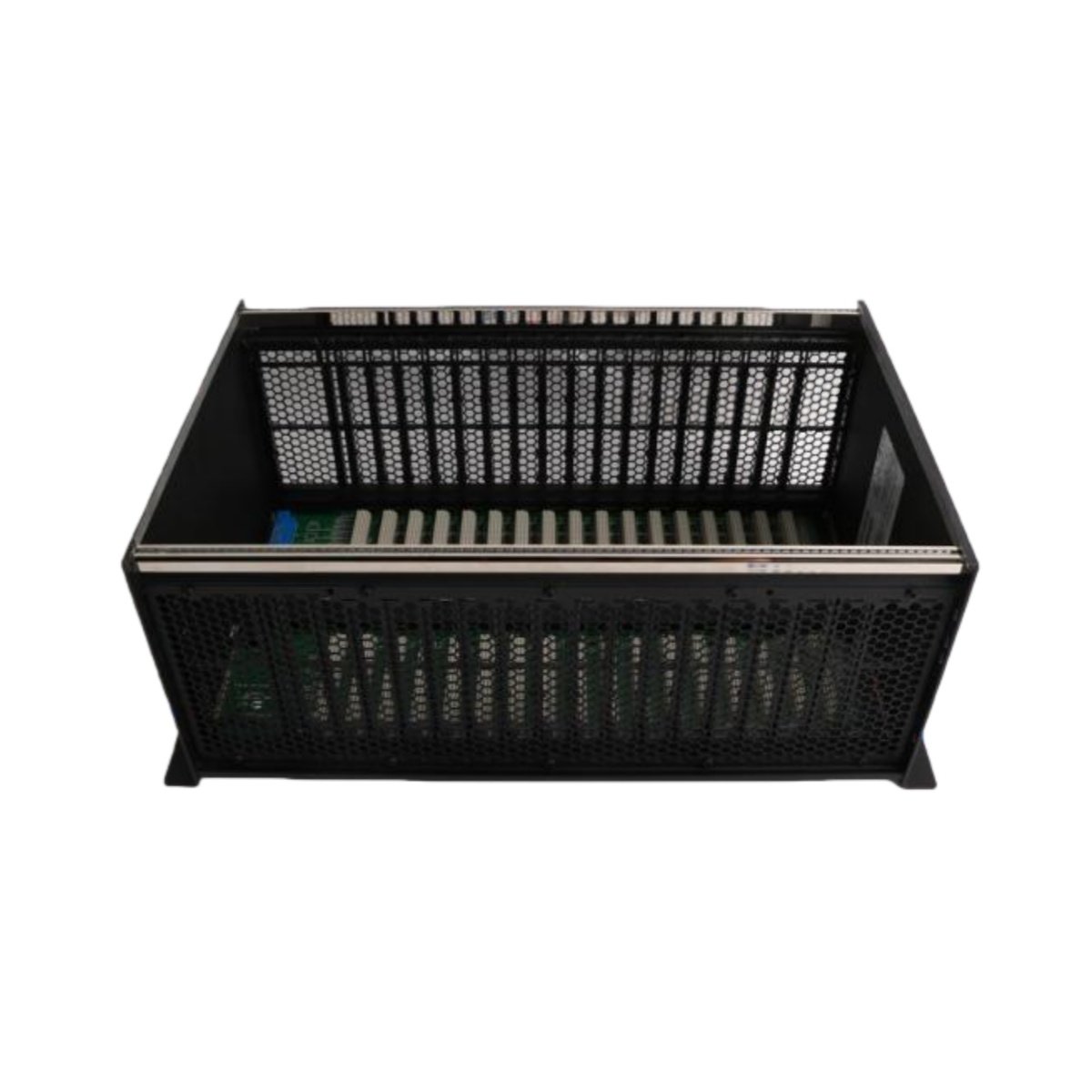

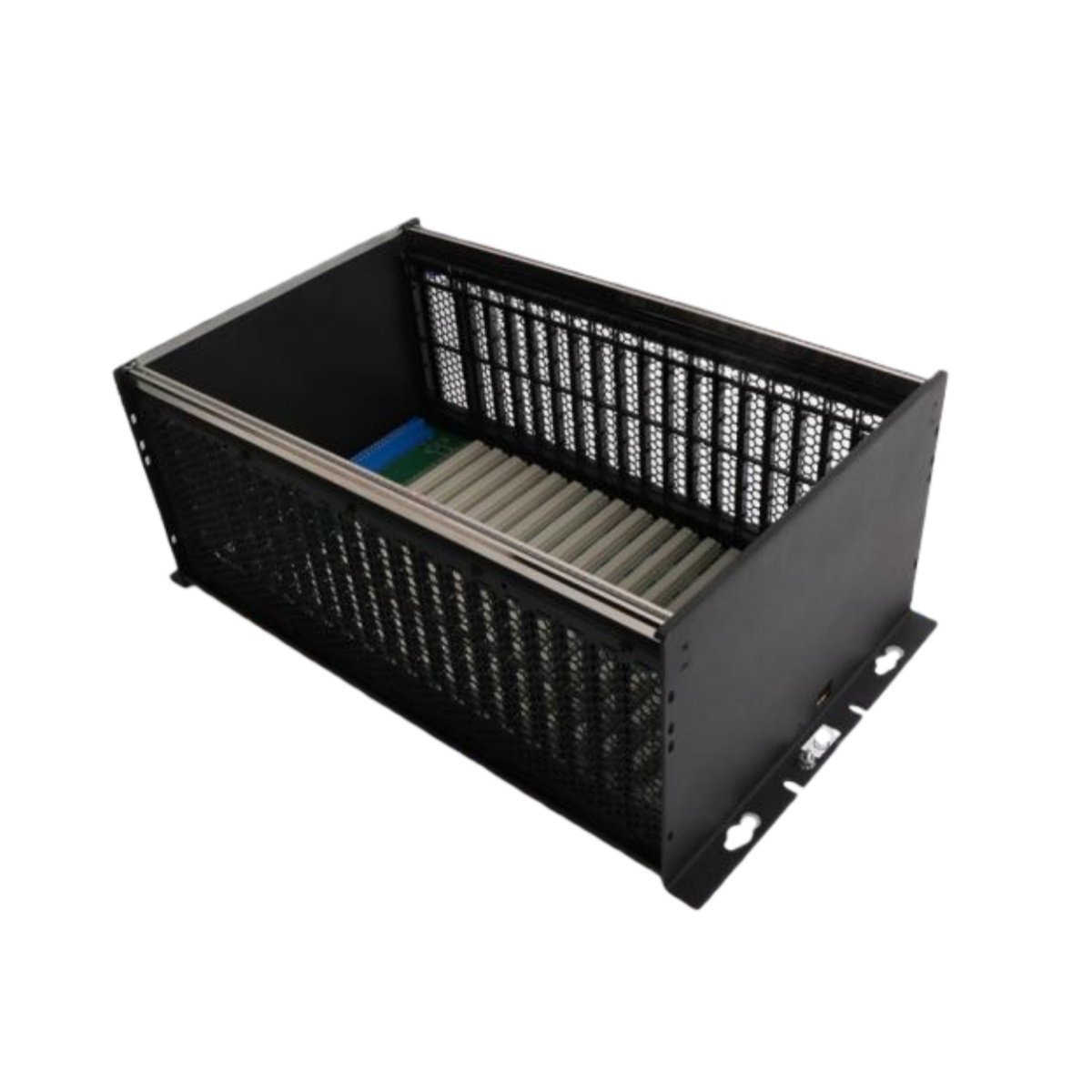

The GE IC698CHS017 is a high-capacity 17-slot rack designed specifically for the RX7i PACSystems series. This chassis supports a versatile mix of modules, including Series 90-70, VME, and native RX7i units. It features connector spacing of 0.8 inches (20.3 mm) to accommodate both single-width and double-width modules effectively.

Key Technical Specifications and Physical Attributes

We designed this rack for robust industrial environments and easy integration. The power supply occupies slot 0, while the CPU resides in slot 1 for optimal system organization. Consequently, the remaining 15 slots provide flexible configuration options for various I/O and communication modules.

• Manufacturer: GE Fanuc

• Series: RX7i PACSystems

• Part Number: IC698CHS017

• Product Type: 17-Slot Module Rack / Chassis

• VME Support: VME64 standard compatibility

• Total Slots: 17 (supports 15 single-width or 8 double-width modules)

• Slot Pitch: 0.8 inches (20.3 mm) between connectors

• Dimensions (H x W x D): 281.9 x 482.5 x 190.5 mm (11.1 x 19.0 x 7.5 in.)

• Weight (Approx.): 3.6 kg (8 lbs) – empty chassis

• Power Supply Location: Dedicated slot 0 for RX7i power supplies

• Maximum Current Capacity: 20 Amps with 100-Watt supply; 60 Amps with 350-Watt supply

• Grounding: Side-mounted ground studs require AWG #12 (3.33 mm²) wire for earth connection

Robust Grounding and Installation Features

Proper grounding ensures reliable operation and noise immunity for the entire system. Metal faceplates on RX7i modules must attach securely to the enclosure for effective grounding. Alternatively, Series 90-70 modules feature built-in ground clips that establish contact automatically upon installation. For comprehensive safety, use the side-mounted ground studs with the recommended wire gauge to connect directly to earth ground.

Flexible Module Configuration Options

The IC698CHS017 offers exceptional flexibility for complex automation applications. Engineers can mix VME64 modules with RX7i components within the same chassis seamlessly. This versatility makes it ideal for system upgrades or new installations requiring diverse communication protocols. Ultimately, this rack provides a reliable foundation for demanding industrial control systems.
