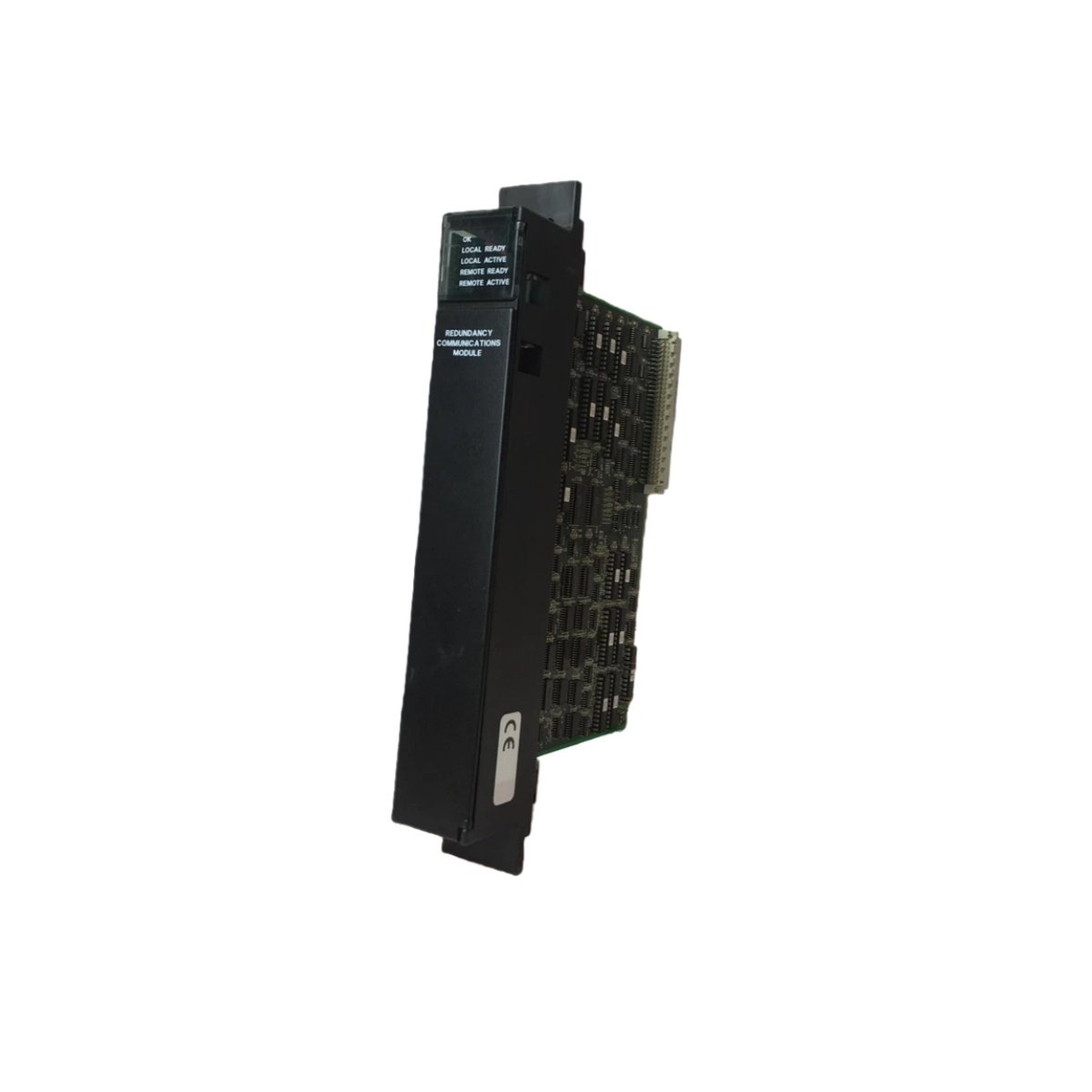

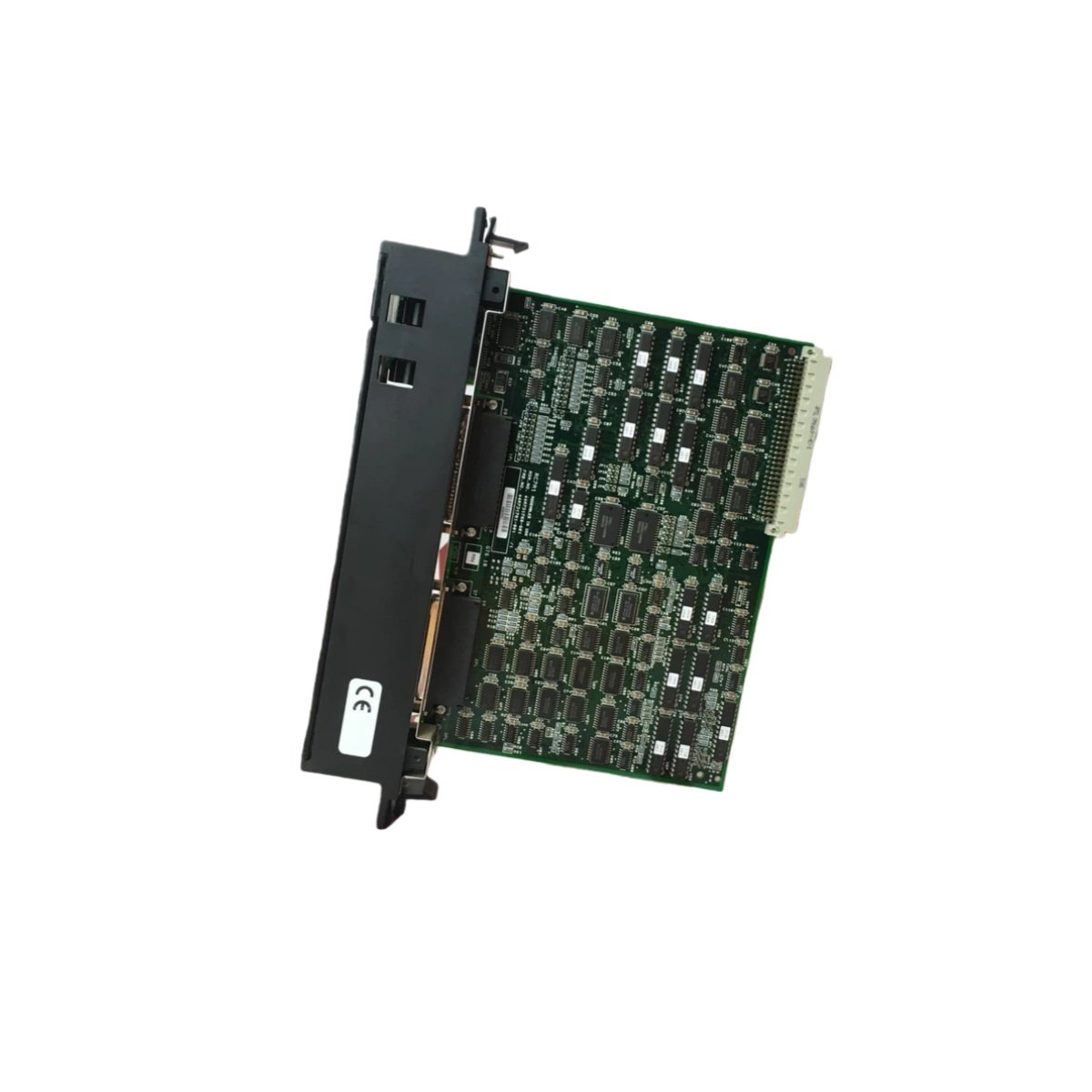

The GE IC697RCM711 operates as a dedicated redundancy communications module for Series 90-70 programmable logic controllers. This module enables seamless processor failover in critical applications requiring maximum system uptime. It consequently maintains continuous control even during primary CPU faults or maintenance activities.

Physical Characteristics and Build Quality

Engineers designed this module for installation in Series 90-70 racks with standard form factor dimensions. The unit measures approximately 30 centimeters in height, 6 centimeters in width, and 20 centimeters in depth. Its total weight reaches roughly 1.2 kilograms, reflecting robust construction with shielding components. The metal enclosure ensures reliable operation in electrically noisy industrial environments.

Technical Specifications

Redundant Operation Principles

The IC697RCM711 works in pairs with a second identical module in a separate CPU rack. Both processors execute the same application program simultaneously while exchanging health data. The primary CPU controls all I/O through the redundant communications link. Consequently, the standby system can assume control instantly upon primary failure detection.

Fiber Optic Communication Link

Dual fiber optic cables create a redundant communication path between the two processor racks. This optical link provides complete electrical isolation between the redundant systems. It also eliminates ground loop issues that could affect communication reliability. The ST-style connectors ensure secure termination even in high-vibration environments.

Synchronization and Data Transfer

The GE IC697RCM711 maintains complete data synchronization between primary and standby processors. It transfers all register values, timer counts, and I/O states during every program scan. This continuous synchronization ensures the standby system has current data for seamless takeover. The module uses proprietary protocols optimized for minimal latency.

Failover Performance

Engineers optimized this module for extremely fast switchover times under 50 milliseconds. This rapid response ensures that controlled processes experience no disruption during failover events. The standby CPU assumes control at exactly the same program state as the failed primary. Therefore, critical applications like continuous processes remain completely unaffected.

Status and Diagnostic Indicators

Eight front-panel LEDs provide immediate visual feedback on module and system status. Green indicators show primary or standby role, link health, and communication activity. Red LEDs illuminate to indicate faults or loss of synchronization between racks. These diagnostics enable operators to quickly identify and address any redundancy issues.

System Configuration Requirements

Proper redundant operation requires both CPUs to have identical firmware and application programs. You must install the IC697RCM711 modules in dedicated slots within each processor rack. The fiber optic cables must follow separate physical paths for true redundancy protection. Careful configuration ensures optimal performance and reliable failover operation.

Application Examples

This redundancy module excels in applications where downtime causes significant financial loss. Continuous process industries like chemical, refining, and power generation commonly use this technology. Critical infrastructure applications such as water treatment also benefit from redundant control. The IC697RCM711 provides the high availability these applications demand.
