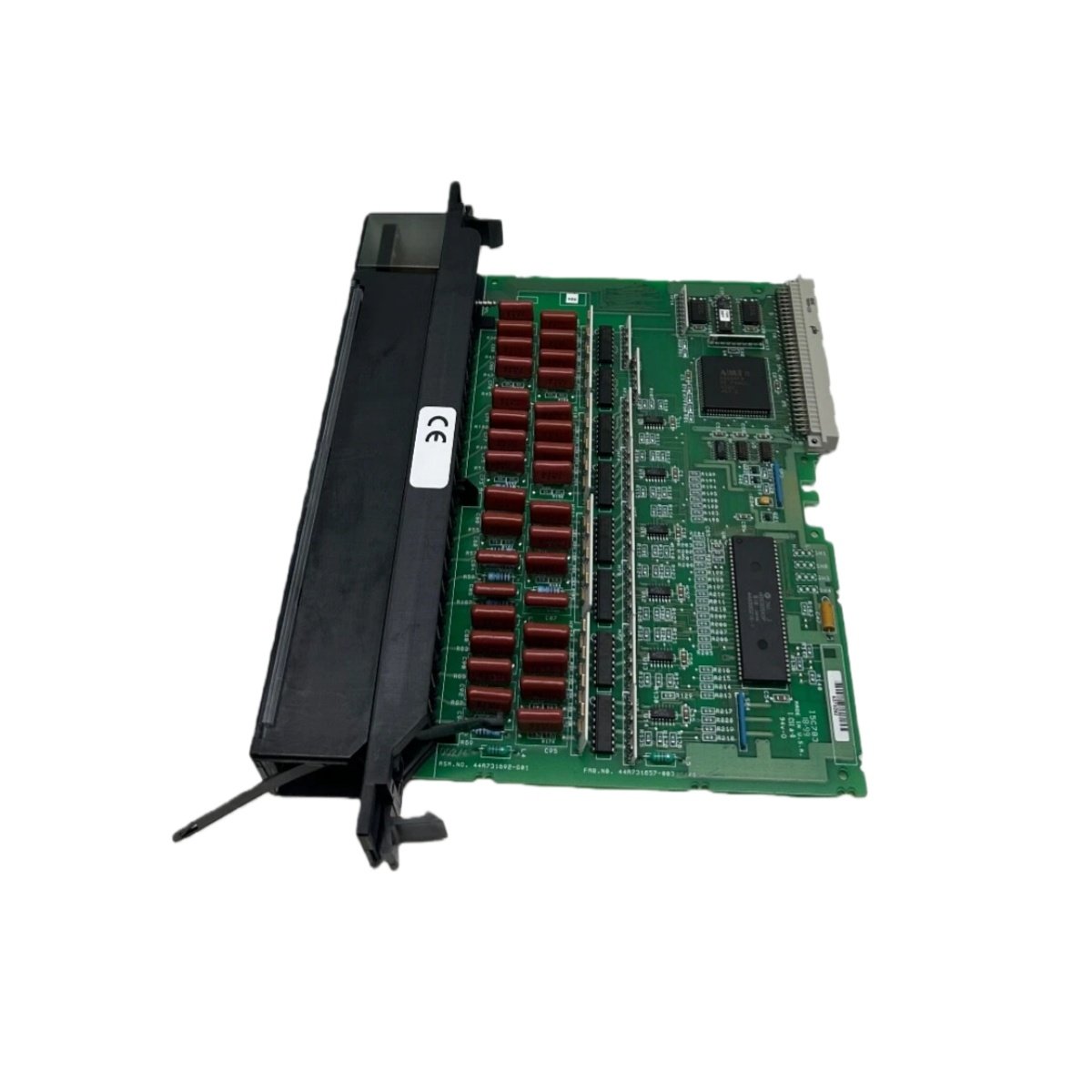

The GE IC697MDL650 serves as a logic input module within the 90-70 Series PLC family. General Electric designed this unit for reliable digital signal acquisition. It captures field input states and transmits them to the processor for decision-making.

Technical Specifications

This module provides sixteen discrete input points in a compact form factor. Each channel accepts 24 VDC signals from sensors or field devices. The module dimensions measure 10.9 inches in length and 3.9 inches in height. It weighs approximately 1.1 kilograms, offering a sturdy build for industrial environments.

Signal Processing and Protection

Optical isolation separates the field wiring from the backplane logic. This design protects the processor from voltage spikes and electrical noise. The module filters input signals to prevent false triggering from transient conditions. Consequently, the GE IC697MDL650 delivers dependable performance in demanding applications.

Each input channel features built-in LED status indicators. These lights provide immediate visual feedback for troubleshooting and maintenance. Engineers can quickly identify active inputs without additional test equipment.

Integration and Installation

This module inserts directly into a 90-70 Series PLC rack. It connects to the backplane through a standard 48-pin connector. Installation follows a straightforward procedure without requiring special tools. The GE IC697MDL650 integrates seamlessly with other 90-70 Series components for cohesive system operation.

Application Overview

This logic input module suits a wide range of industrial automation tasks. It works well with proximity switches, pushbuttons, and limit switches. Many users combine this module with output modules to complete their I/O configurations. The GE IC697MDL650 provides a reliable foundation for discrete input management.
