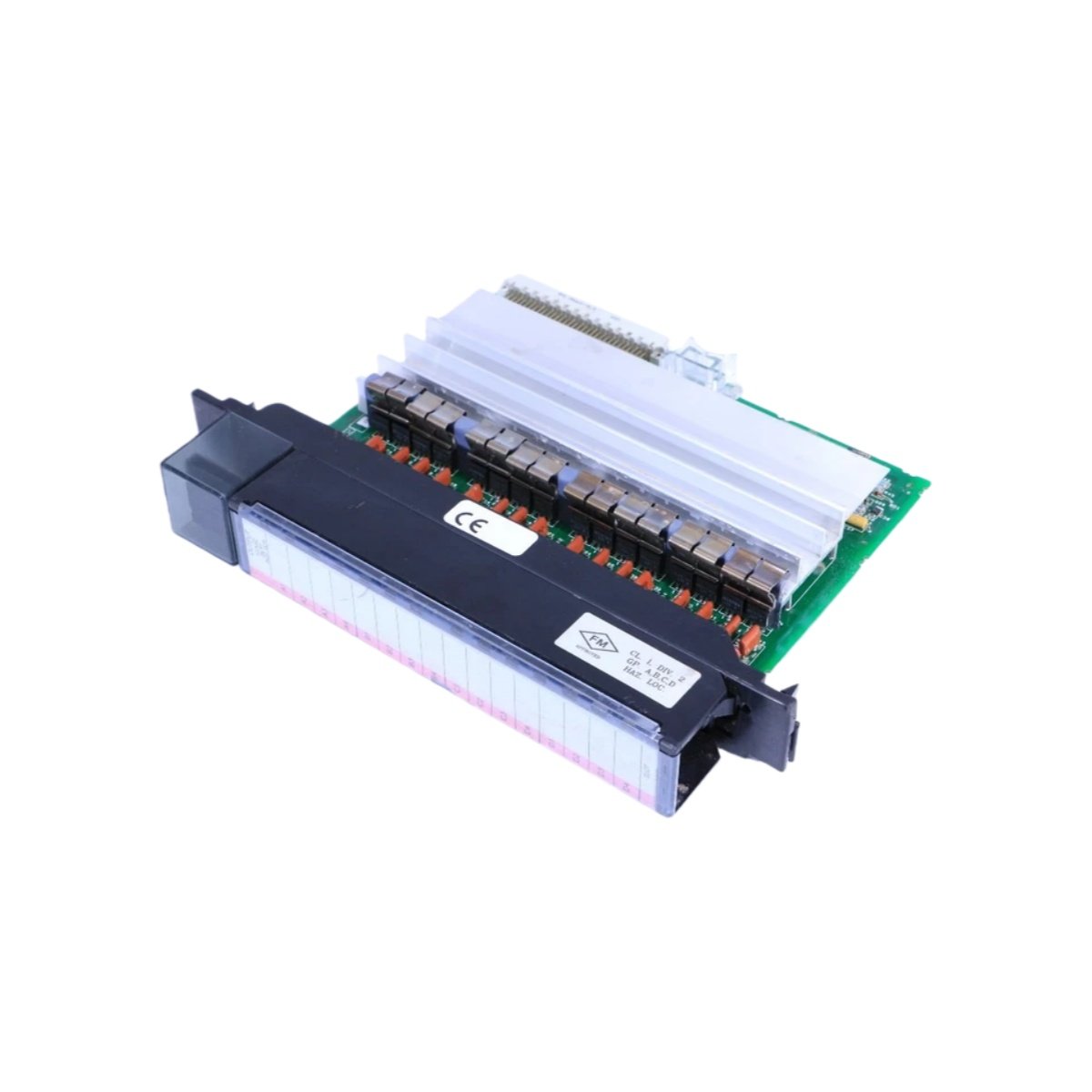

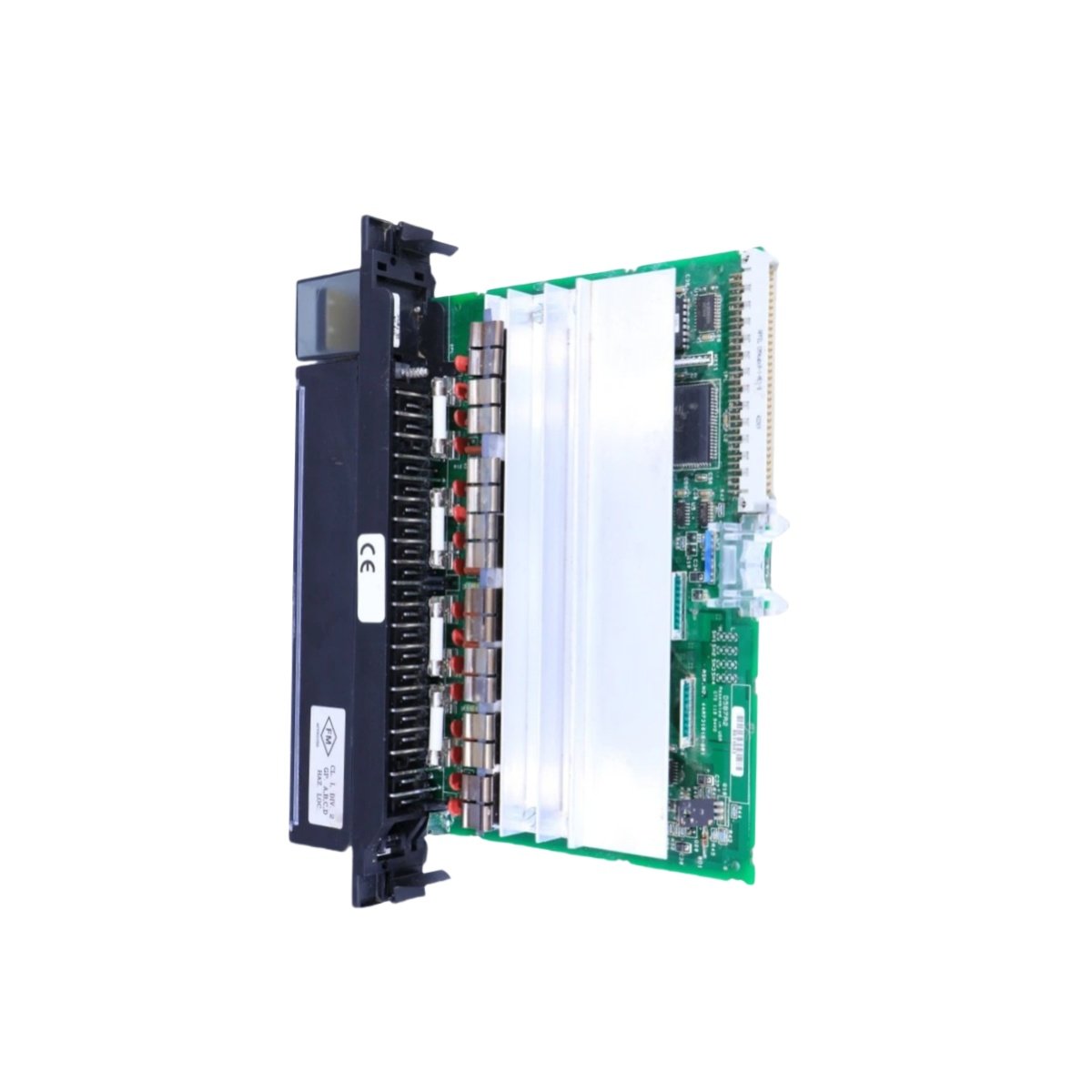

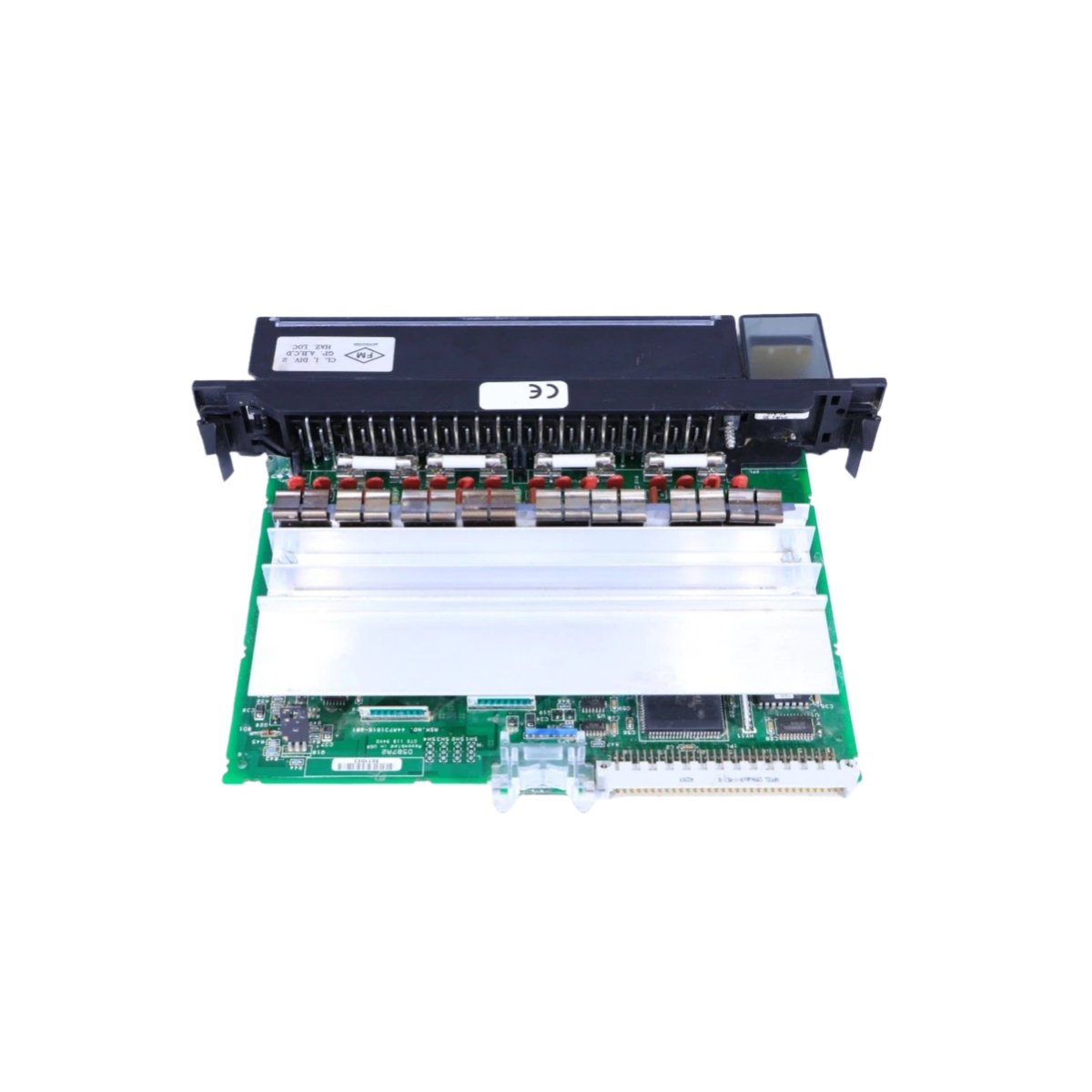

The GE IC697MDL340 is a robust discrete output module designed for the Series 90-70 programmable logic controller platform. This module delivers reliable switching power for a wide array of industrial actuators and devices. Its key strength lies in handling high inrush currents, which makes it ideal for driving motors, solenoids, and contactors.
Detailed Specifications and Integration Parameters
Engineered for durability, the module provides 16 isolated output points with a 120 VAC rating. Each point supports a continuous current of 2 amps at 50/60 Hz. Notably, the IC697MDL340 offers a high inrush capacity, typically handling surges up to ten times its rated current. For integration, it installs directly into a Series 90-70 rack, ensuring seamless communication and power delivery.
This module exemplifies the quality expected from GE Fanuc Automation (now part of GE Intelligent Platforms). Professionals sourcing components can find similar industrial-grade modules, such as protective relays, on global marketplaces.
Technical Parameters Overview
Below is a summary of the critical technical specifications for this output module.
| Parameter Category | Specification |
|---|---|
| Manufacturer & Series | GE Fanuc, Series 90-70 |
| Product Model | IC697MDL340 |
| Module Type | Discrete Output Module |
| Rated Voltage | 120 Volts AC |
| Operating Frequency | 50 / 60 Hz |
| Total Number of Points | 16 Points |
| Current per Point (Steady State) | 2 Amps |
| Inrush Current Capacity | 10 x Rated Current |
| Typical Applications | Motors, Solenoids, Indicators, Contactors |
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
