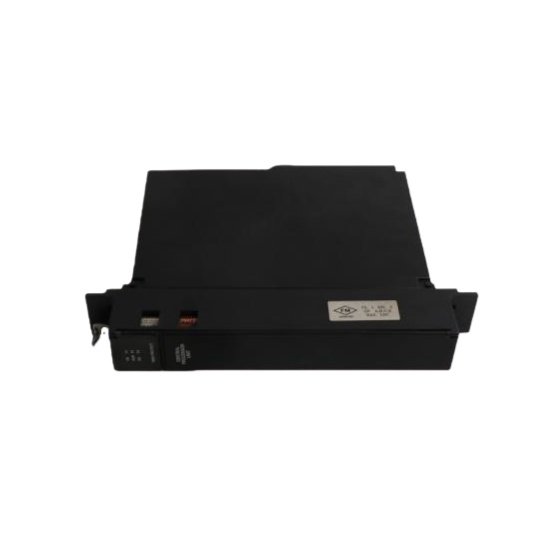

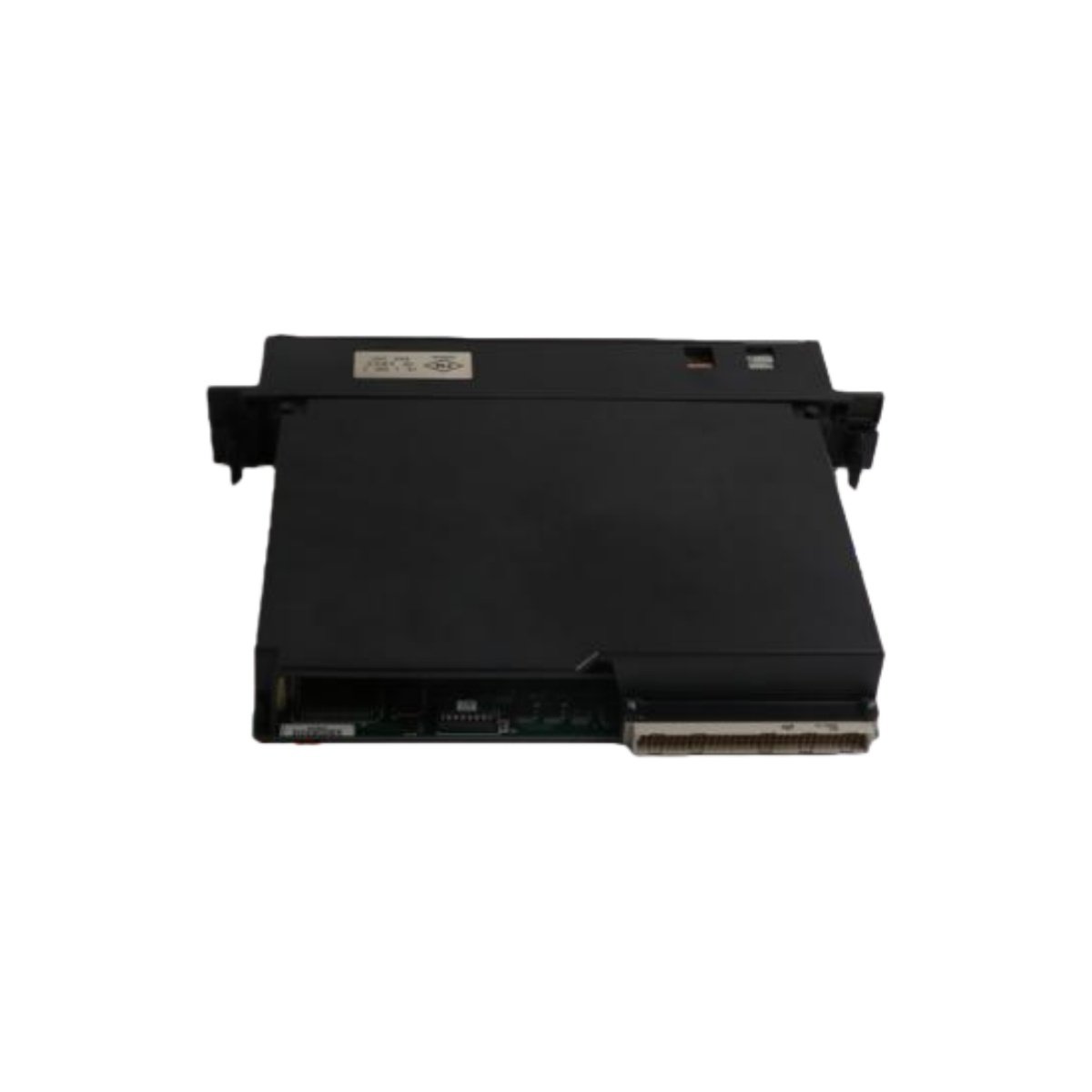

The GE IC697CPX782 serves as a powerful central processor for the Series 90-70 PLC platform. This module features a robust 80486DX4 microprocessor running at 96 megahertz. Moreover, it delivers the deterministic control necessary for complex industrial automation tasks.

Core Processing and Memory Architecture

This CPU provides substantial memory resources for user logic and system data. It includes 1 megabyte of RAM for active program execution and data handling. Additionally, the module offers 256 kilobytes of non-volatile RAM for critical program retention.

Detailed Technical Specifications

The IC697CPX782 integrates advanced computing into a reliable industrial form factor. Below is a detailed breakdown of its definitive technical parameters.

Technical Specifications:

• Manufacturer & Model: GE (Fanuc) IC697CPX782

• Product Series: Series 90-70 Programmable Logic Controller

• Category: Central Processing Unit (CPU) Module

• Microprocessor: 80486DX4

• Clock Speed: 96 MHz

• Voltage Input: 5 Volts DC from the backplane

• Memory (RAM): 1 MB for program execution and data

• Memory (NV-RAM): 256 KB for program and data backup

• Communication Ports: 3 serial ports for programming and peripheral communication

• Form Factor: Standard Series 90-70 rack-mountable module

• Dimensions: Designed for installation in a Series 90-70 PLC rack

• Weight: 2.00 lbs (0.91 kg)

• Electrical Interface: High-density backplane connector and serial port connectors

• Internal Components: Includes the CPU, memory chips, communication controllers, and support circuitry

• Energy Storage: Relies on the system power supply; NV-RAM may use a capacitor or battery backup (check manual)

• Status Indicators: Features multiple LEDs for power, run status, and fault diagnostics

System Integration and Control Applications

The IC697CPX782 is designed for demanding applications in manufacturing, process control, and material handling. It executes control logic and manages I/O networks within the 90-70 system. This CPU can coordinate with various I/O modules and communication networks throughout a facility. For comprehensive plant solutions, it may operate alongside protective systems like the RMS-TSG-TZ-C Static Trip unit. It can also interface with monitoring devices such as the PR6423/128-110 vibration transducer.
