Overview and Function

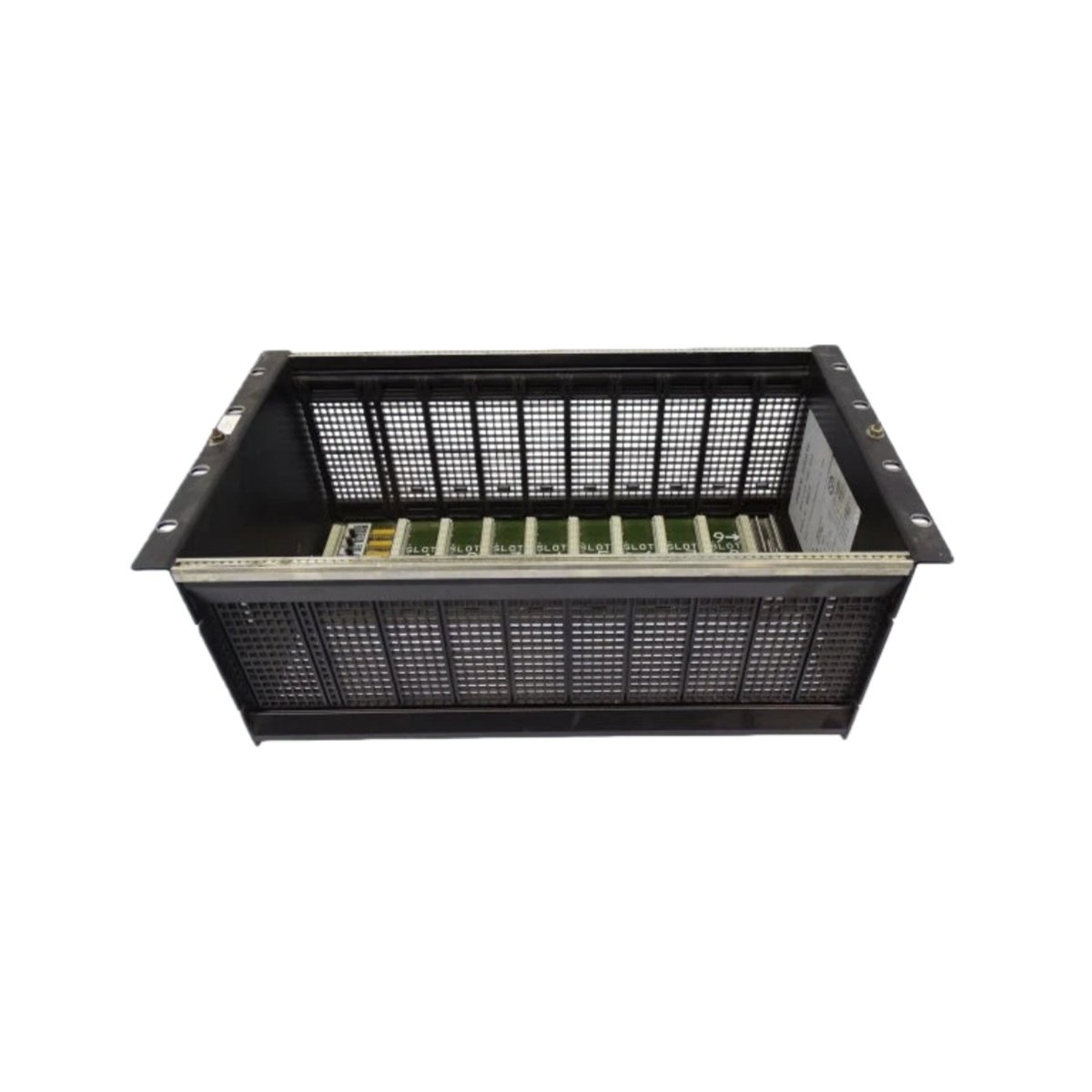

The GE IC697CHS791 is a robust 9-slot backplane rack for high-end PLC systems. This unit, part of the GE Fanuc legacy now under Emerson Automation, hosts multiple control modules. Consequently, it forms the physical and electrical backbone for a Series 90-70 PLC station. It securely connects up to nine I/O, communication, or processor modules simultaneously.
Power and Expansion Flexibility
This rack supports both AC and DC input power supplies for versatile installation. Furthermore, it features a dedicated expansion port for connecting a secondary rack via cable. This design allows for scalable system I/O capacity to meet complex application needs. Therefore, you can build a distributed control system from a centralized logic processor.
Detailed Technical Specifications
Engineered for industrial durability, this rack ensures reliable module interconnection. The following table details its comprehensive mechanical and electrical parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Emerson Automation (formerly GE Fanuc) |
| Model Number | IC697CHS791 |
| Series Platform | GE Series 90-70 Programmable Logic Controller |
| Product Category | PLC Backplane / Rack Assembly |
| Number of Module Slots | 9 |
| Voltage Input Compatibility | AC or DC (depends on installed power supply module) |
| I/O Bus Current Capacity | 0.5 Amps (supplied to modules via backplane) |
| Expansion Capability | Yes, via expansion port and cable to additional rack |
| Module Keying | Supported (mechanical keying to prevent module misinsertion) |
| Cooling | Passive convection (cooling fan not typically required) |
| Mounting Style | Standard 19-inch rack-mounting |
| Approximate Weight | 4.39 kg (9.69 lbs) |
| Primary Material | Heavy-gauge steel chassis |
| Backplane Connectors | 9 high-density, multi-pin connectors |
| Communication Bus | Integrated parallel bus for high-speed module communication |
| Operating Temperature | 0°C to 60°C (compatible with 90-70 system specs) |
| Storage Temperature | -40°C to 85°C |
| Typical Dimensions (H x W x D) | Standard 90-70 9-slot rack dimensions |
Design for Reliability and Safety
The rack incorporates a sturdy steel chassis for mechanical protection and EMI shielding. Moreover, its mechanical keying system prevents incorrect module installation. This feature safeguards your valuable modules and the entire system’s integrity. For complete power distribution protection within the cabinet, a device like the RMS-TSG-TZ-C static trip unit is recommended.
Application and Integration Value
The GE IC697CHS791 is essential for building medium to large Series 90-70 control systems. Its robust construction guarantees a stable platform for critical automation modules. Choosing this genuine rack ensures perfect electrical contact and alignment for all modules. Ultimately, it provides the reliable foundation required for high-performance industrial control applications.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
