Product Overview

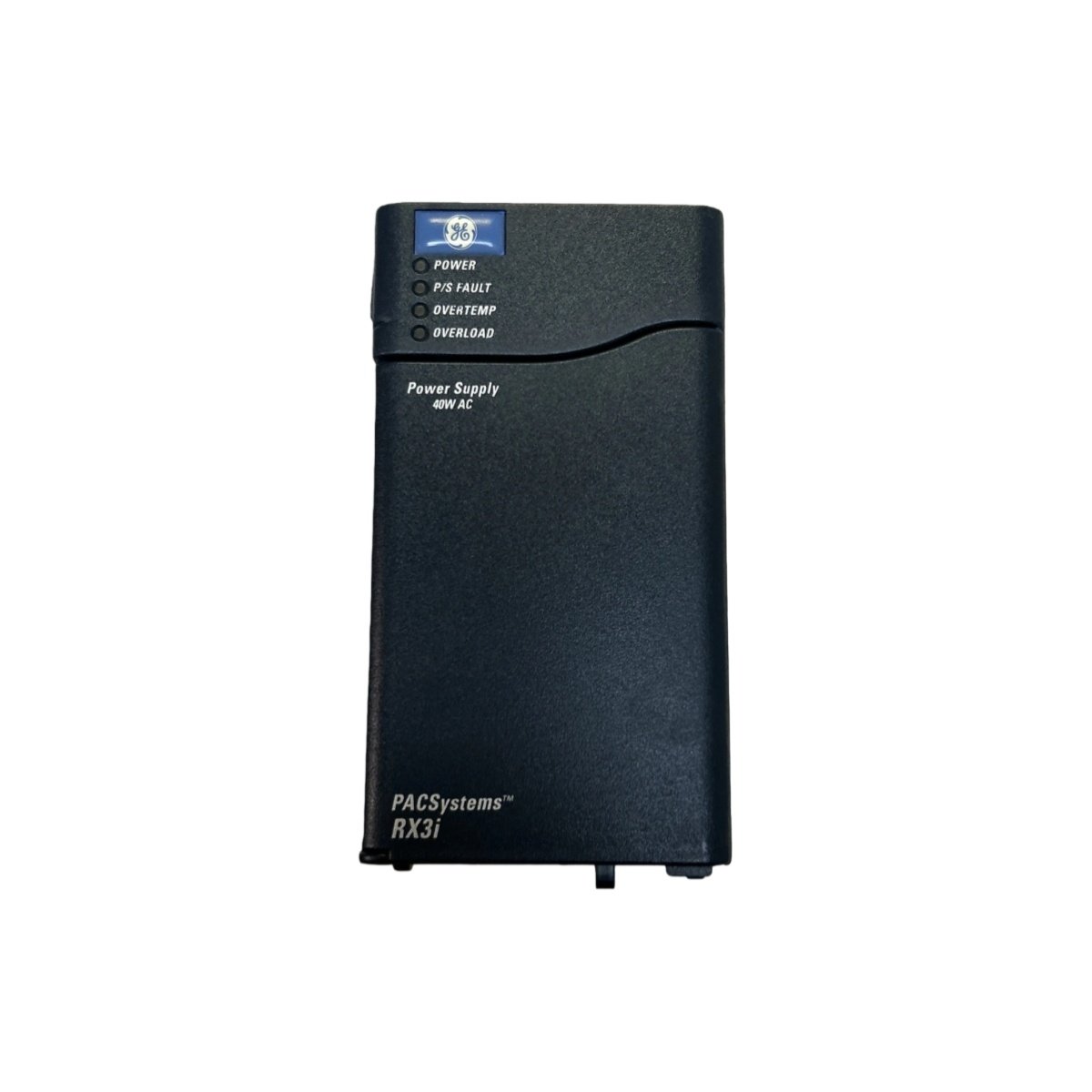

The GE IC695PSA040 functions as a universal base power supply for the PACSystem RX3i automation platform from GE Fanuc and Emerson Automation. This module provides reliable DC power to the backplane and connected I/O modules in industrial control applications. We engineered the IC695PSA040 to deliver stable, isolated power for demanding automation environments worldwide.

Technical Specifications

Key Features and Benefits

• Universal AC/DC Input: The IC695PSA040 accepts both AC and DC input voltages over a wide range. You therefore use the same power supply in facilities with different power systems without modification.

• Triple Output Voltages: This module provides +5.1 VDC for logic circuits, +24 VDC for relay outputs, and +3.3 VDC for internal use. Consequently, it powers all RX3i module types from a single supply unit.

• High Isolation for Safety: Input-to-backplane isolation of 250 VAC continuous protects sensitive electronics. This isolation exceeds industrial standards for safe operation in control panels.

• Visual Status Indication: Front-panel LEDs show power OK and fault conditions at a glance. You quickly verify proper operation during startup and troubleshooting.

• Redundancy Capable: You install up to four power supplies in a single rack for redundant configurations. Therefore, critical applications continue operating even if one supply fails.

Detailed Functional Description

The primary function of the GE IC695PSA040 involves converting incoming AC or DC power into the regulated DC voltages required by RX3i modules. Specifically, it plugs into the leftmost slots of a universal backplane and distributes power through the bus connectors. The +5.1 VDC supply powers all module logic circuits, while the +24 VDC supply provides power for relay outputs and field-side circuits. The +3.3 VDC output supports internal processor requirements. The module includes filtering and regulation to ensure clean, stable power for reliable PLC operation.

Output Specifications

We designed the IC695PSA040 with precise output regulation for sensitive electronics:

The total output power cannot exceed 40 Watts across all outputs combined.

Input Power Characteristics

The GE IC695PSA040 accepts worldwide power inputs:

• AC Operation: 85-264 VAC, 47-63 Hz, 70 VA maximum

• DC Operation: 100-300 VDC, 70 W maximum

• Inrush Current: <30 A peak @ 264 VAC cold start

• Hold-up Time: >20 ms at nominal input, full load

• Efficiency: >80% typical at full load

Protection Features

The IC695PSA040 includes comprehensive protection for reliable operation:

• Overcurrent Protection: Electronic current limiting with automatic recovery

• Overvoltage Protection: Crowbar protection on +5.1 V output

• Overtemperature Protection: Thermal shutdown with hysteresis

• Short Circuit Protection: Continuous protection with no damage

• Input Transient Protection: Metal oxide varistors and filtering

Installation and Configuration

Engineers install the IC695PSA040 in the dedicated power supply slots of an RX3i universal backplane. The process involves:

1. Ensuring the backplane is properly mounted and grounded

2. Inserting the module into the leftmost slot(s) until latched

3. Connecting AC or DC power to the terminal block

4. Applying power and verifying green LED illumination

5. Installing additional supplies for redundancy if required

The module requires no configuration; it automatically provides power when installed.

Mechanical Details

The GE IC695PSA040 features a rugged metal enclosure for industrial durability. Its front panel provides:

• Removable 3-position terminal block for input power

• Green LED for power OK indication

• Red LED for fault indication

• Label with model and rating information

• Locking latch for secure installation

The module includes shielding for electromagnetic compatibility in industrial environments.

Compatibility Information

The IC695PSA040 operates with the following RX3i components:

• Universal Backplanes (IC695CHSxxx series)

• All RX3i CPU modules

• All RX3i I/O and communication modules

• Requires universal backplane; not compatible with standard backplanes

Common Industrial Applications

The GE IC695PSA040 provides reliable power for RX3i systems across industries:

Why Choose This Power Supply?

Selecting the GE IC695PSA040 means choosing a reliable, certified power source for your RX3i control system. You power all RX3i modules from a single supply with its triple-output design, simplifying system architecture. The universal input accepts any worldwide power voltage, reducing spare parts requirements for global installations. High isolation protects sensitive electronics from ground loops and transients. With redundancy capability, you build fault-tolerant systems for critical processes. For PACSystem RX3i applications requiring dependable power, the IC695PSA040 delivers the performance and quality you expect from GE.
