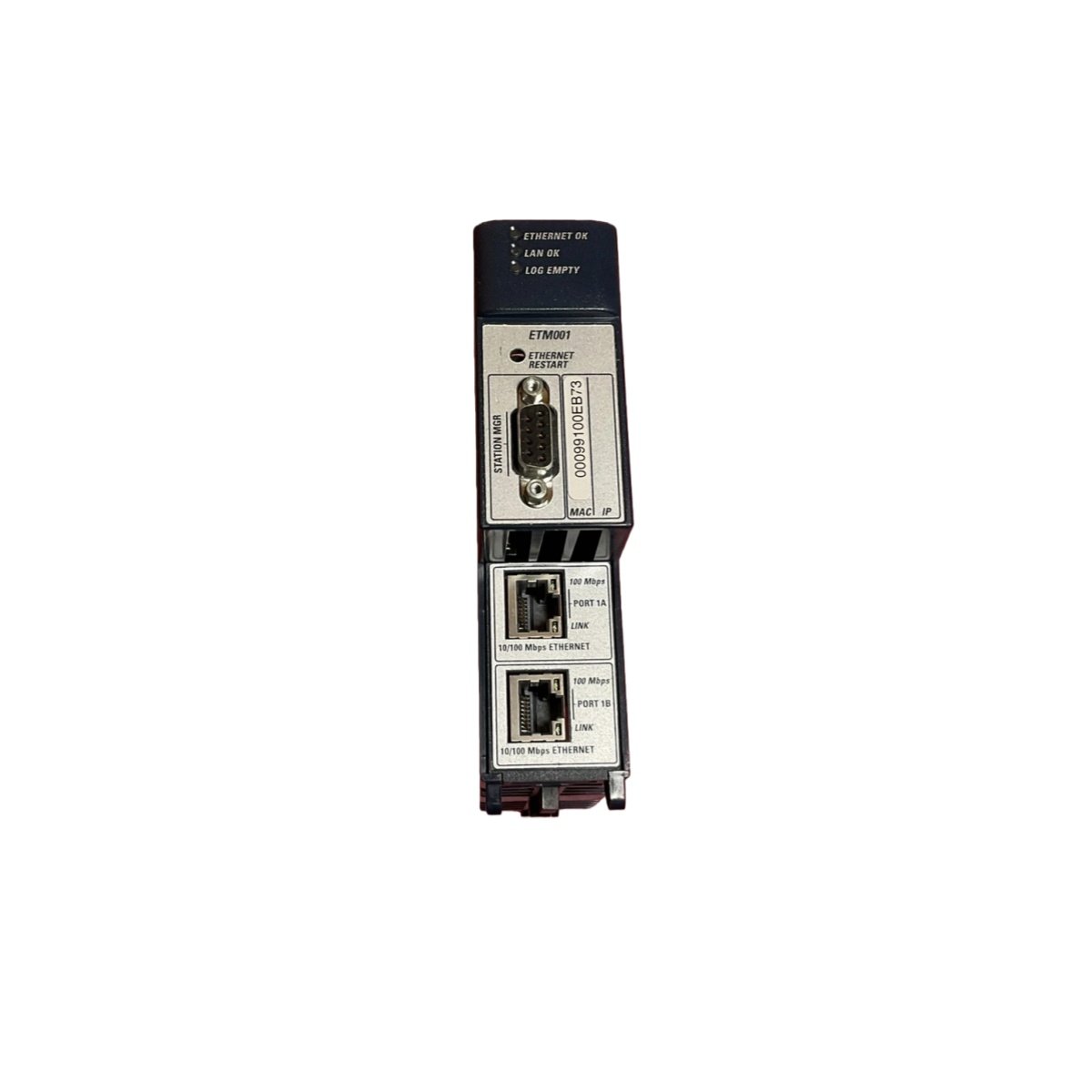

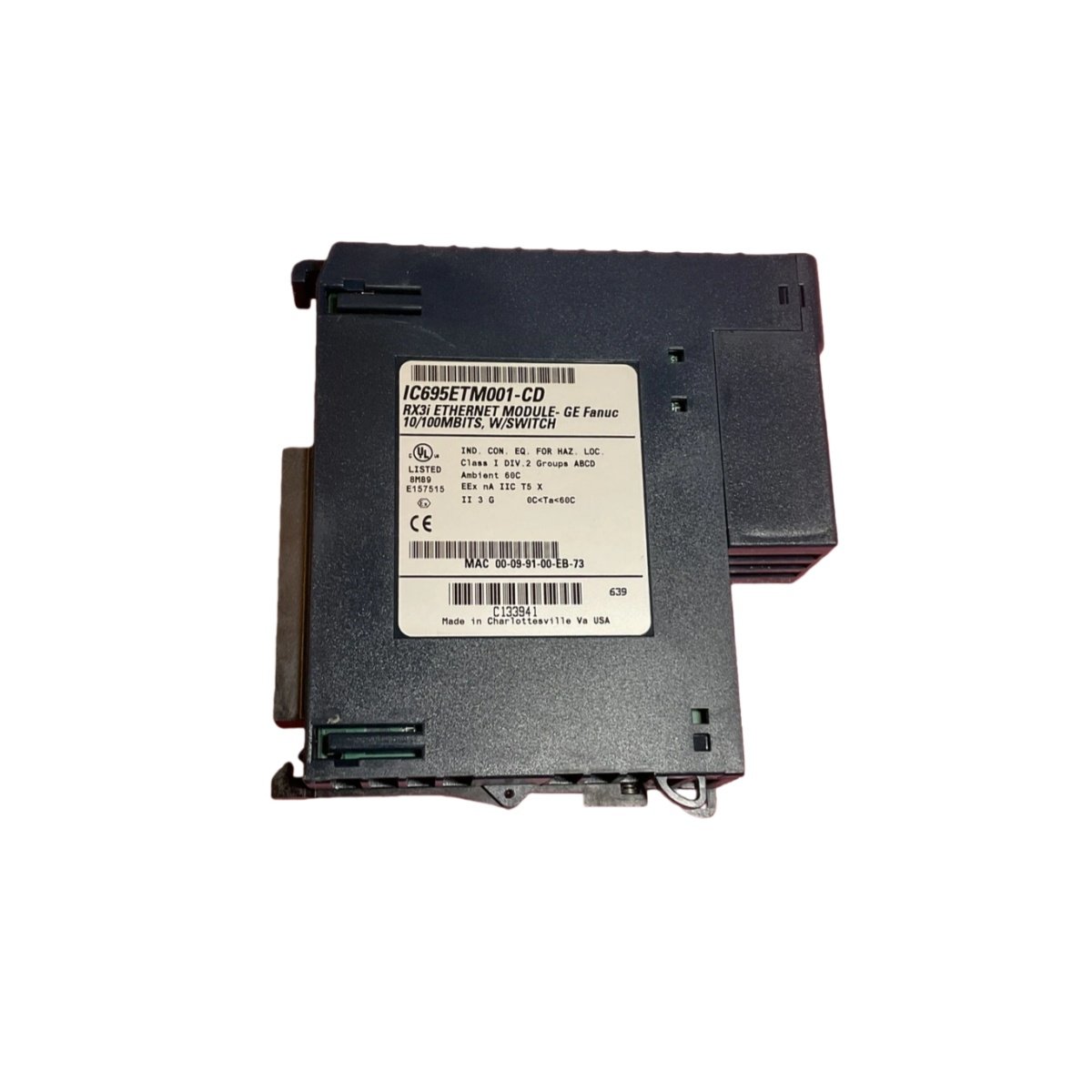

The GE IC695ETM001 serves as a high-performance Ethernet communication module for RX3i PACSystems control platforms. We engineer this interface module to connect automation controllers with plant networks and enterprise systems. Its advanced design includes an embedded Ethernet switch for simplified network topology and reduced component count. This module enables reliable data exchange between RX3i controllers and a wide range of Ethernet-based devices.

Key Features and Communication Benefits

The GE IC695ETM001 delivers robust network connectivity through its 200 MHz Ethernet processor and dual auto-sensing ports. This module handles communication tasks independently, offloading network traffic from the main controller processor. Consequently, it maintains fast response times even during heavy network communication loads. Furthermore, the embedded switch allows daisy-chaining multiple Ethernet nodes without external switching hardware.

Detailed Technical Specifications

Manufacturers construct the GE IC695ETM001 using industrial-grade components for reliable operation in demanding automation environments. The module measures approximately 130 millimeters in height, 40 millimeters in width, and 100 millimeters in depth. Its compact form factor occupies a single RX3i rack slot while providing comprehensive Ethernet connectivity. Additionally, the module features status indicators for network activity, link status, and module health.

Dual Ethernet Port Configuration

The IC695ETM001 features two independent 10BaseT/100BaseTX Ethernet ports with auto-sensing RJ-45 connectors. Both ports automatically detect and negotiate the correct speed and duplex mode for connected devices. This dual-port design provides flexibility for various network topologies and redundancy schemes. Therefore, engineers can implement star, line, or ring network configurations to suit application requirements.

Embedded Switch Functionality

Engineers designed the GE IC695ETM001 with an integrated two-port Ethernet switch for simplified networking. This embedded switch allows daisy-chaining multiple Ethernet nodes directly from the module’s ports. Consequently, installations can connect controllers in a line topology without requiring separate external switches. This feature reduces component count, panel space, and overall system cost.

Station Manager Serial Port

The GE IC695ETM001 includes a dedicated Station Manager serial port for local configuration and diagnostics. This RS-232 DCE port uses a standard 9-pin female D-connector for easy connection to programming devices. It operates at selectable baud rates from 1200 to 115,200 bps for flexible communication speeds. Therefore, technicians can access module status and perform diagnostics even without network connectivity.

Network Protocol Support

The IC695ETM001 fully complies with IEEE 802.2 and 802.3 Ethernet standards for broad compatibility. It implements Logical Link Control Class I and CSMA/CD medium access control at 10 or 100 Mbps speeds. The module supports industry-standard Ethernet protocols for seamless integration with plant networks. Consequently, it communicates with HMIs, SCADA systems, and enterprise networks using open standards.

RX3i Platform Integration

The GE IC695ETM001 integrates seamlessly into RX3i PACSystems through the standard backplane interface. It communicates with the main processor while handling all Ethernet protocol processing independently. The module appears in the system configuration for easy setup and diagnostics access. Therefore, it functions as an integral component of comprehensive RX3i automation solutions.

Industrial Applications and Use Cases

Manufacturing facilities rely on the GE IC695ETM001 for connecting RX3i controllers to plant-wide networks. Process plants use this module to link control systems with operator workstations and data historians. Material handling applications employ it for communication between controllers and warehouse management systems. This Ethernet interface enables seamless data flow in all these applications.

Installation Guidelines and Best Practices

Proper installation of the GE IC695ETM001 ensures optimal network performance and system reliability. First, insert the module into an available RX3i rack slot and secure it with the locking mechanism. Next, connect Ethernet cables to the RJ-45 ports using appropriate shielded cabling for industrial environments. Finally, configure the IP address and communication parameters through the programming software before system startup.

Maintain System Performance with Genuine GE Components

Choosing the genuine GE IC695ETM001 guarantees reliable Ethernet communication and network compatibility. Aftermarket modules may lack the embedded switch functionality or protocol support of authentic GE designs. Therefore, always source this Ethernet interface module from authorized GE distributors and partners. For additional automation components, explore our selection of control modules similar to the RMS-TSG-TZ-C Static Trip Unit.
