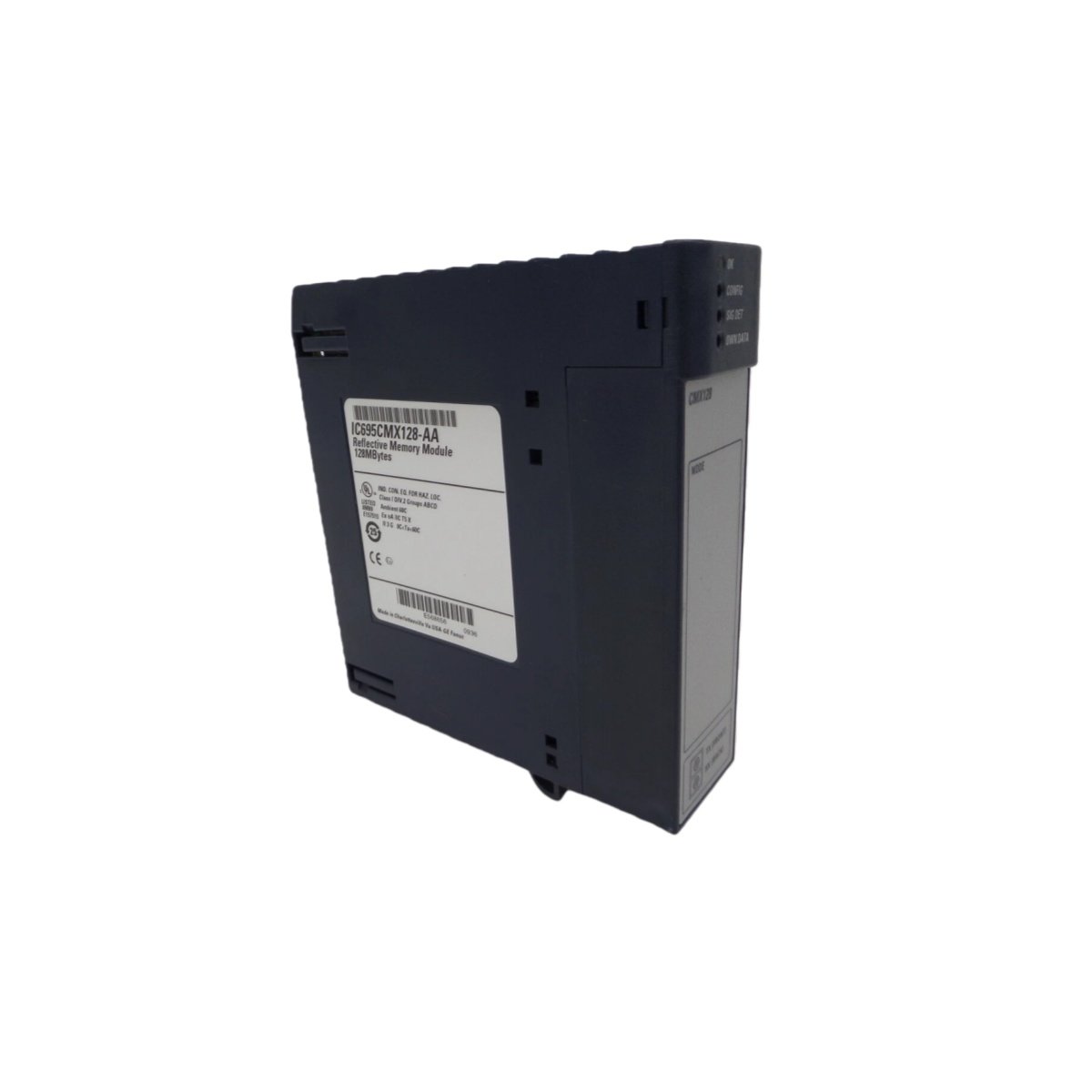

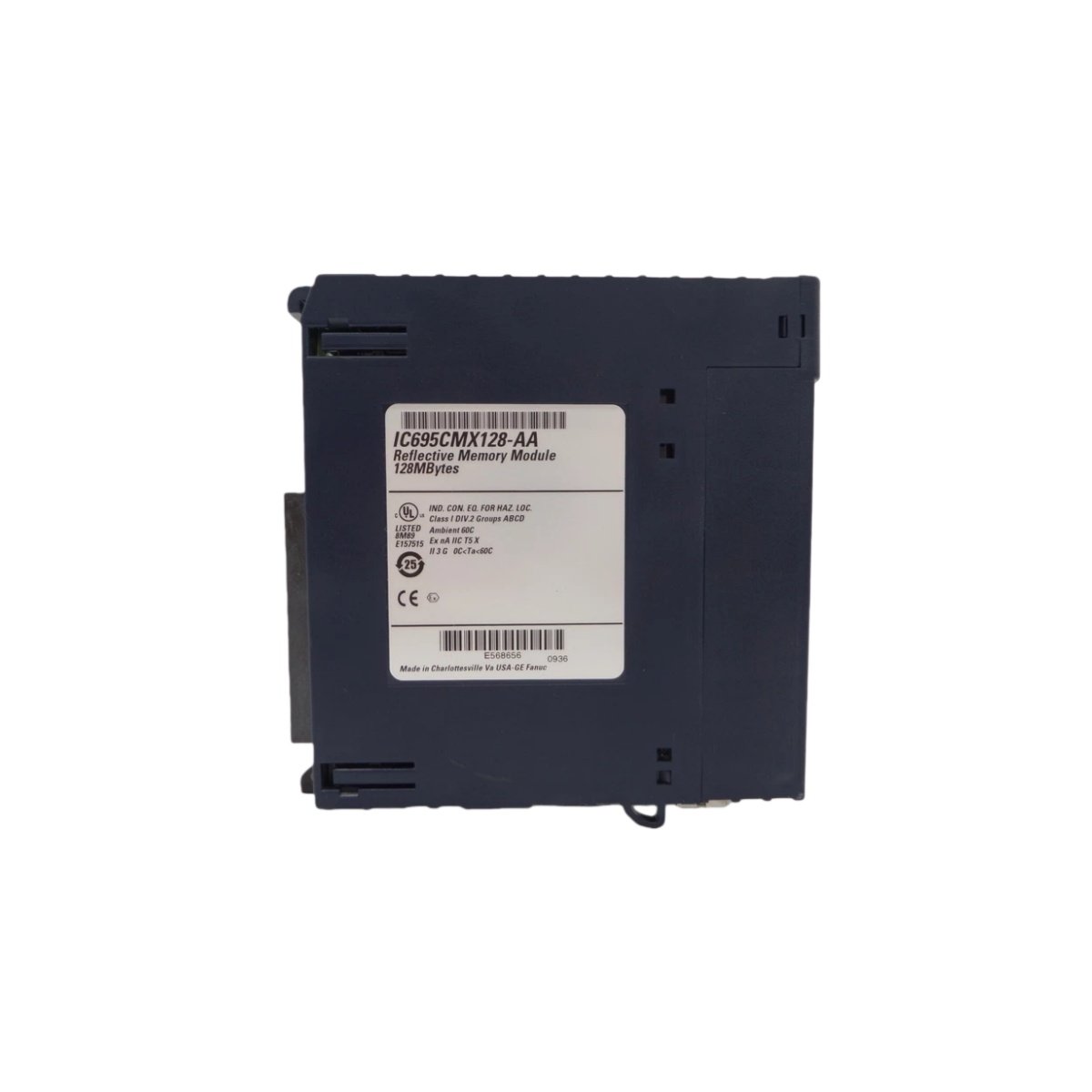

The GE IC695CMX128 functions as a specialized high-speed communication module for RX3i PACSystems control platforms. We design this Control Memory Xchange module to enable deterministic data sharing between multiple controllers. Its dedicated architecture provides ultra-fast data transfer for synchronized multi-processor applications. This module allows RX3i systems to share critical data with minimal latency for coordinated control.

Key Features and Communication Benefits

The GE IC695CMX128 delivers exceptional performance through its dedicated memory exchange architecture and high-speed interface. This module establishes a direct communication link between multiple RX3i controllers for real-time data sharing. Consequently, separate control systems can coordinate actions with microsecond-level synchronization. Furthermore, the module operates independently of the main backplane for deterministic performance regardless of processor load.

Detailed Technical Specifications

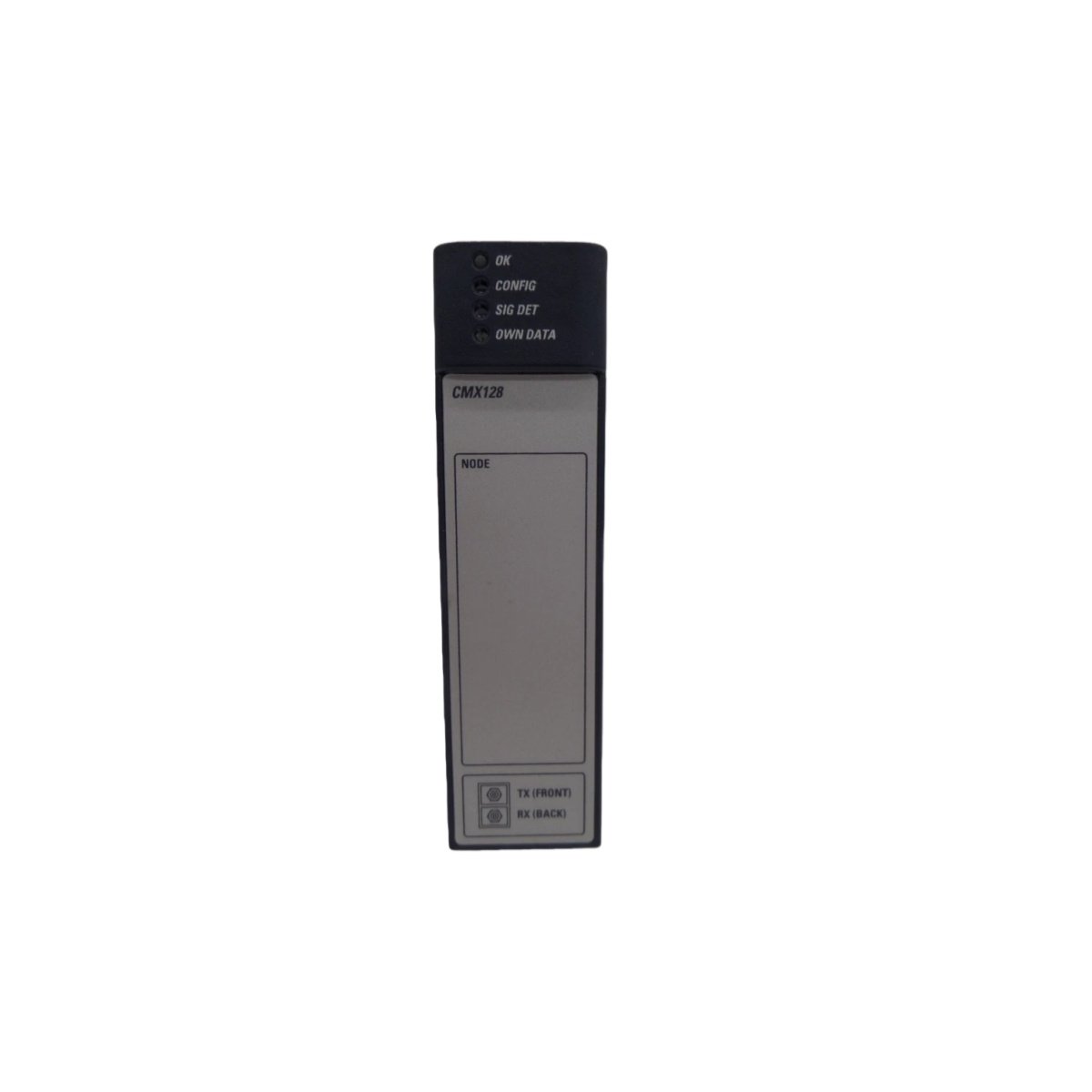

Manufacturers construct the GE IC695CMX128 using industrial-grade components for reliable operation in demanding automation environments. The module measures approximately 130 millimeters in height, 40 millimeters in width, and 100 millimeters in depth. Its compact form factor occupies a single RX3i rack slot while providing sophisticated communication capabilities. Additionally, the module features status indicators for link activity and module health monitoring.

Control Memory Xchange Technology

The IC695CMX128 implements GE’s proven Control Memory Xchange technology for high-speed controller linking. This technology creates a shared memory space accessible by multiple RX3i processors simultaneously. Each controller reads and writes data to this shared memory for instant information exchange. Therefore, multiple processors coordinate complex tasks without communication delays or network bottlenecks.

System Integration and Topology

Engineers designed the GE IC695CMX128 for flexible network topologies suiting various application requirements. Modules connect in peer-to-peer configurations for direct communication between two controllers. Alternatively, multi-drop networks link multiple RX3i systems for coordinated control across large installations. This flexibility allows system designers to optimize the network for their specific application needs.

Deterministic Performance Characteristics

The GE IC695CMX128 guarantees deterministic data transfer independent of main processor scan times. Its dedicated hardware handles all memory exchange operations without burdening the controller CPU. Updates occur at consistent intervals for predictable timing in time-critical applications. Consequently, engineers can rely on consistent data freshness for coordinated motion and process control.

RX3i Platform Compatibility

The IC695CMX128 integrates seamlessly into the RX3i PACSystems platform through standard rack mounting. It communicates with the main processor through the backplane while maintaining its independent data exchange. The module appears in the system configuration for easy programming and diagnostics access. Therefore, it functions as an integral component of comprehensive RX3i automation solutions.

Industrial Applications and Use Cases

Manufacturing facilities rely on the GE IC695CMX128 for applications requiring tight coordination between multiple controllers. Large assembly lines use this module to synchronize independent machine sections for continuous production. Material handling systems employ it to coordinate multiple conveyors and sortation controllers seamlessly. This memory exchange module enables true multi-processor coordination in all these applications.

Installation Guidelines and Best Practices

Proper installation of the GE IC695CMX128 ensures optimal communication performance and system reliability. First, insert the module into an available RX3i rack slot, securing it with the locking mechanism. Next, connect the memory exchange cables to the module’s dedicated ports following the network topology. Finally, configure the shared memory mapping through the programming software before placing the system in service.

Maintain System Performance with Genuine GE Components

Choosing the genuine GE IC695CMX128 guarantees deterministic performance and reliable multi-controller coordination. Aftermarket modules cannot match the precise timing characteristics of authentic GE designs. Therefore, always source this Control Memory Xchange module from authorized GE distributors and partners. For additional automation components, explore our selection of control modules similar to the RMS-TSG-TZ-C Static Trip Unit.
