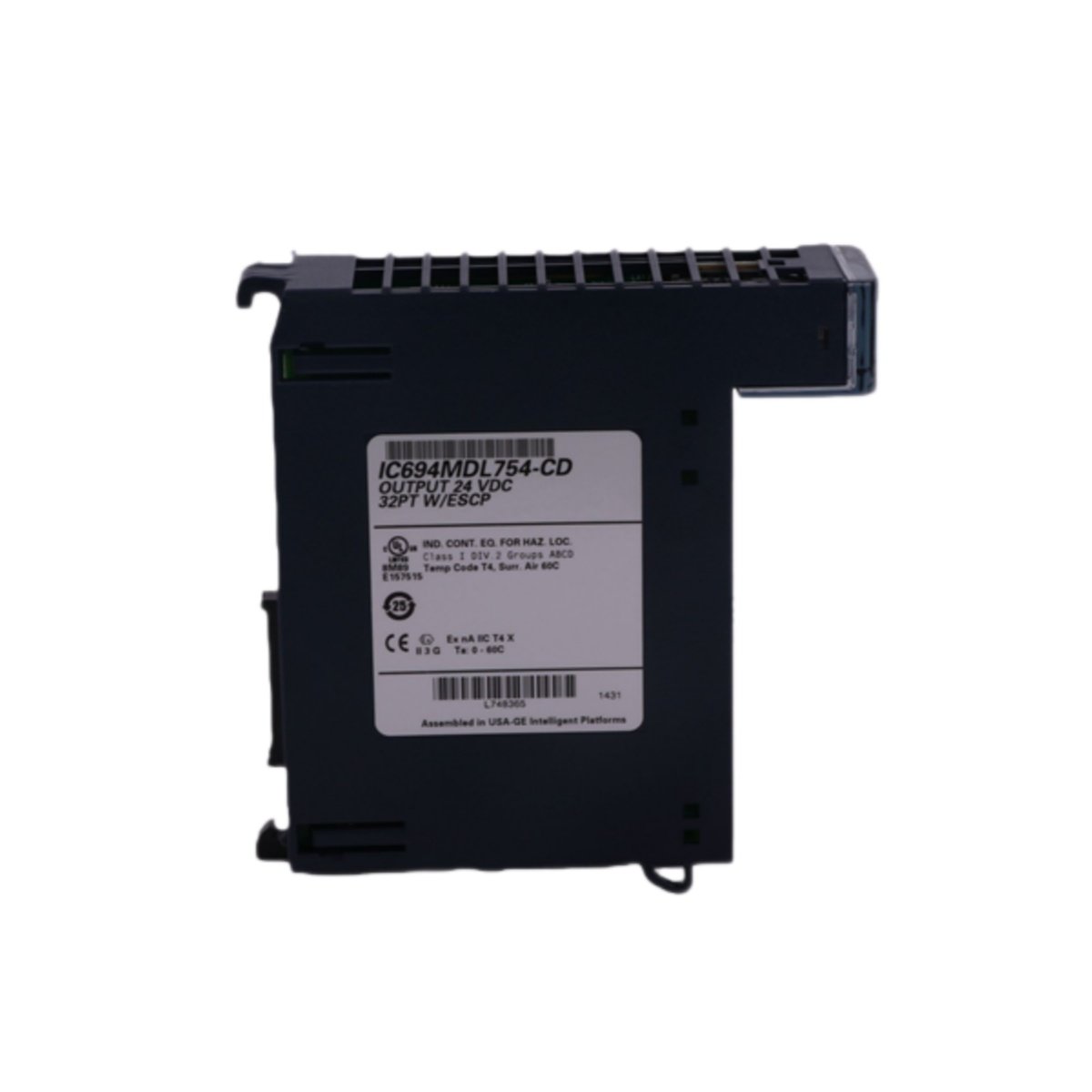

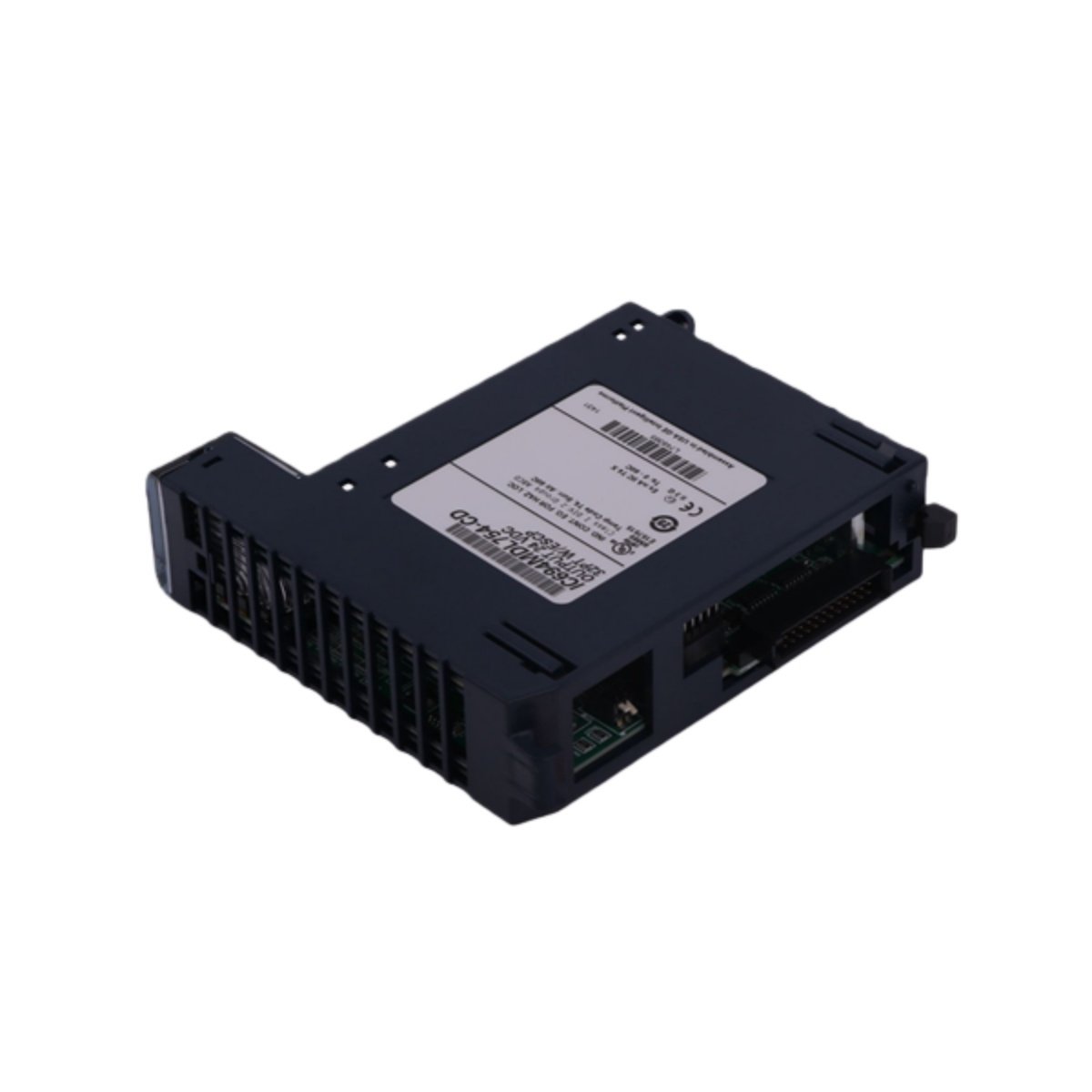

The IC694MDL754 is a high-density discrete output module for the PACSystem RX3i platform. This unit provides thirty-two independent output channels to control external devices like valves and relays. It operates on a 12/24 VDC nominal voltage with robust protective features for reliable automation.
Hardware Configuration and Electrical Design
This GE RX3i module organizes its thirty-two channels into two fully isolated groups of sixteen. Each channel actively sources current with a positive logic configuration for straightforward wiring. The design includes comprehensive safeguards against short-circuits, overcurrent, and overtemperature conditions. Furthermore, these protections feature auto-recovery to maintain system uptime after a fault clears.
Detailed Technical Parameters
The following table lists the precise specifications for the IC694MDL754 module from GE, now part of Emerson Automation.
| Parameter | Specification | |
|---|---|---|
| Manufacturer & Series | GE (now Emerson) | PACSystem RX3i |
| Module Model | IC694MDL754 | |
| Module Type | 32-Point Discrete DC Output | |
| Nominal Voltage | 12 / 24 VDC | |
| Operating Voltage Range | 10.2 – 30.0 VDC | |
| Output Current per Point | 0.75 Amps | |
| Number of Channels | 32 | |
| Isolated Output Groups | 2 Groups (16 channels each) | |
| Max. Response Time (On/Off) | 0.5 Milliseconds | |
| On-State Voltage Drop | 0.3 VDC (max) | |
| Off-State Leakage Current | 0.1 mA (max) | |
| Inrush Current Rating | 3.0 Amps for 10 ms | |
| Backplane Current Draw | 300 mA max from 5V bus | |
| Protection Features | Short-Circuit, Overcurrent, Overtemperature (Auto-Recovery) | |
| Isolation Rating | 250 VAC Continuous (1500 VAC for 1 min) | |
| Compatible Terminal Blocks | IC694TBB032 (Box) or IC694TBS032 (Spring) | |
| Status Indicators | 32 LEDs (One per Output) | |
| Required CPU Firmware | RX3i Release 2.90 or greater |
Integration and Application
You can install the IC694MDL754 into any available slot on a local or remote RX3i rack. It connects to field devices using compatible box-style or spring-clamp terminal blocks. This module is ideal for controlling solenoids, indicators, and other DC loads in industrial settings. Its fast response time and solid-state design ensure precise and reliable machine control.
Details
| Weight | 1.8 kg |
|---|---|
| Dimensions | 76 × 203 × 102 mm |
