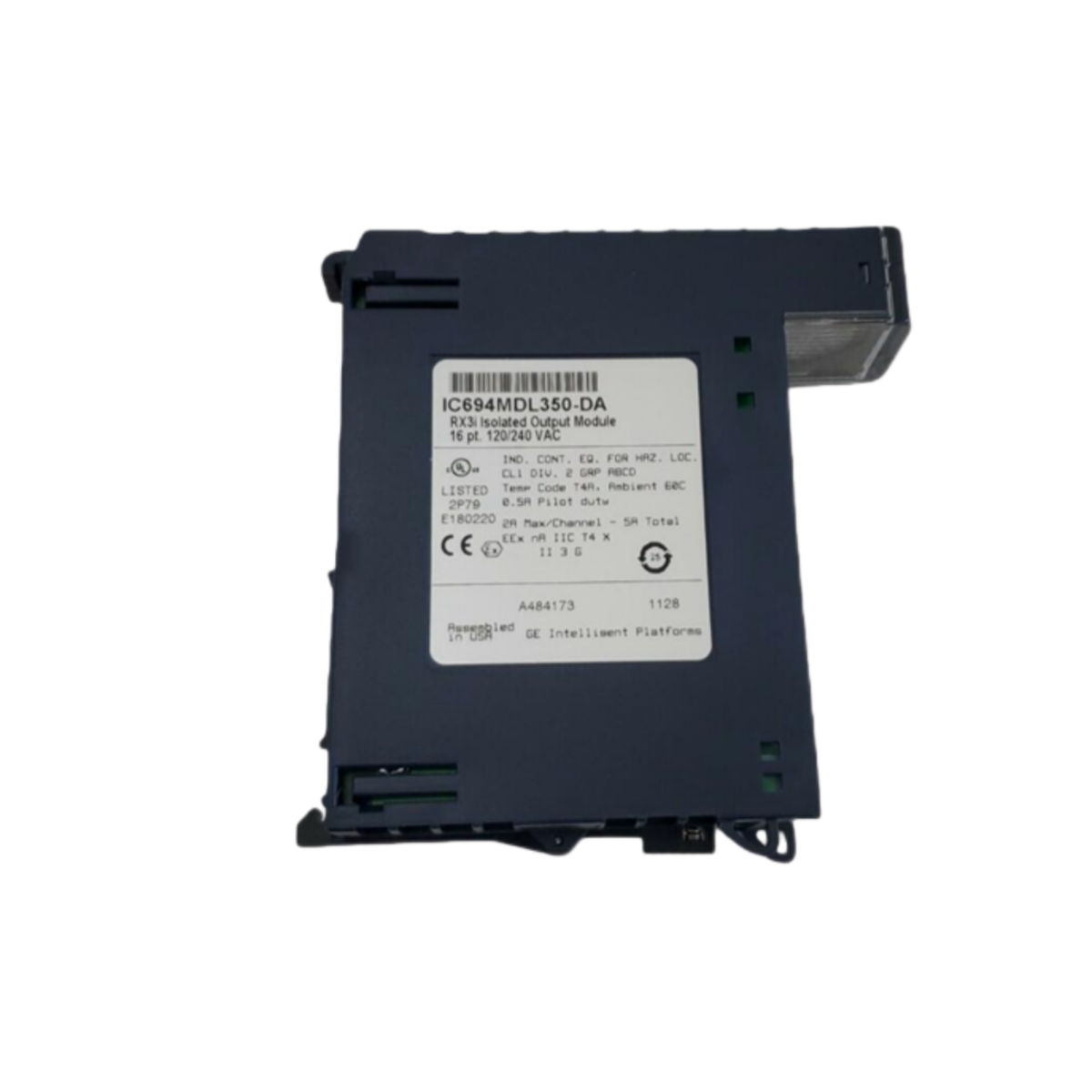

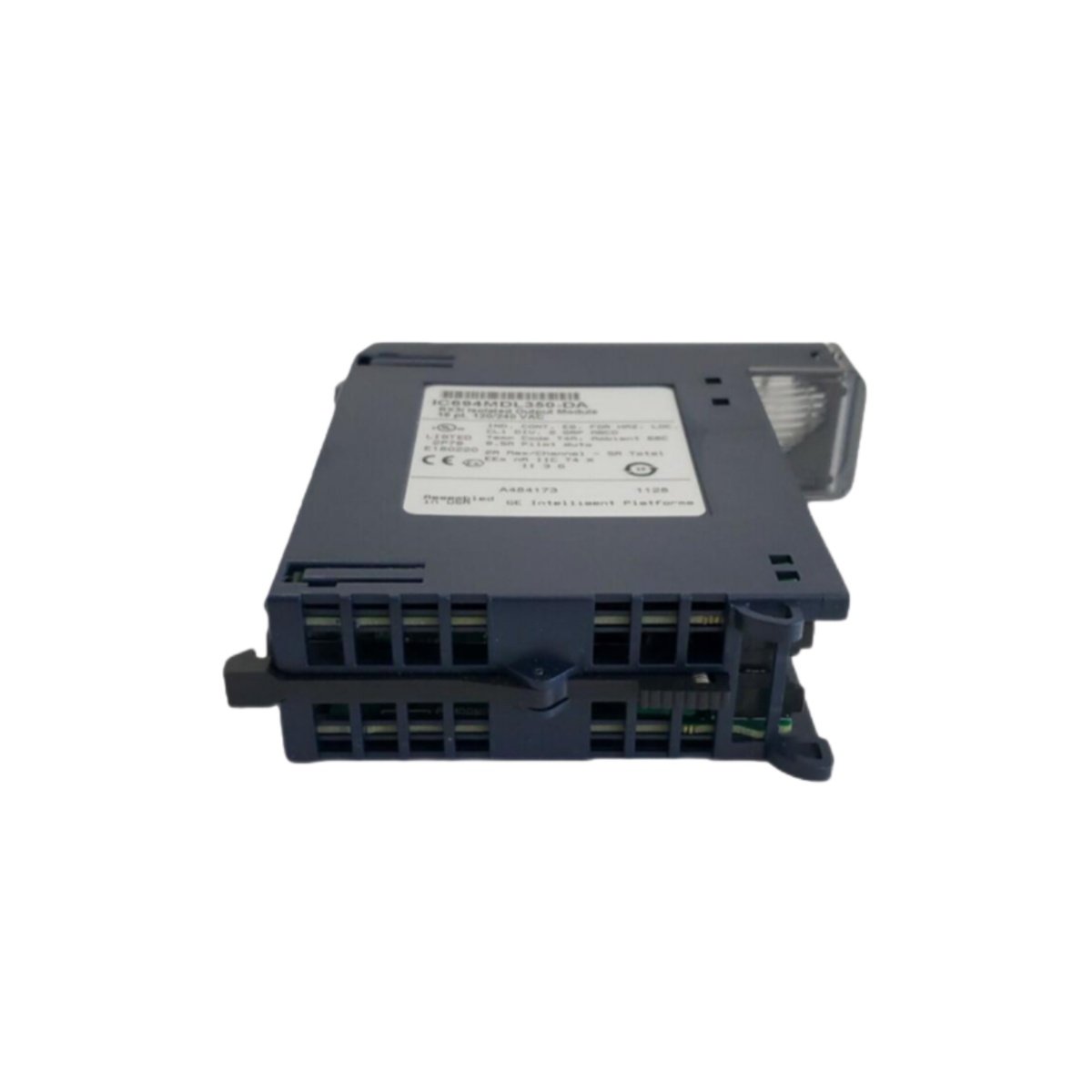

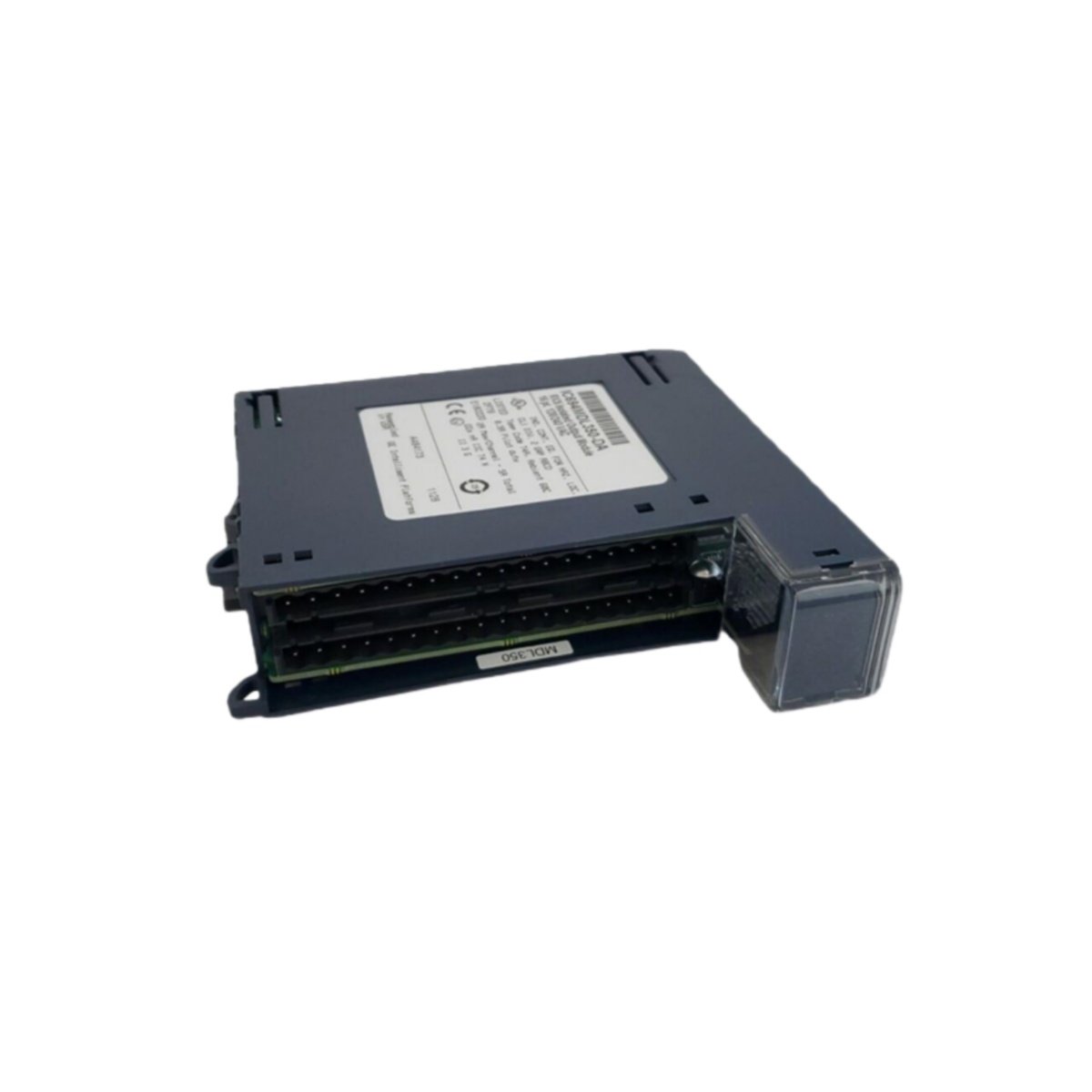

The GE IC694MDL350 functions as a discrete output module within the RX3i PACSystem, formerly produced by GE Intelligent Platforms and now part of Emerson Automation. This module drives on/off control of 120 or 240 VAC field devices such as motor starters, solenoids, and pilot lights. Engineers select the IC694MDL350 for applications requiring high-voltage AC output switching with individual channel isolation.

High-Voltage Output and Channel Configuration

We equip the GE IC694MDL350 with sixteen individually isolated output channels, each capable of switching voltages from 74 to 265 VAC at 47 to 63 Hz. The module operates at nominal voltages of 120 or 240 VAC, providing flexibility for global control system designs. Each output delivers a maximum current of 2.0 Amperes at 30 degrees Celsius, or 1.0 Ampere at 60 degrees Celsius, accommodating a wide range of industrial loads.

• Output Channels: 16 individually isolated discrete outputs.

• Voltage Range: 74 to 265 VAC, 47 to 63 Hz (120/240 VAC nominal).

• Output Current: 2.0 A max at 30°C, 1.0 A max at 60°C per channel.

• Inrush Current: 20 Amps per cycle for high-starting-load devices.

• Isolation: Optical and channel-to-channel isolation at 250 V continuous, 1500 VAC for 1 minute.

Physical Specifications and Environmental Durability

The IC694MDL350 weighs approximately 0.37 kg (0.81 lbs), offering a lightweight solution for high-density control panels. This module operates reliably in temperatures from 0 to 60 degrees Celsius and withstands storage conditions from -40 to 85 degrees Celsius. Additionally, the unit functions in humidity levels ranging from 5 to 95 percent non-condensing, making it suitable for diverse industrial environments.
