Overview

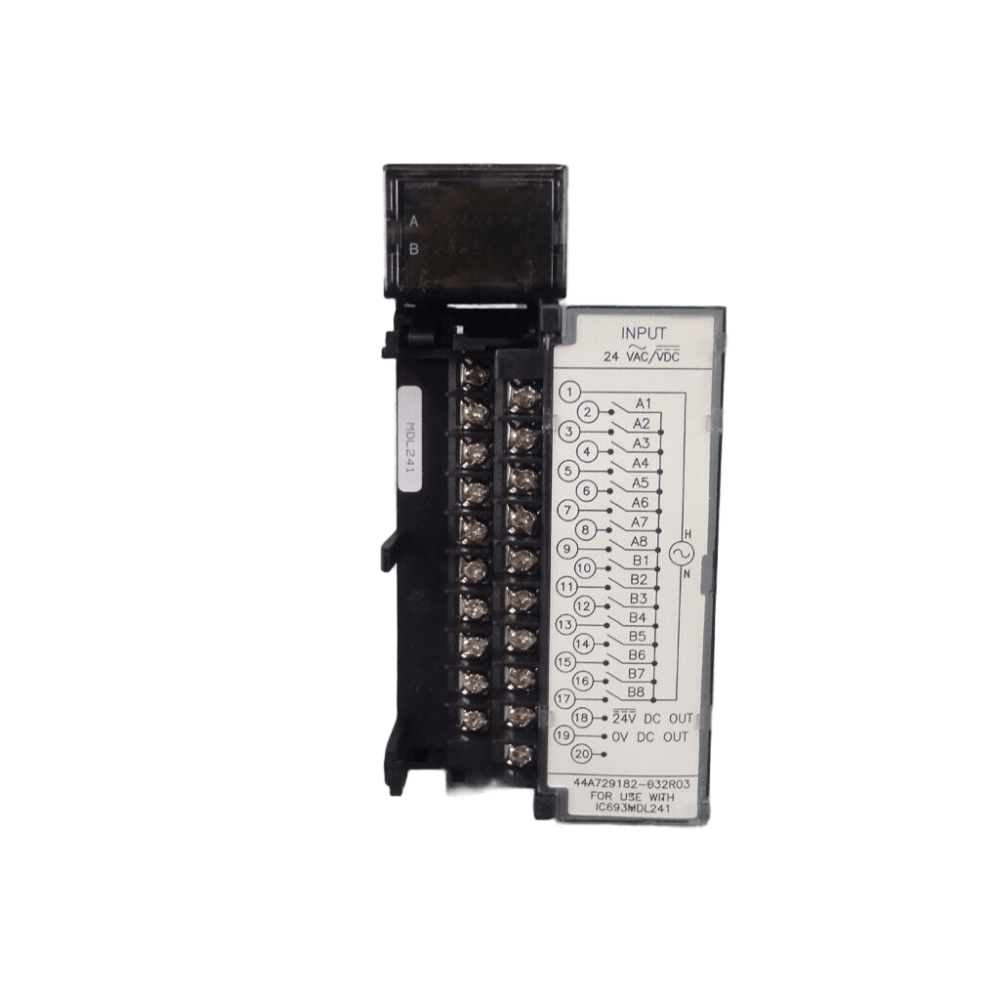

The GE IC693MDL241 is a 24 Volt AC/DC Positive/Negative Logic Input Module for the Series 90-30 PLC. It provides 16 input points with a single common power input terminal and supports both AC and DC signals. The module accommodates positive or negative logic in DC mode, making it flexible for a wide range of field devices, including pushbuttons, limit switches, and electronic proximity sensors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 24 V AC / 24 V DC |
| Input Voltage Range | 0–30 V DC or 0–30 V AC, 50/60 Hz |
| Inputs per Module | 16 (one group with a single common terminal) |
| Isolation | 1500 V between field side and logic side |
| Input Current | 7 mA typical at rated voltage |
| Input Characteristics |
|
| On-state Response Time | 12 ms typical |
| Off-state Response Time | 28 ms typical |
| Power Consumption (5V) | 80 mA (all inputs on) from 5 V backplane bus |
| Power Consumption (24V) | 125 mA from isolated 24 V backplane bus or user-supplied power |
Applications
- Series 90-30 PLC input expansion
- Integration with pushbuttons, limit switches, and proximity sensors
- Industrial automation requiring AC/DC input flexibility and isolated signals
