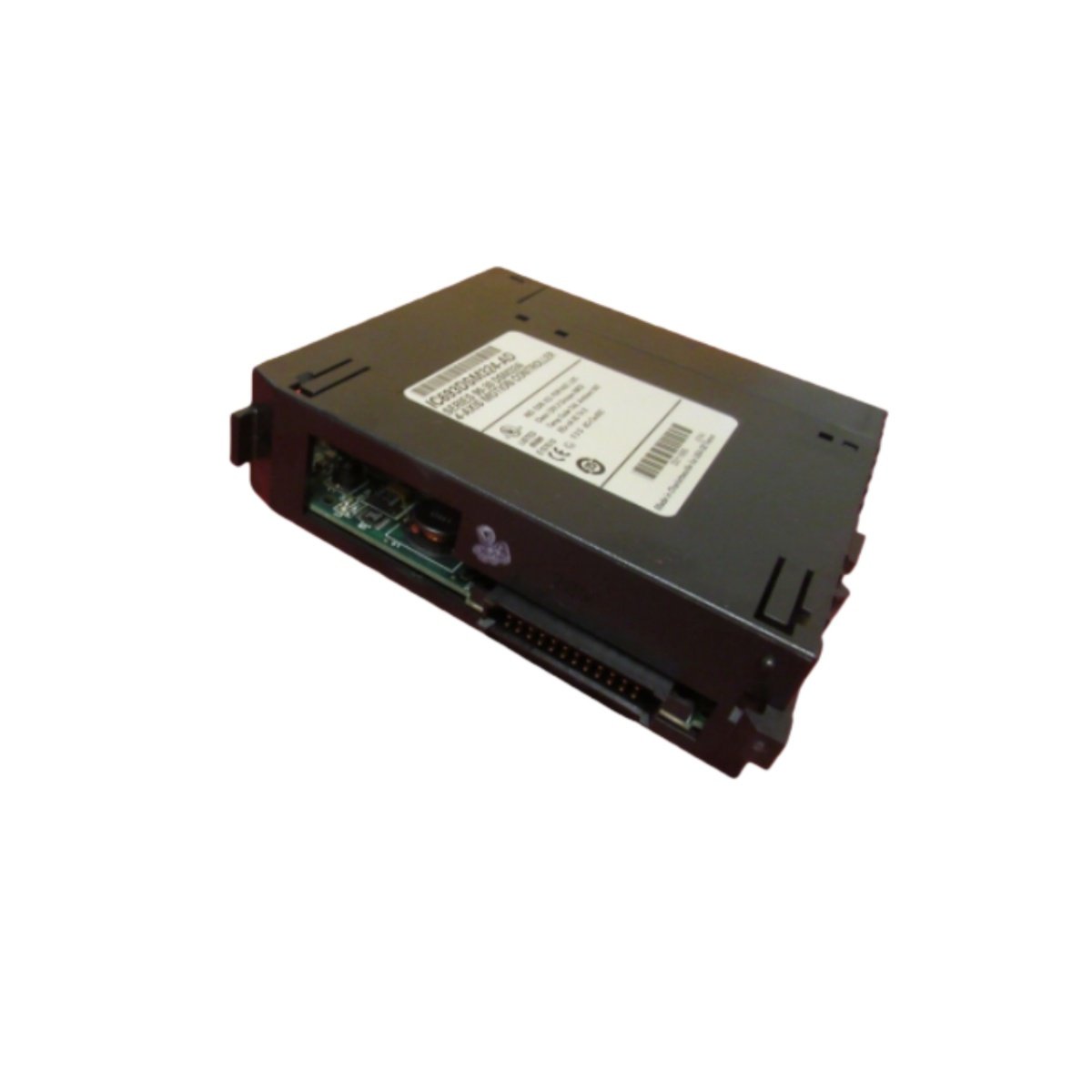

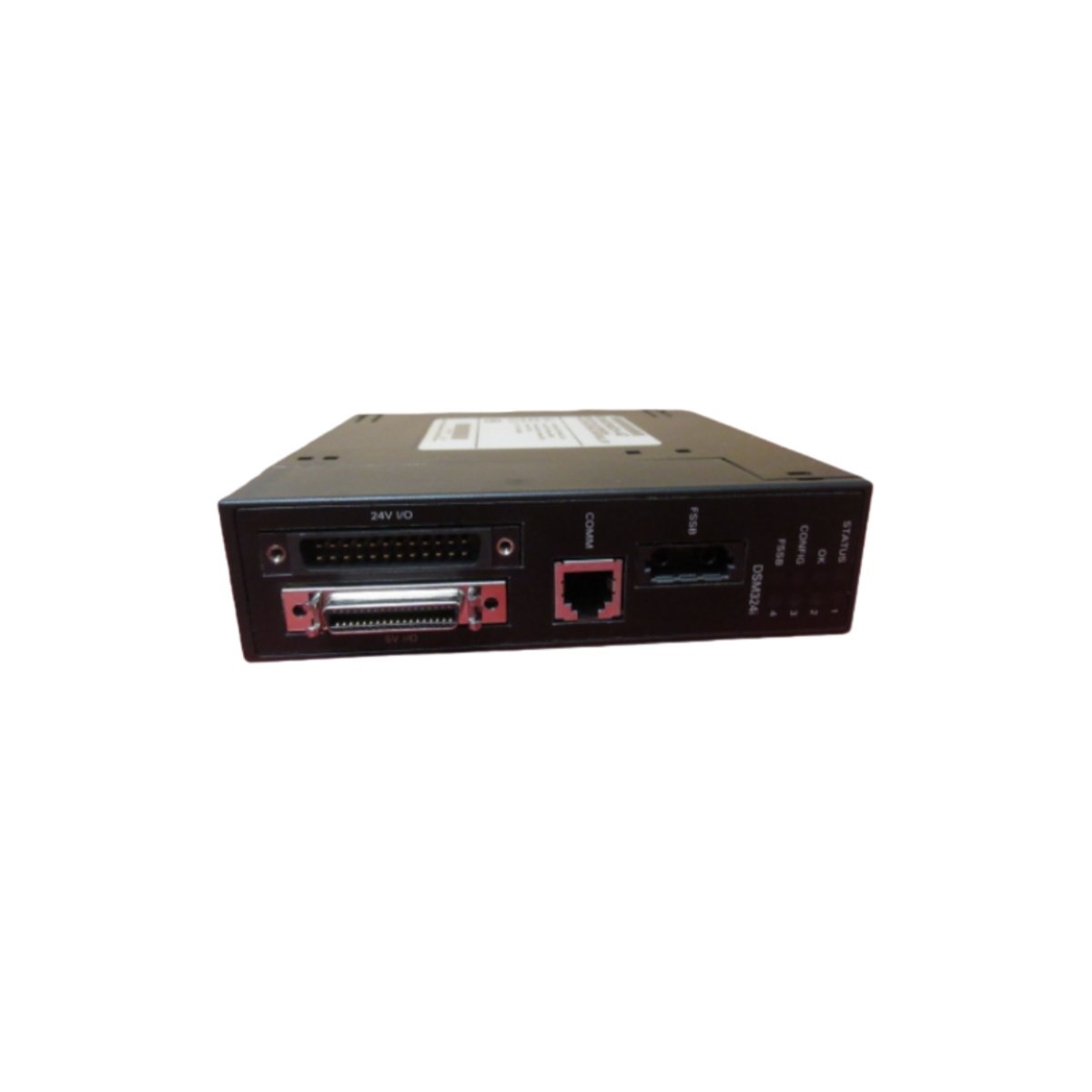

The GE IC693DSM324 functions as a dedicated four-axis motion controller for Series 90-30 PLC systems. This module integrates directly with the host controller for precise motion and position management. It supports both Standard operating mode and Follower mode for versatile motion applications. The IC693DSM324 works seamlessly with ?i, ?HVi, ?i, and ?HVi series digital servo systems. Engineers utilize this module for coordinated multi-axis control in complex machinery.

Technical Specifications and Physical Characteristics

Precise technical specifications enable proper integration of the GE IC693DSM324 into motion control applications. The module’s compact design fits into a single slot within Series 90-30 racks.

Advanced Motion Control Capabilities

The IC693DSM324 delivers sophisticated motion control directly from the Series 90-30 platform. It manages four axes simultaneously for coordinated multi-axis applications. Standard mode provides independent axis control for simple positioning tasks. Follower mode enables electronic gearing and camming between axes for complex profiles. The module executes motion profiles based on downloaded user logic from the host CPU. This architecture offloads motion calculations from the main processor effectively.

Comprehensive Compatibility and Integration

Engineers can integrate the GE IC693DSM324 with multiple CPU options across the Series 90-30 line. Compatible processors include CPU 350, 352, 360, 363, 364, and 374 models. The module also functions within PACSystems RX3i racks for enhanced performance. Up to 20 DSM324 modules can operate in a single system for large multi-axis machines. RX3i main racks accommodate up to 5 modules per CPU baseplate with appropriate power supplies. Expansion racks support between 2 and 6 modules depending on configuration.

Power Requirements and Distribution

The IC693DSM324 draws 860 mA from the 5 VDC backplane supply during operation. This current draw excludes additional load from external encoders connected to the module. The module provides 500 mA total encoder supply current for feedback devices. Engineers must select compatible power supplies from the PWR 321, 322, 328, 330, or 331 options. Proper power budgeting ensures reliable operation of all modules in the rack. The module’s internal filter capacitors maintain stable operation during transient loads.

Seamless Integration with Digital Servo Systems

The IC693DSM324 interfaces directly with ?i, ?HVi, ?i, and ?HVi series digital servo drives. This compatibility ensures reliable communication between controller and drives. The module sends motion commands and receives feedback from each servo axis. Engineers can configure position loops, velocity profiles, and torque limits through software. Similar to protection devices like the RMS TSG TZ C Static Trip unit, this module ensures precise control. The combination supports applications requiring coordinated motion and precise positioning.

Application Versatility in Industrial Machinery

The IC693DSM324 suits a wide range of multi-axis motion control applications effectively. Common uses include packaging machines, assembly systems, and material handling equipment. Four-axis capability supports gantry systems, pick-and-place robots, and rotary knives. Follower mode enables electronic line shafting for synchronized web handling applications. Engineers appreciate the integration with standard Series 90-30 I/O and programming tools. This motion controller delivers reliable performance for demanding automation requirements.
