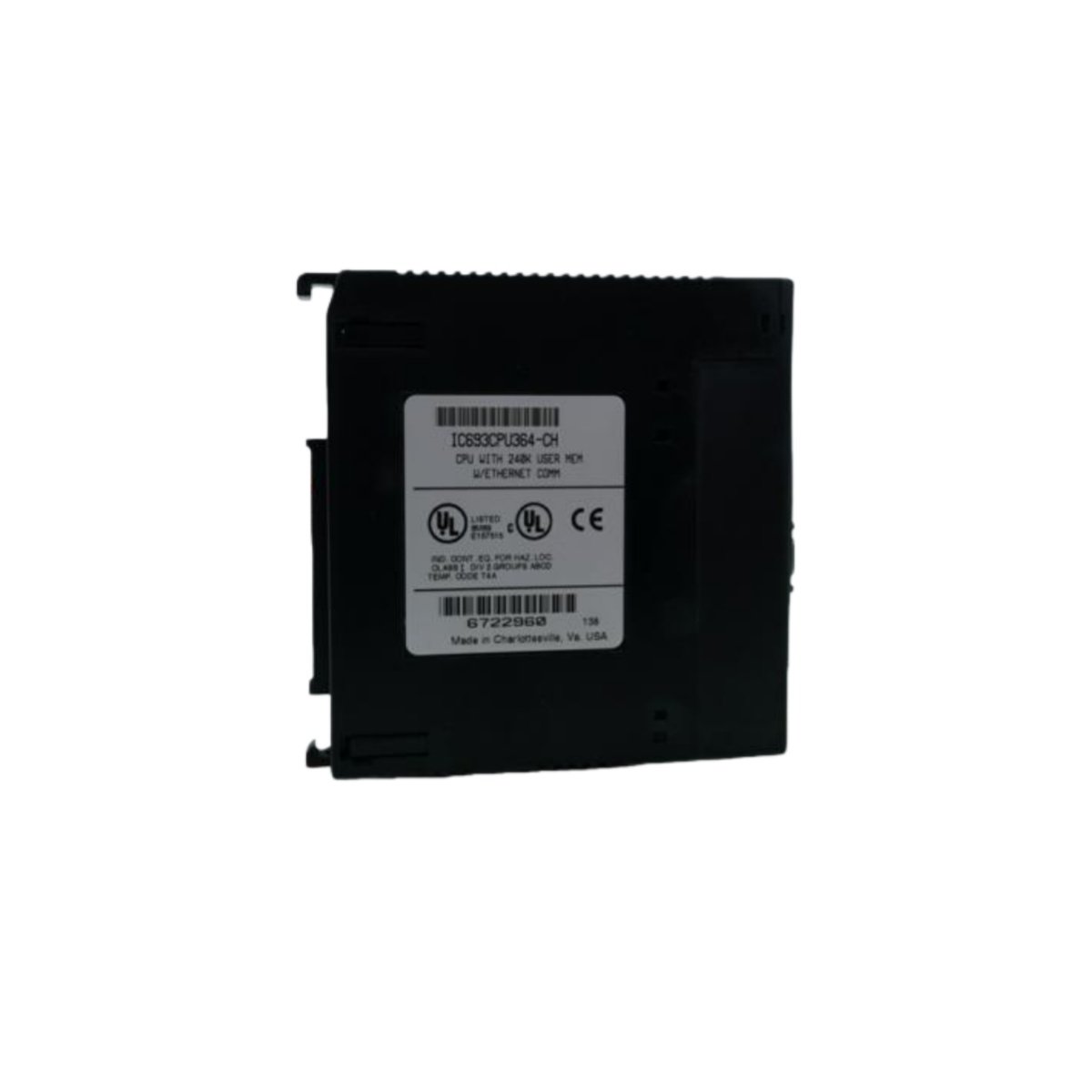

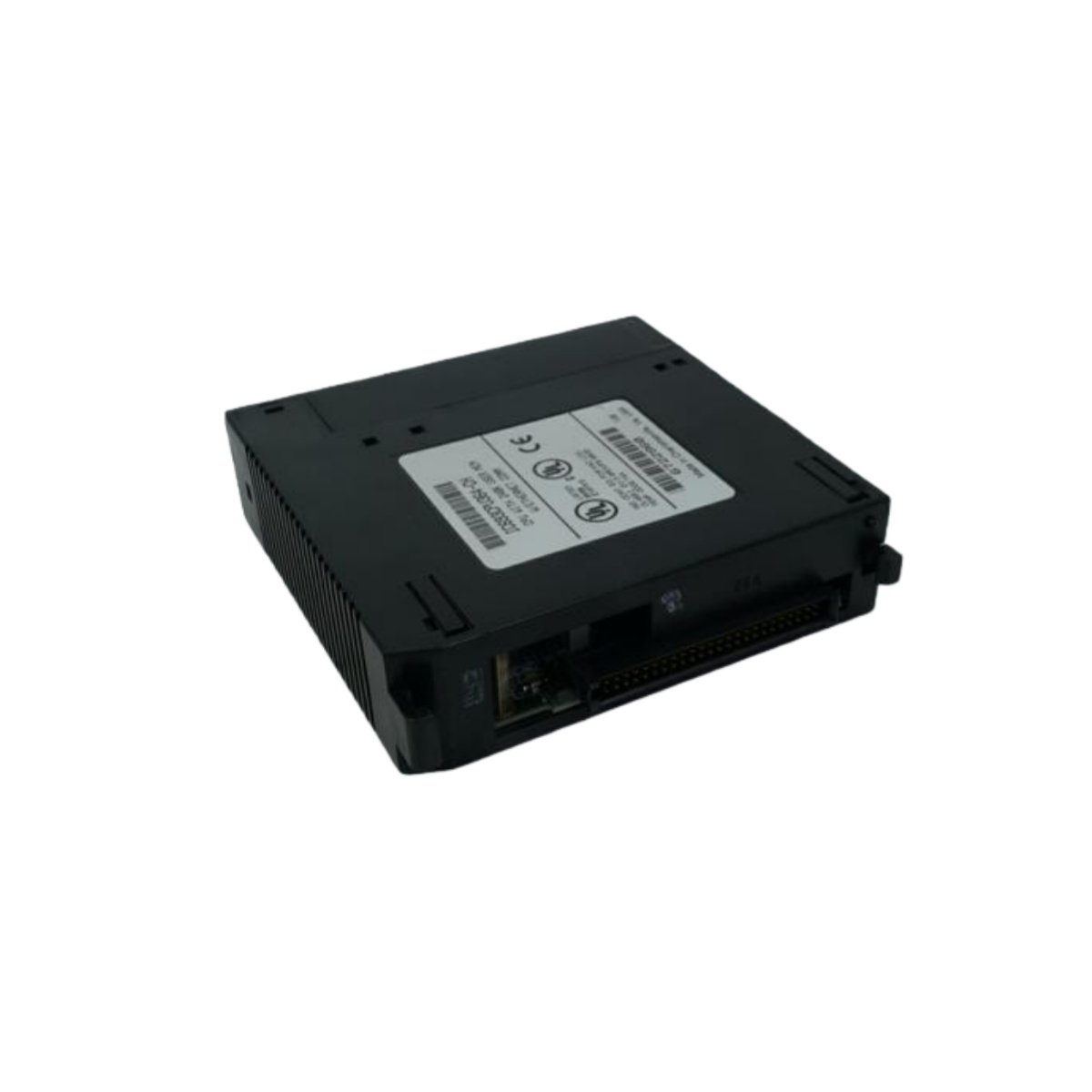

PLC systems need fast processing and reliable communication capabilities. The GE IC693CPU364 delivers robust logic execution for mid-sized automation applications. This module functions as a CPU 364 processor from GE Fanuc. Emerson Automation now supports this Series 90-30 platform component.

Technical Specifications & Dimensions

This CPU module combines processing power with embedded Ethernet connectivity. The table below outlines its core technical parameters.

Construction and Interface Layout

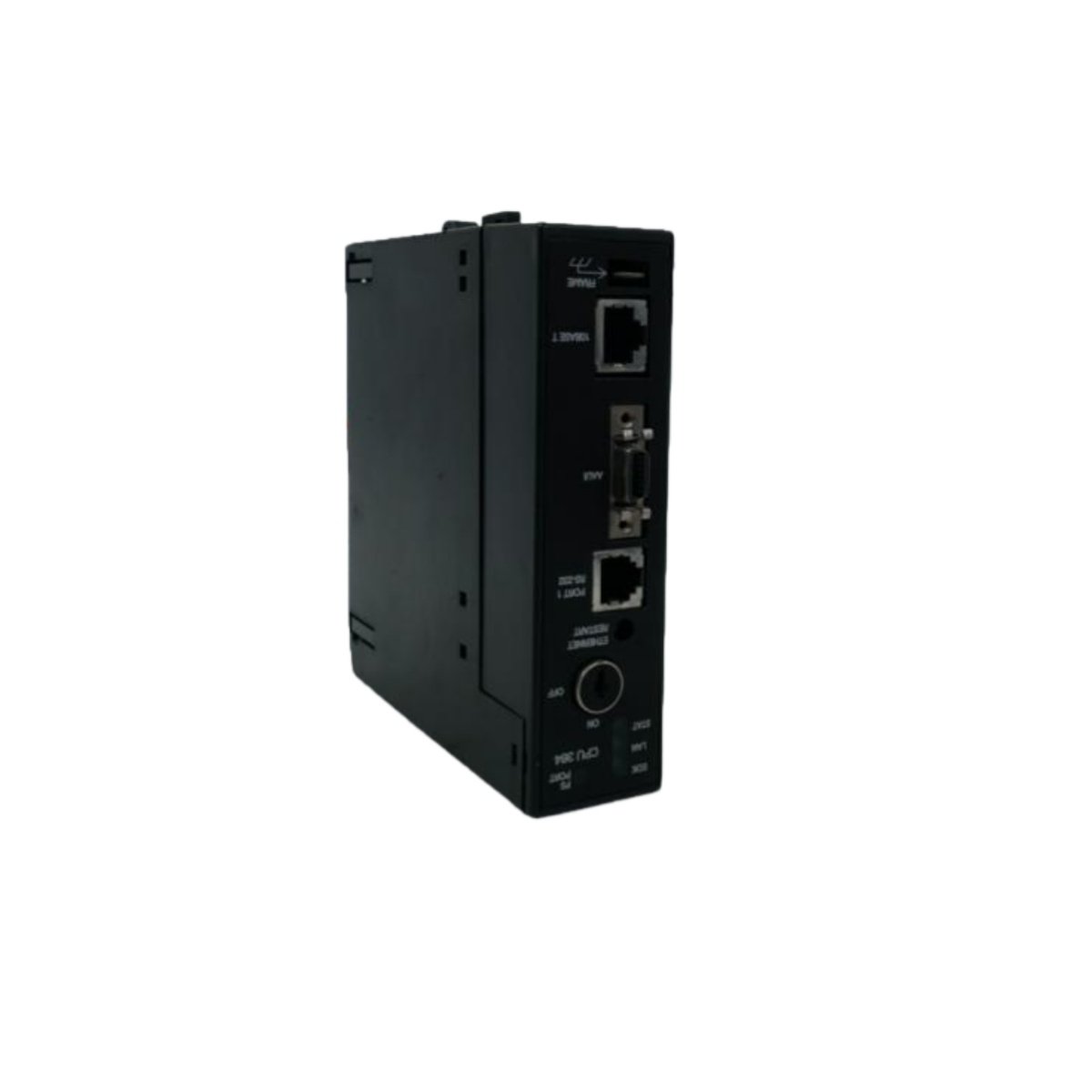

This module features a rugged plastic housing with EMI shielding. Such a design protects the processor from industrial electrical noise. Furthermore, the GE IC693CPU364 provides front-accessible ports for network connections. You will find one Ethernet port and status LEDs on the faceplate. The module also uses the power supply’s RS-485 port for serial communication. An LED array shows run, fault, and network activity clearly.

Energy Storage and Memory Architecture

Unlike basic controllers, this CPU uses both RAM and Flash memory storage. The module retains programs in Flash memory without battery backup. Consequently, the GE IC693CPU364 does not lose logic during extended power outages. A supercapacitor maintains the real-time clock for up to 72 hours. This capacitor stores enough energy to keep time during short shutdowns. The processor executes Boolean logic at an impressive 0.22 ms per 1K.

Installation and Mounting Requirements

Installing the GE IC693CPU364 takes only a few minutes of work. The unit slides directly into a Series 90-30 PLC rack slot. It also locks securely with a top-mounted retaining clip. Always disconnect all power before inserting or removing this module. The unit uses passive cooling without any internal fans. This design eliminates dust accumulation and moving parts. The module occupies a single slot in the main rack.

Integration with Automation Networks

This CPU works seamlessly with GE Series 90-30 I/O modules. It communicates with host systems via the embedded Ethernet interface. Operators can choose between AAUI or 10BaseT physical connections. The GE IC693CPU364 also supports SNP and Modbus serial protocols. Consequently, this processor remains an excellent choice for legacy system upgrades. The unit delivers consistent performance across a 0°C to 60°C temperature range.
