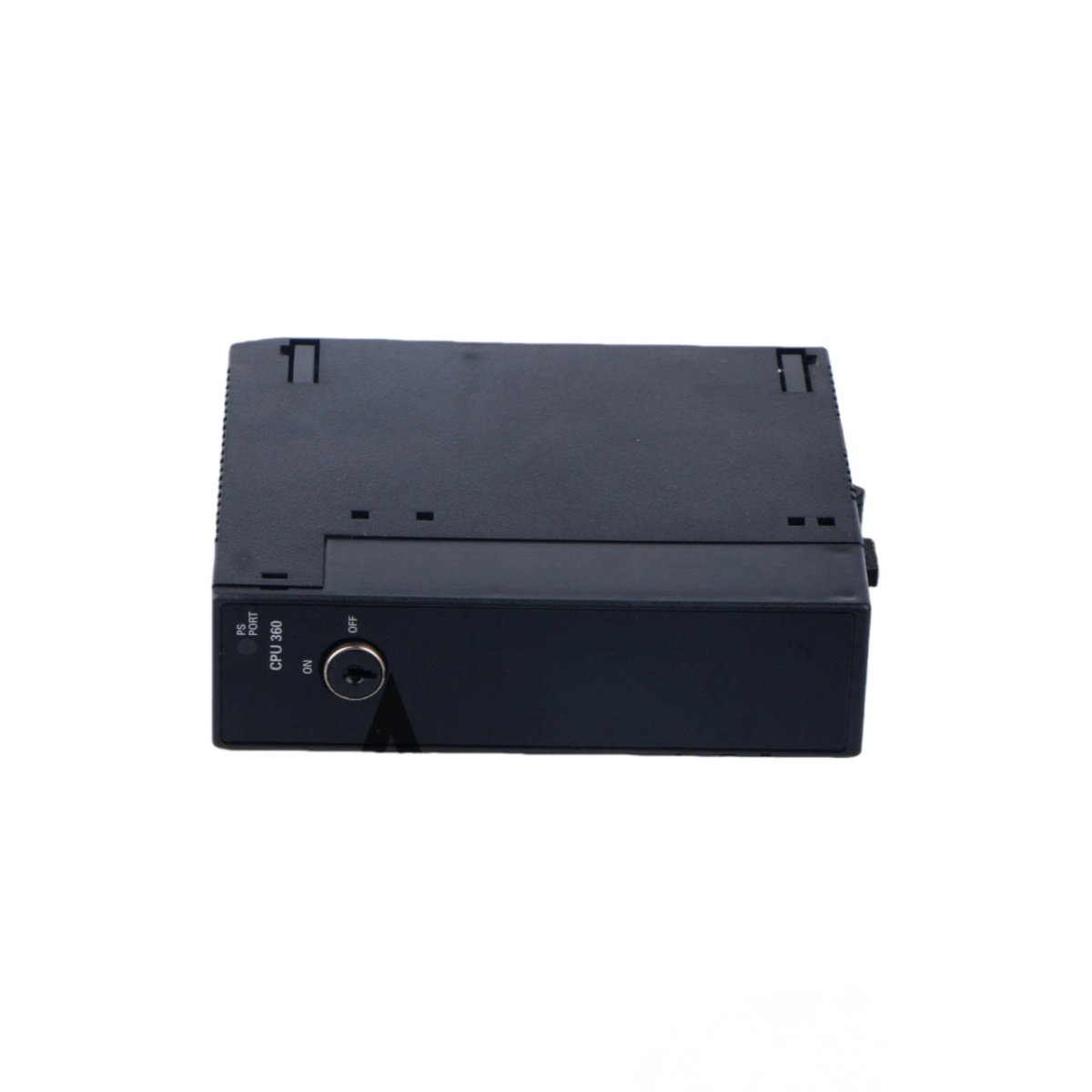

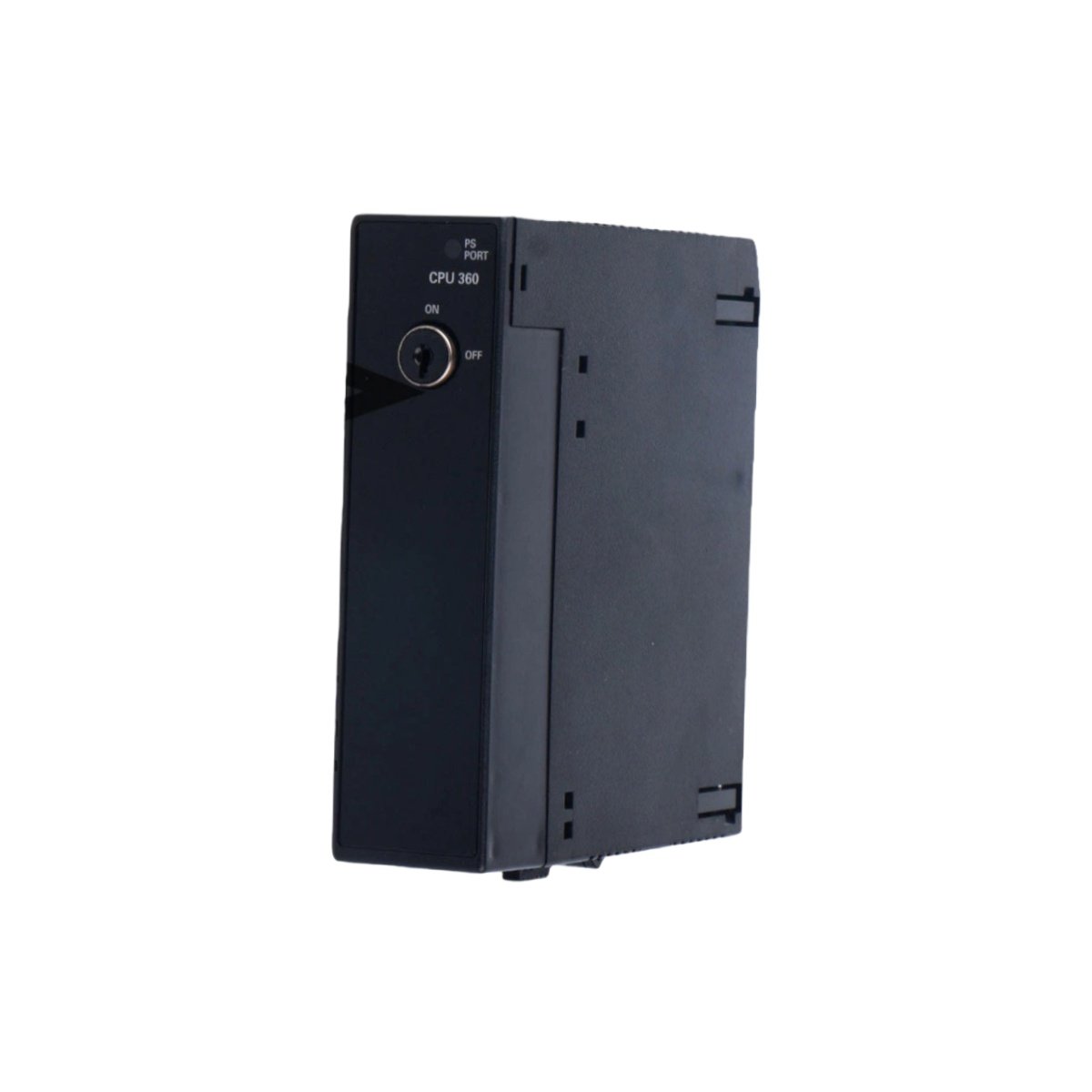

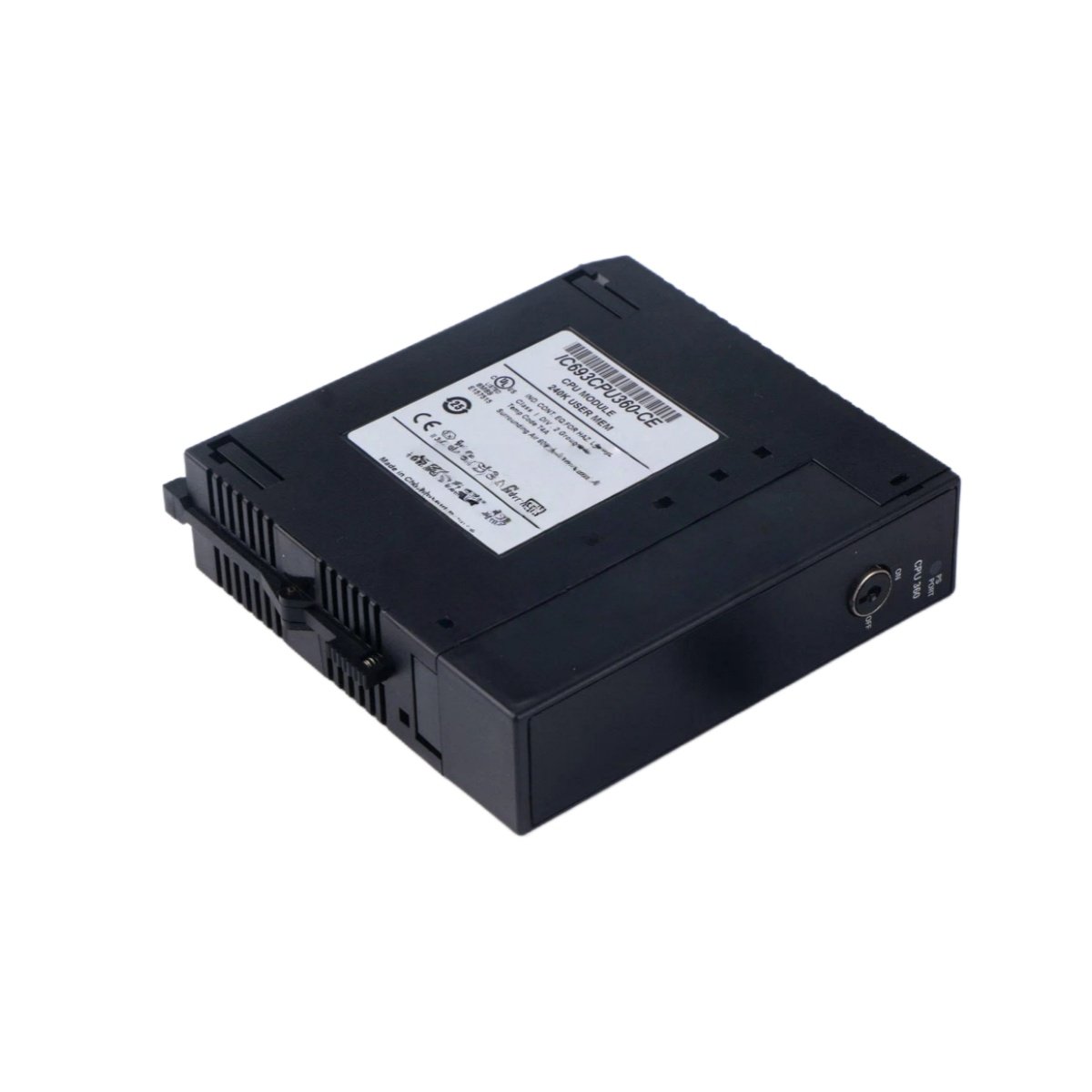

The IC693CPU360 functions as a powerful CPU module within the Series 90-30 automation platform from GE Fanuc. Emerson Automation now supports this processor, continuing the legacy of reliable control solutions. Engineers use this module to execute complex logic programs with exceptional speed and efficiency. Consequently, the IC693CPU360 delivers robust performance for demanding industrial applications.
Core Processing Architecture
The IC693CPU360 houses an 80386EX microprocessor running at 25 MHz for rapid program execution. It achieves a typical scan rate of 0.22 milliseconds per 1K of Boolean logic contacts. This processing speed ensures responsive control for time-critical manufacturing processes and machinery. Additionally, the module provides 240K Bytes of user memory for extensive application programs. Such capacity supports complex automation tasks without requiring additional memory expansion.
Technical Specifications
Understanding the exact specifications of the IC693CPU360 ensures proper integration into existing Series 90-30 systems. Below you will find a detailed breakdown of its physical and electrical characteristics:
| Specification Category | Detailed Parameter |
|---|---|
| Product Type | CPU Processor Module |
| Manufacturer | GE Fanuc / Emerson Automation |
| Product Line | Series 90-30 |
| Part Number | IC693CPU360 |
| Weight | 1.00 lbs (0.45 kg) |
| CPU Type | Single-slot processor module |
| Microprocessor | 80386EX running at 25 MHz |
| User Memory | 240K Bytes total |
| Memory Type | RAM and Flash combination |
| Scan Rate | 0.22 ms per 1K of Boolean logic |
| Power Requirement | 670 milliamps at +5 VDC |
| Communication Port | RS-485 (via power supply module) |
| Ethernet Ports | None (requires separate module) |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
Memory and Communication Features
The IC693CPU360 utilizes both RAM and Flash memory for flexible program storage and retention. RAM provides fast access for active program execution during normal operation. Flash memory retains the program permanently even without applied power. For communications, this processor uses the RS-485 port located on the power supply module. This design simplifies the CPU slot while maintaining essential connectivity.
Power Requirements and Integration
The IC693CPU360 draws 670 milliamps from the +5 VDC backplane supply during normal operation. It fits into a single slot within the Series 90-30 rack for efficient space utilization. The module works with any compatible Series 90-30 power supply featuring an RS-485 port. Engineers can combine this CPU with various I/O modules for complete system configuration.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
