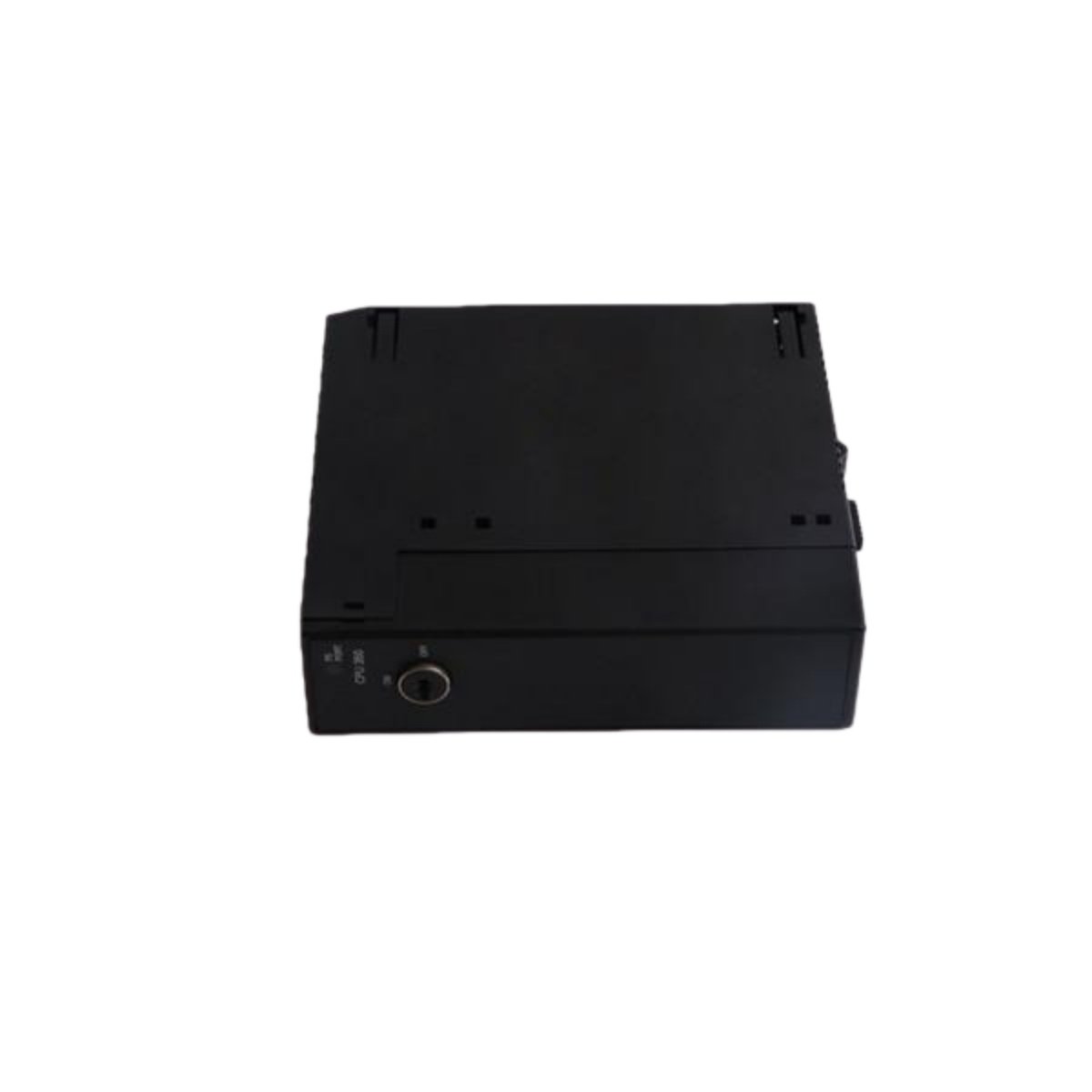

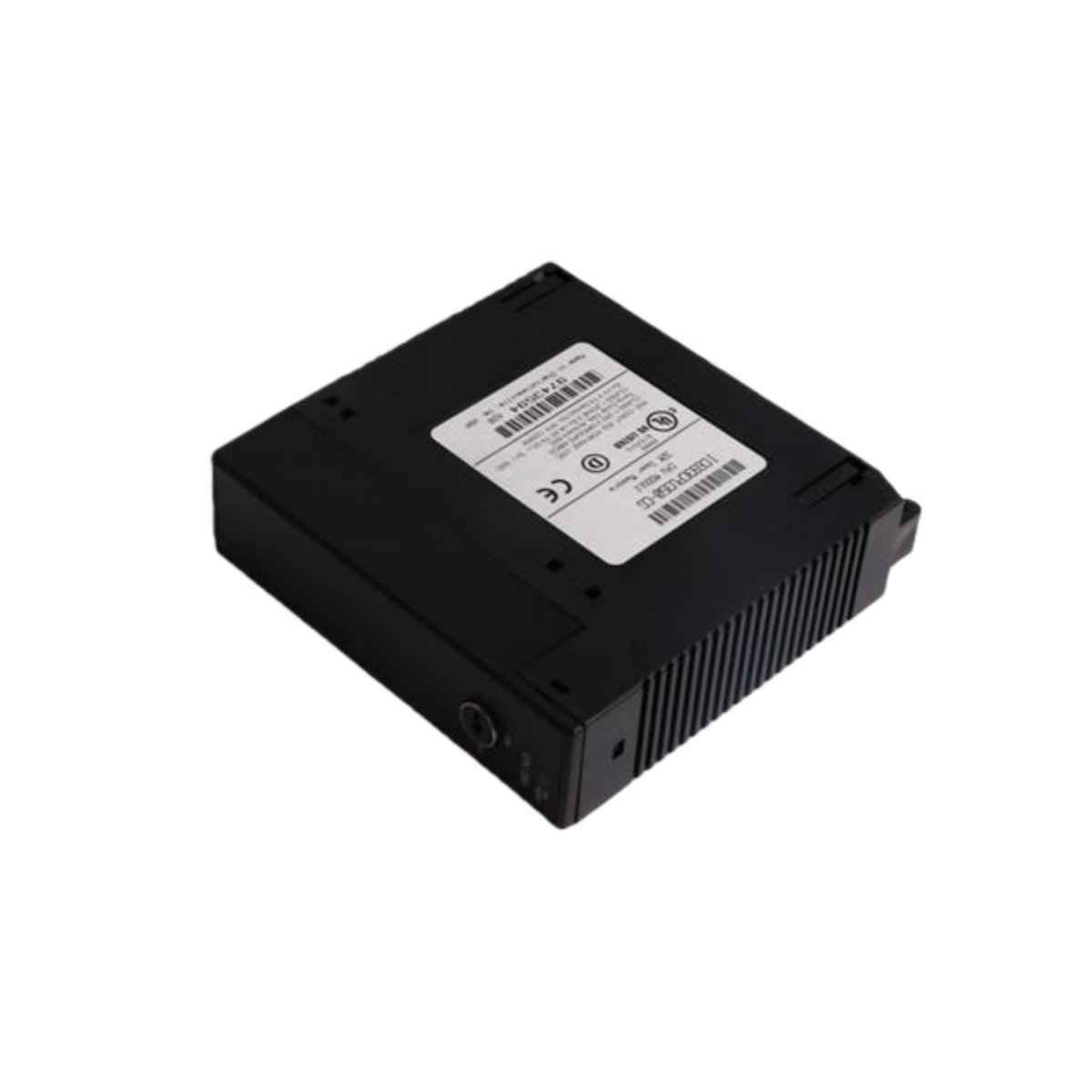

The GE IC693CPU350 serves as a powerful central processing unit for Series 90-30 programmable logic controllers. This module delivers enhanced processing capabilities for medium to large-scale automation applications. It features a 133 MHz processor for fast and efficient program execution. The IC693CPU350 includes 120 KB of user logic memory for complex control strategies. Engineers benefit from the built-in floating-point math and PID algorithm support.

Technical Specifications and Physical Characteristics

Accurate technical specifications enable proper selection of the GE IC693CPU350 for control system requirements. The module’s robust design supports demanding industrial applications with consistent reliability.

Advanced Processing Capabilities

The IC693CPU350 delivers exceptional computational performance for the Series 90-30 platform. Its 133 MHz clock speed enables rapid execution of complex control algorithms. Boolean logic executes in just 0.37 milliseconds per thousand instructions. This performance suits high-speed applications requiring fast scan times. The 120 KB user memory accommodates extensive program logic and data tables. Built-in floating-point math hardware accelerates real number calculations significantly.

Comprehensive Memory Architecture

The GE IC693CPU350 incorporates extensive memory resources for data handling requirements. Register memory provides 32K words for analog value storage and manipulation. The CPU supports up to 4096 timers and counters for sequencing applications. User programs store securely in internal Flash memory without battery support. A lithium battery maintains register data during power loss for up to two years. The real-time clock uses super capacitor backup for short-term power interruptions.

Integrated Communication Capabilities

Two built-in serial ports provide flexible connectivity options for the IC693CPU350. Port 1 supports SNP slave protocol for programming terminal connections. Port 2 offers SNP/RTU master or slave functionality for versatile networking. The RS-485 port enables multi-drop connections with up to 32 devices. Engineers can connect operator interfaces, drives, and other intelligent devices directly. These integrated ports eliminate the need for separate communication modules in many applications.

Seamless Integration with Series 90-30 Systems

The IC693CPU350 integrates easily into existing Series 90-30 racks and systems. The module occupies two slots in the backplane due to its enhanced functionality. It communicates with I/O modules through the rack backplane efficiently. Similar to protection devices like the RMS TSG TZ C Static Trip unit, this CPU ensures reliable system operation. The 4096 discrete I/O capacity handles substantial machine and process applications. Analog I/O support reaches 512 inputs and 512 outputs for continuous control.

Application Versatility in Industrial Automation

The IC693CPU350 suits a wide range of industrial control applications effectively. Common uses include material handling, packaging machinery, and process control systems. Built-in floating-point math supports precise calculation requirements in process applications. PID control capabilities enable closed-loop regulation of temperature, pressure, and flow. The fast processor supports high-speed applications like assembly machines and sortation systems. Engineers appreciate the combination of performance and integration in a single module.
