Core Function and System Role

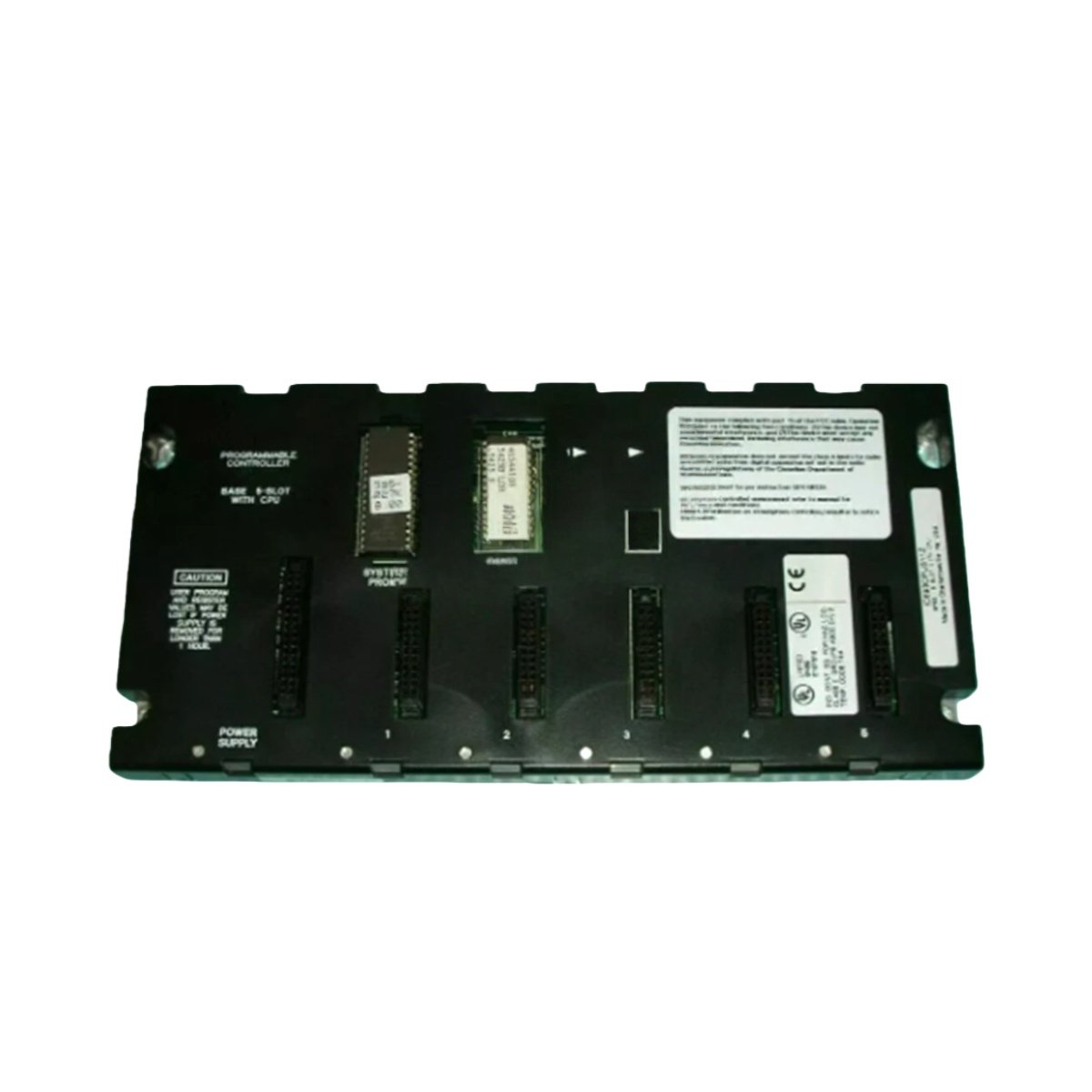

The GE IC693CPU311 serves as an integrated CPU and baseplate unit for PLC systems. This unit, originally from GE Fanuc, now belongs to the Emerson Automation portfolio. It combines a central processor, memory, and a five-slot backplane into one compact assembly. Consequently, it forms the foundational controller for small to medium-sized automation projects.
Processing Power and I/O Capacity
The embedded 80188 CPU operates at a clock speed of 10 MHz. Furthermore, it delivers a Boolean execution speed of 18 ms per 1K of ladder logic. This baseplate supports a significant I/O capacity for its class, handling up to 160 discrete points. It also manages 64 analog input words and 32 analog output words efficiently.
Detailed Technical Specifications
This all-in-one unit is designed for straightforward installation and reliable operation. The following table details its comprehensive hardware and performance parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Emerson Automation (formerly GE Fanuc) |
| Model Number | IC693CPU311 |
| Series Platform | GE Series 90-30 Programmable Logic Controller |
| Product Category | Integrated CPU Baseplate / Controller |
| Embedded Processor | 80186/80188-compatible CPU |
| Processor Clock Speed | 10 MHz |
| User Program Memory | 6 Kilobytes (KB) |
| Boolean Execution Speed | 18 ms per 1K of logic |
| I/O Slots on Baseplate | 5 slots for I/O or special function modules |
| Integrated Power Supply Slot | 1 slot (for a separate power supply module) |
| Supported I/O Capacity | Up to 160 Discrete I/O & 96 Analog Words |
| Integrated Communication Port | 1 Serial Port (SNP & SNP-X Slave protocol) |
| 5V Logic Current Load | 410 mA (typical for CPU operation) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H x W x D) | Standard 90-30 5-slot baseplate dimensions |
| Approximate Weight | 1.8 kg (including processor hardware) |
| Expansion Capability | None (cannot connect to expansion baseplates) |
Integrated Design and Communication
The baseplate features one integral serial port for host communication. Moreover, this port supports the SNP and SNP-X slave protocols for network connectivity. The design integrates the CPU directly onto the backplane, which saves space and enhances reliability. For protecting the system’s power input, a component like the RMS-TSG-TZ-C static trip unit offers excellent protection.
Application and Value Proposition
The GE IC693CPU311 is ideal for compact, standalone machine control applications. Its integrated design simplifies cabinet layout and reduces component count. Choosing this genuine controller ensures full compatibility with the extensive Series 90-30 I/O module library. Ultimately, it provides a cost-effective and reliable automation solution for dedicated tasks.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
