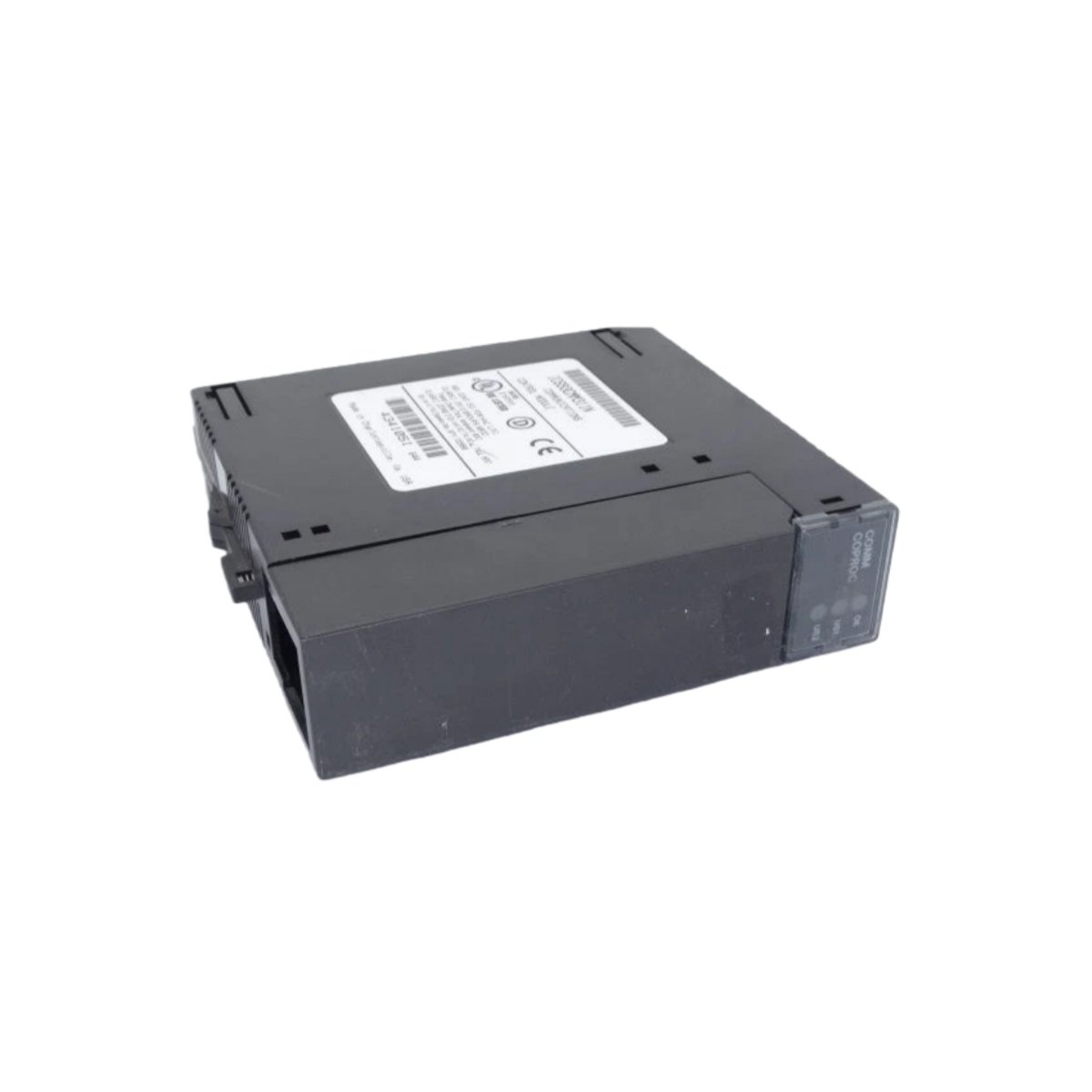

The GE IC693CMM311 enhances the connectivity of your Series 90-30 PLC system. This dedicated communication coprocessor module provides two configurable serial ports for versatile device networking. Consequently, it offloads communication tasks from the main CPU, thereby improving overall system performance and responsiveness.
Core Communication Capabilities and Protocols
This module features two independent serial communication ports with flexible electrical standards. Port 1 operates as a standard RS-232 interface, while Port 2 supports RS-232, RS-422, and RS-485 standards. Therefore, you can connect to a wide array of devices including HMIs, drives, bar code readers, and other PLCs. The module natively supports the SNP (Serial Network Protocol), Modbus RTU, and native CCM protocols.
Detailed Technical Specifications
The table below outlines the definitive hardware, interface, and compatibility parameters for this module.
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (Now Emerson Automation) |
| Full Part Number | IC693CMM311 |
| Product Line | Series 90-30 PLC/PAC System |
| Module Type | Communication Coprocessor Module (CCM) |
| Number of Serial Ports | 2 |
| Port 1 Electrical Standard | RS-232 |
| Port 2 Electrical Standards | RS-232 / RS-422 / RS-485 (Configurable) |
| Supported Protocols | SNP, Modbus RTU, CCM (Native Coprocessor Mode) |
| Compatible CPUs | Modular GE Series 90-30 CPUs (e.g., IC693CPU3xx) |
| Incompatible With | Embedded (Fixed I/O) CPUs |
| Maximum Modules per Rack | 4 CMM Modules |
| Slot Width | Single Slot |
| Module Width | Single Slot |
| Recommended Cable | IC693CBL305 Wye Cable |
| Module Weight | 0.63 lbs (0.28 kg) |
| Form Factor | Standard Series 90-30 module |
| Power Requirement | +5 V DC from PLC backplane |
| Operating Temperature | 0°C to 60°C (Standard) |
| Isolation | 1500 V AC (Typical for comm ports) |
| Status Indicators | LEDs for power, activity, and port status |
| Primary Function | Offloads serial communication processing from main CPU |
Integration and Application Benefits
Installing this coprocessor frees the main CPU to execute control logic more efficiently. Furthermore, it allows for simultaneous communication with multiple devices on different networks and protocols. This module is essential for building distributed control systems or for integrating third-party equipment. For comprehensive system data collection, it can communicate with protection and monitoring devices like the RMS-TSG-TZ-C Static Trip.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
