Technical Overview

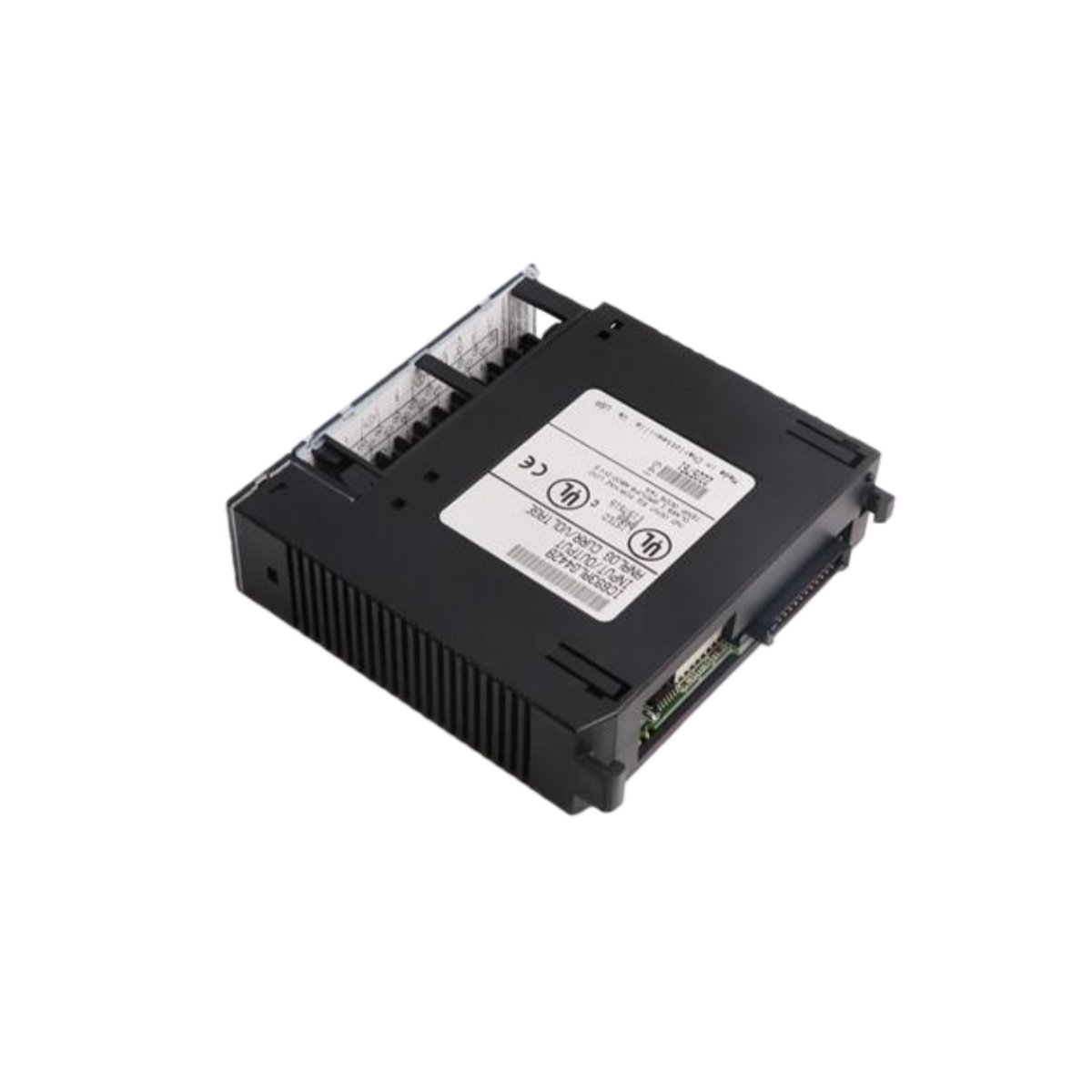

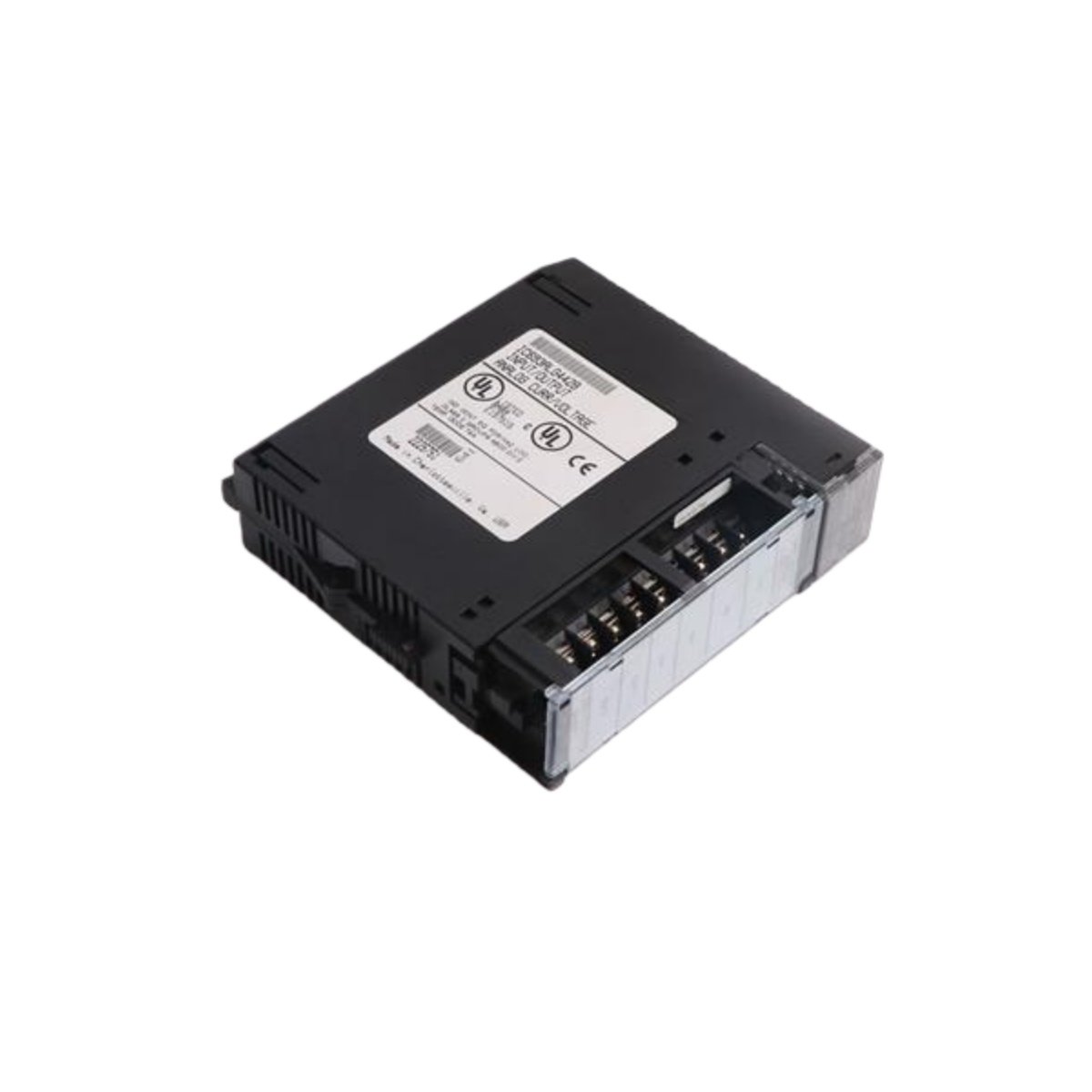

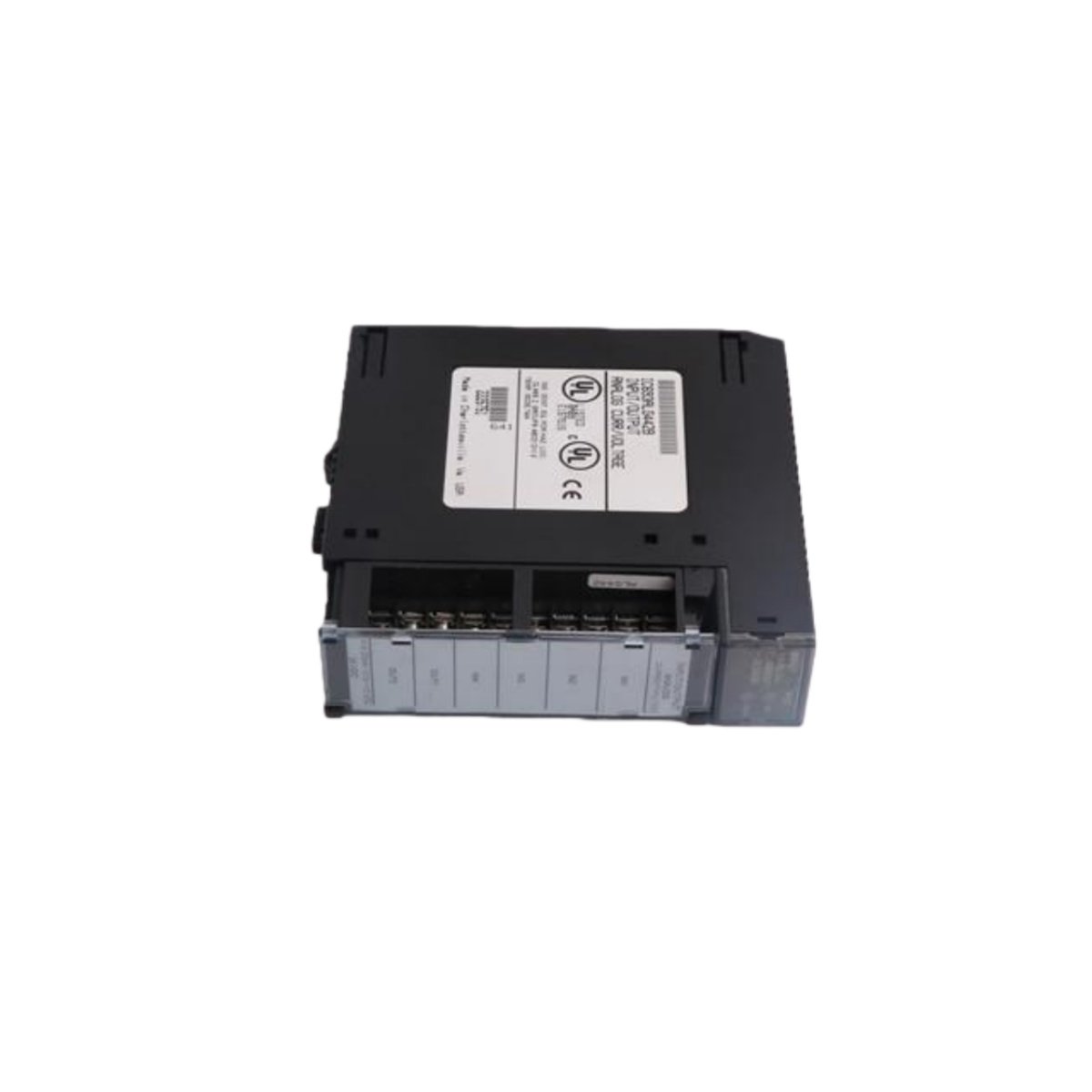

The GE IC693ALG442 belongs to the widely used Series 90-30 product line from GE Fanuc. This analog combination module provides flexible I/O capabilities for industrial control systems. It integrates four differential input channels with two single-ended output channels. The module handles both voltage and current signals seamlessly. Engineers value its precision for demanding automation tasks.
Input Specifications and Signal Compatibility
This module accepts four differential input channels for versatile field device connectivity. Input ranges include 0 to +10 volts, –10 to +10 volts, 0 to 20 mA, and 4 to 20 mA. It also supports 4 to 20 mA Enhanced signals for specialized applications. The input impedance measures 800 K Ohms for reliable signal acquisition. Resolution reaches 2.5 mV for the 0 to 10 V range. For the –10 to 10 V range, resolution is 5 mV.
Output Performance and Accuracy
Two analog outputs deliver precise control signals to actuators and drives. Output options include 0 to +10 V, –10 to +10 V, 0 to 20 mA, and 4 to 20 mA. The update rate occurs every 8 milliseconds for responsive operation. Resolution stands at 0.5 microamps for 4 to 20 mA signals. For 0 to 20 mA outputs, resolution reaches 0.625 microamps. Accuracy remains within 0.25% at 25 degrees Celsius.
Power Requirements and Physical Characteristics
The GE IC693ALG442 requires an external supply voltage between 20 and 30 VDC. Typical operation uses 24 VDC for standard industrial environments. This module weighs approximately 0.94 lbs (0.43 kg) for easy installation. It maintains a compact form factor suitable for crowded panels. All specifications reflect original GE Fanuc Emerson design standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc Emerson |
| Product Line | Series 90-30 |
| Category | Analog Voltage/Current Module |
| Input Channels | 4 differential |
| Output Channels | 2 single-ended |
| Input Ranges | 0-10 V, -10-10 V, 0-20 mA, 4-20 mA |
| Output Ranges | 0-10 V, -10-10 V, 0-20 mA, 4-20 mA |
| Update Rate | 8 milliseconds |
| Input Impedance | 800 K Ohms |
| Accuracy | 0.25% at 25°C |
| External Supply | 20-30 VDC (24 VDC typical) |
| Weight | 0.94 lbs (0.43 kg) |
Application and Integration
This module integrates seamlessly into Series 90-30 PLC systems. It suits applications requiring mixed analog I/O within a single slot. Therefore, engineers reduce component count and simplify wiring. The module supports both configurations. Consequently, it adapts to diverse industrial automation needs. Always verify compatibility with your existing GE Fanuc Emerson setup before installation.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
