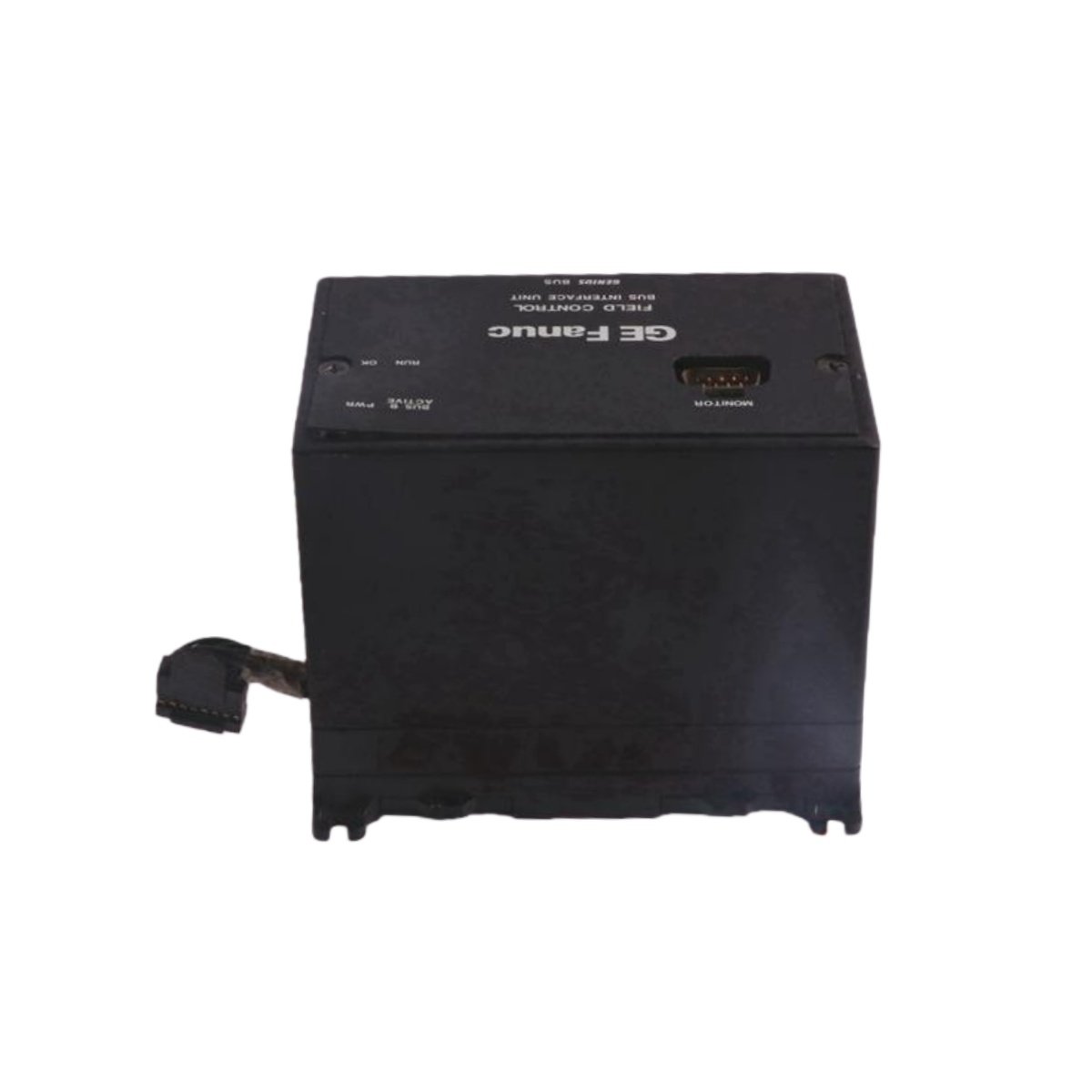

The GE IC670MDL241 functions as a high-voltage input module within the Field Control series from GE Fanuc Emerson, accepting 240 VAC signals from field devices. This modular unit handles discrete AC inputs from limit switches, pushbuttons, and proximity sensors in industrial automation applications. Engineers select the IC670MDL241 for reliable signal acquisition in motor control centers and process equipment monitoring.

Input Configuration and Electrical Specifications

We design the GE IC670MDL241 with 16 input points organized into two isolated groups for flexible field wiring arrangements. Each channel draws 8.2 mA of user input current, providing adequate signal sensing while minimizing power consumption from field devices. The module requires connection to a bus interface unit for power and communication, drawing a maximum current of 77 mA from the backplane.

• Input Points: 16 channels organized into 2 isolated groups.

• Input Voltage: 240 VAC nominal for direct industrial signal acceptance.

• User Input Current: 8.2 mA per point for reliable field device sensing.

• Module Current Draw: 77 mA maximum from bus interface unit.

• Status Indication: LEDs for each input point showing real-time channel status.

Physical Specifications and Installation Requirements

The IC670MDL241 weighs only 0.28 kg (0.63 lbs), making it one of the lighter modules in the Field Control product line. This unit requires vertical mounting orientation within the control cabinet, simplifying panel layout and airflow management. Technicians can terminate field wiring using 14 to 22 AWG wire sizes, accommodating various installation practices and cable types.
