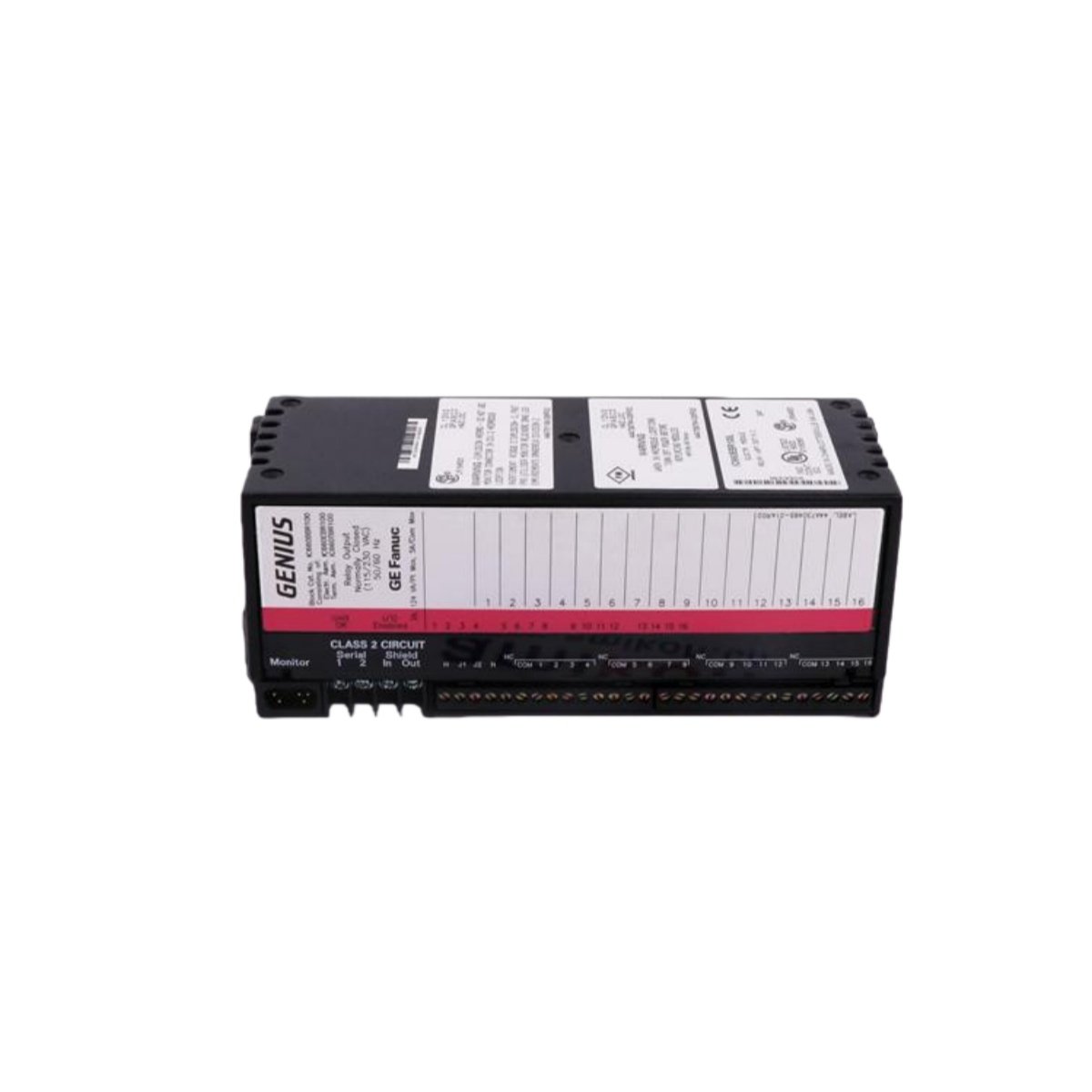

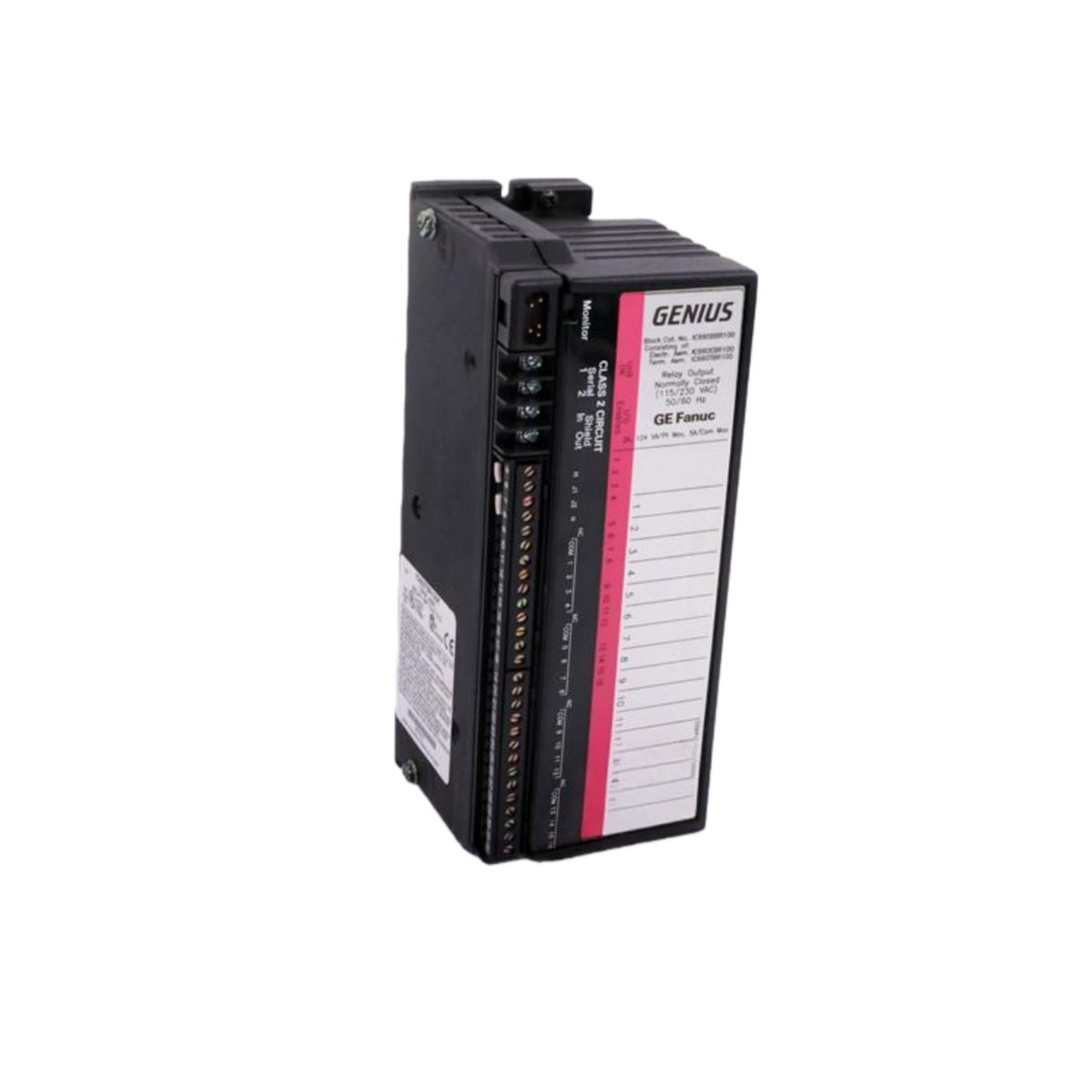

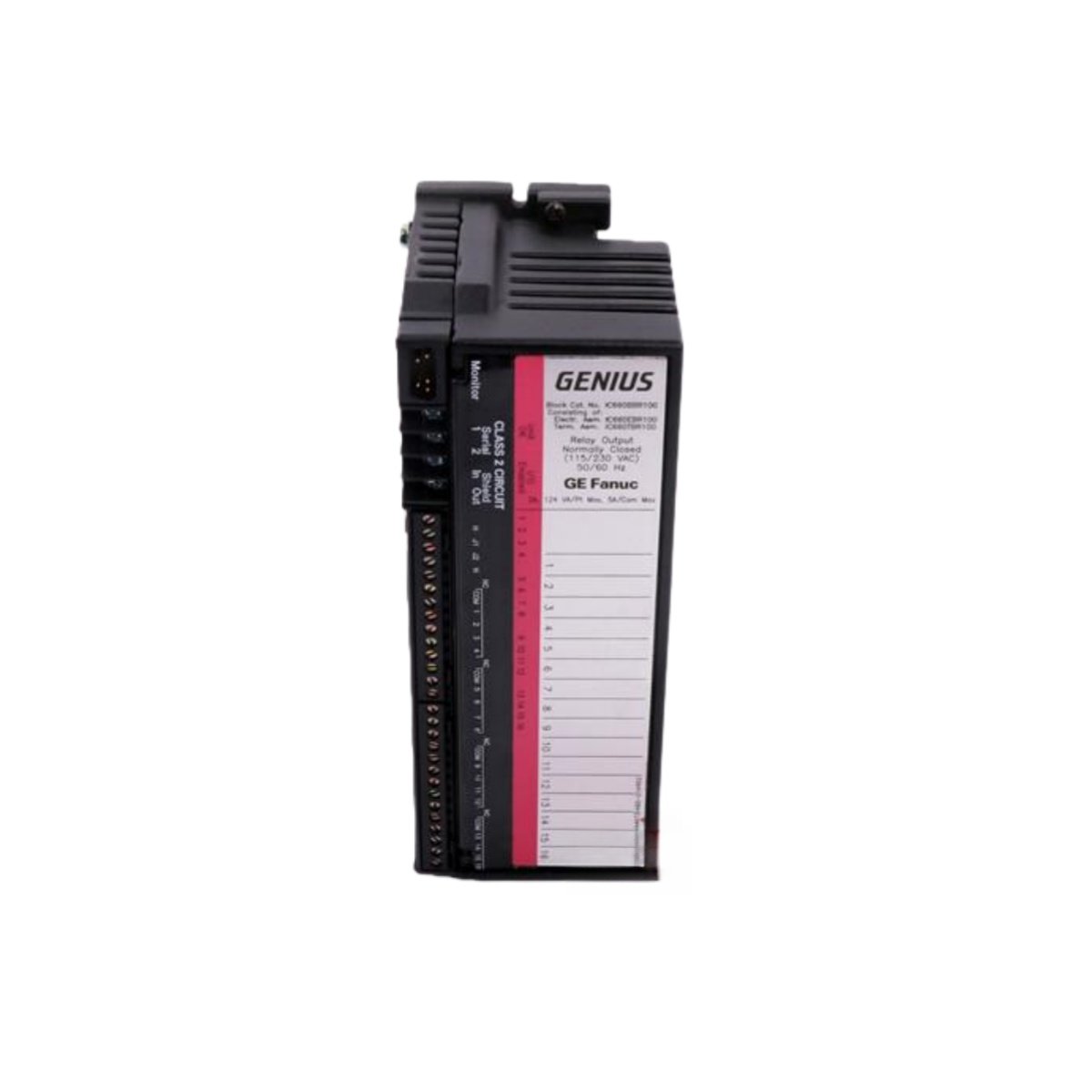

The GE IC660BBR100 delivers reliable control for low-power industrial devices. This versatile block belongs to the renowned Genius I/O product family. It provides sixteen normally closed relay output points for flexible system design.
Electrical Specifications and Load Handling
This output block operates at a rated voltage of either 115 VAC or 230 VAC. Each of its sixteen points handles a robust load current of 2 Amps. The operating voltage range spans from 93-132 VAC for low-voltage models.
Alternatively, it supports 185-265 VAC for the higher voltage configuration. The relays manage a broad voltage range from 5-250 VAC or 5-220 VDC. Strong 1500 VAC isolation separates the four output groups for enhanced safety.
Physical Design and Configuration
The IC660BBR100 organizes its outputs into four groups of four points each. This logical grouping simplifies wiring and common connection management. The unit features compact dimensions of 3.0″ x 8.0″ x 4.0″ (7.6 cm x 20.3 cm x 10.2 cm).
It has a substantial weight of 3 lbs 6 oz (1.8 kg), indicating a robust build. This GE Fanuc component suits demanding environments requiring durable relay control. Its design prioritizes both operational reliability and straightforward maintenance.
| Parameter | Specification |
|---|---|
| Manufacturer | GE (General Electric) |
| Product Family | Genius I/O |
| Part Number | IC660BBR100 |
| Product Type | Normally Closed Relay Output Block |
| Number of Output Points | 16 |
| Load Current per Point | 2 Amps |
| Rated Voltage | 115 VAC or 230 VAC |
| Operating Voltage Range | 93-132 VAC / 185-265 VAC |
| Switching Voltage Range | 5-250 VAC / 5-220 VDC |
| Isolation (Between Groups) | 1500 VAC |
| Output Grouping | 4 Groups of 4 Points |
| Dimensions (H x W x D) | 7.6 cm x 20.3 cm x 10.2 cm |
| Weight | 1.8 kg (3 lbs 6 oz) |
Details
| Weight | 1.8 kg |
|---|---|
| Dimensions | 76 × 203 × 102 mm |
