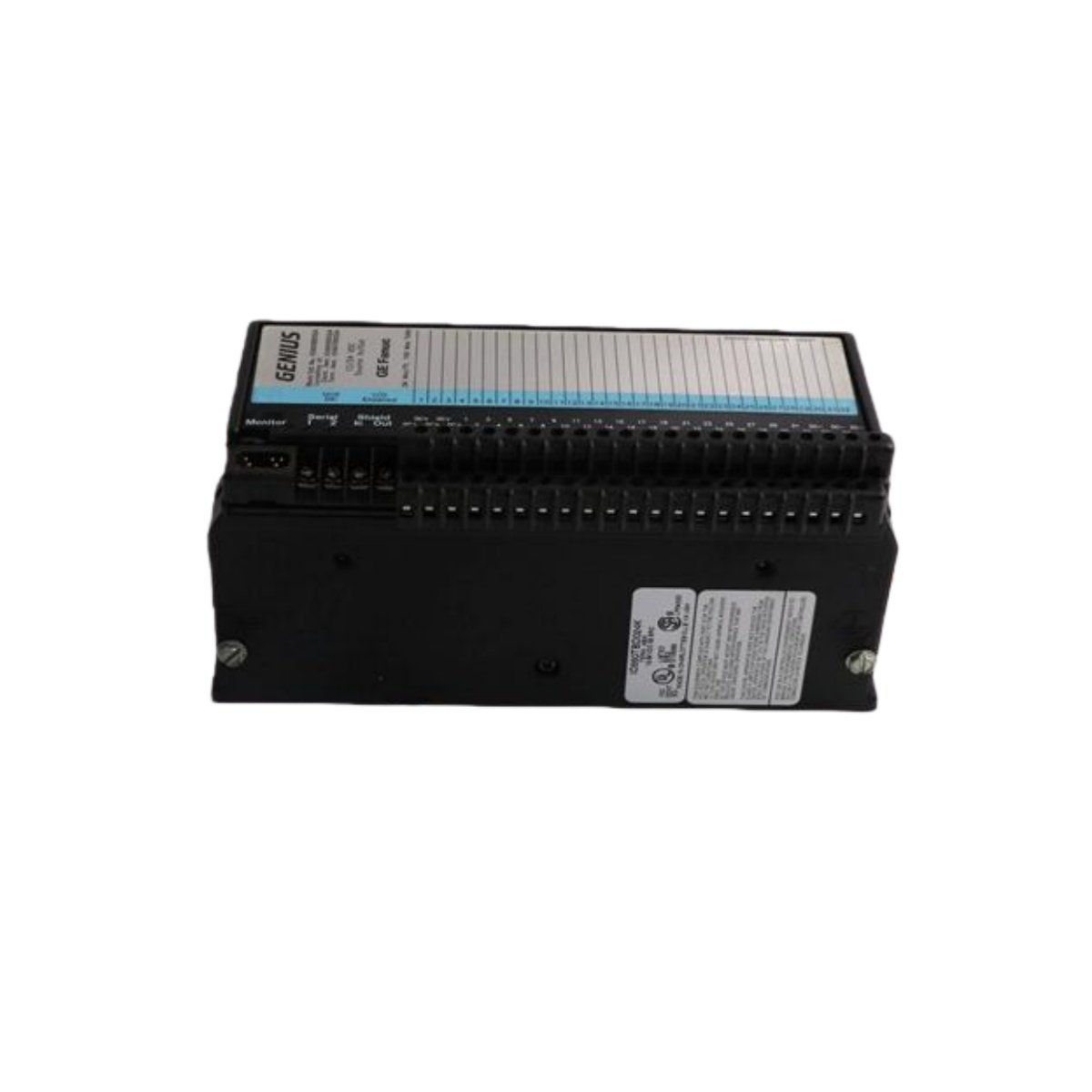

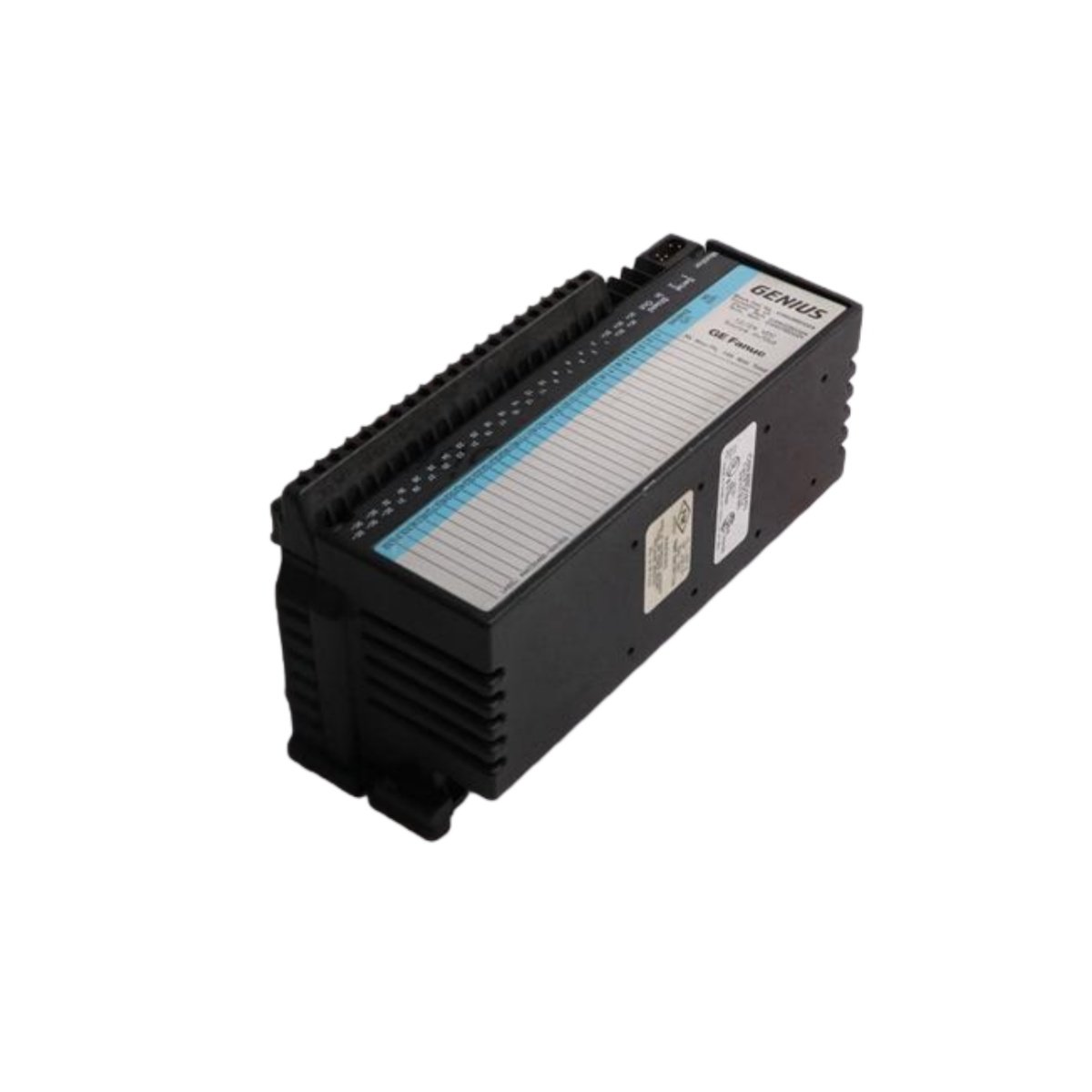

The IC660BBD024 from GE Fanuc Emerson serves as a high-density discrete sourcing I/O block for the Genius Bus platform. Engineers utilize this intelligent module for flexible machine-mounted control applications. It combines input and output functionality within a single compact enclosure. This module significantly reduces panel space while increasing system diagnostics capabilities.
Core Hardware Architecture and Physical Design
This I/O block features a rugged industrial enclosure measuring approximately 250 mm x 150 mm x 50 mm. The unit weighs 1.47 kg (3.25 lbs) , ensuring stable mounting in harsh environments. Its sealed housing protects internal electronics from dust and moisture ingress. Additionally, the front panel includes LED indicators for power, communications, and channel status.
Channel Configuration and Electrical Specifications
The IC660BBD024 provides 32 individually configurable channels for ultimate application flexibility. Users can program each channel as input, output, or output with feedback. Input channels accept 12/24 VDC signals with 3.3 kOhms impedance for reliable detection. Output channels deliver 0.5 Amps steady-state current per circuit with 4 Amp inrush capability.
Advanced Diagnostic and Protection Features
This module includes comprehensive switch fault diagnostics for rapid troubleshooting of field wiring issues. Each output channel monitors for open loads and short circuits continuously. The IC660BBD024 also provides 850 Volts of isolation between field and logic circuits. Consequently, it protects the Genius Bus network from ground faults and transients.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | GE Fanuc Emerson |
| Product Type | Discrete Block I/O |
| Series | Genius I/O |
| Model | IC660BBD024 |
| Number of Channels | 32 (configurable) |
| Input Voltage | 12/24 VDC |
| Input Impedance | 3.3 kOhms |
| Input Processing Time | 1.4 ms typical (plus filter) |
| Input Filter Options | 1-100 ms (selectable) |
| Output Current | 0.5 A per circuit steady-state |
| Output Inrush Current | 4 A for 10 ms |
| Total Block Output | 16 Amps maximum |
| Output Turn-On Delay | 0.5 ms maximum |
| Isolation Voltage | 850 Volts |
| Communication Protocol | Genius Bus |
| Dimensions (approx.) | 250 mm x 150 mm x 50 mm |
| Weight | 1.47 kg (3.25 lbs) |
Installation and Integration Benefits
The IC660BBD024 connects directly to the Genius Bus network using standard twisted-pair cabling. Its removable terminal blocks simplify field wiring and module replacement significantly. Users can mount this block locally on machinery away from the main control panel. Therefore, it reduces wiring costs and improves signal integrity for remote I/O applications.
