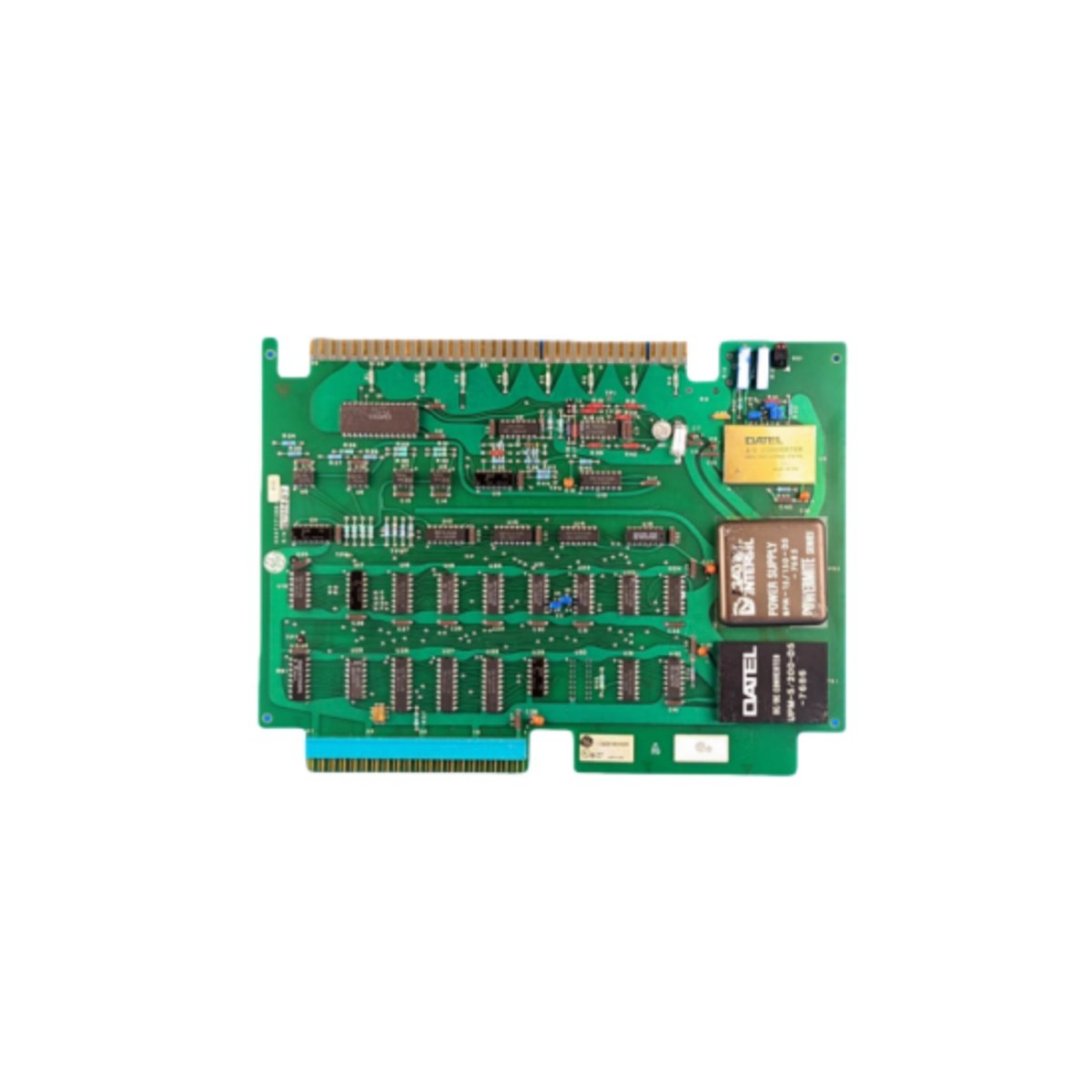

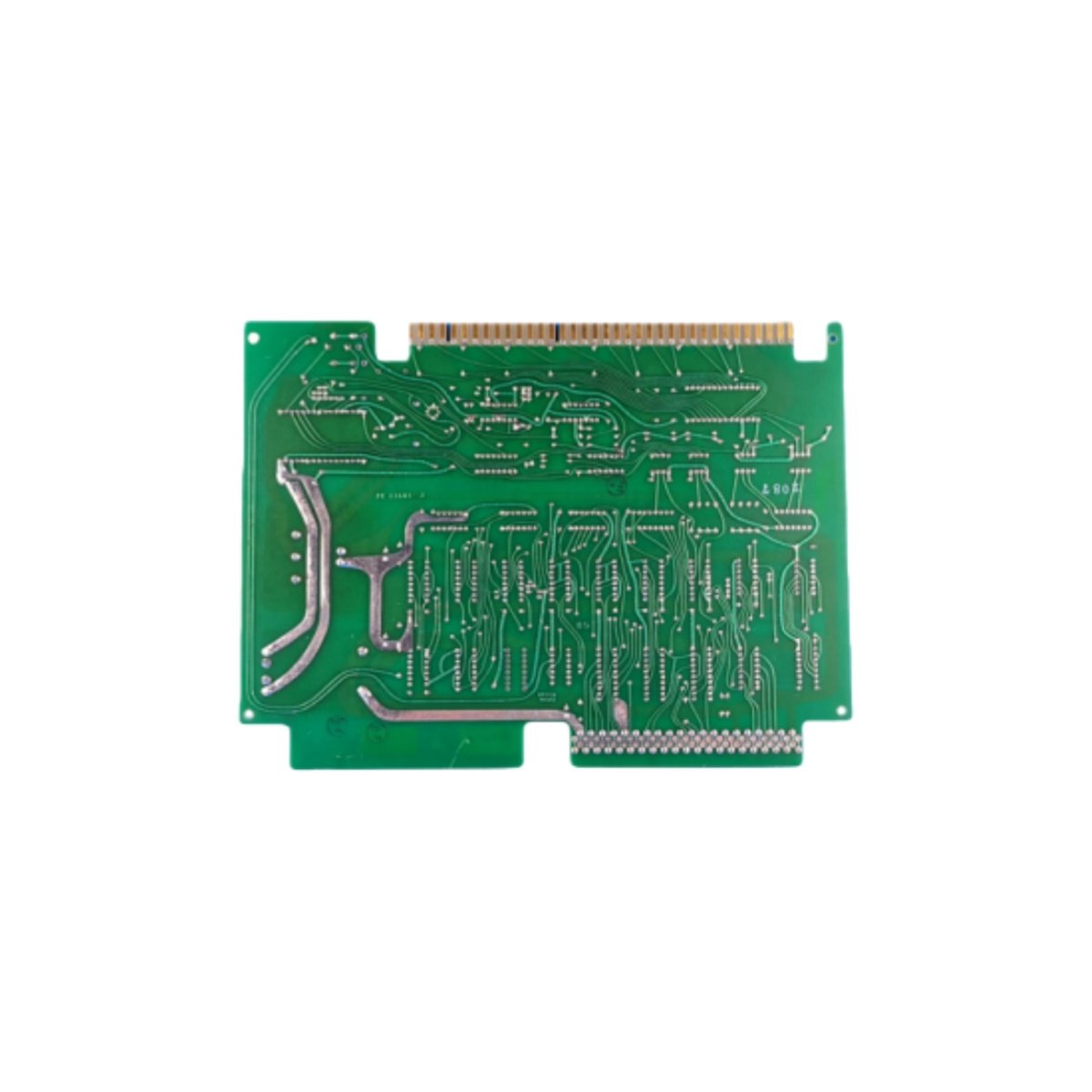

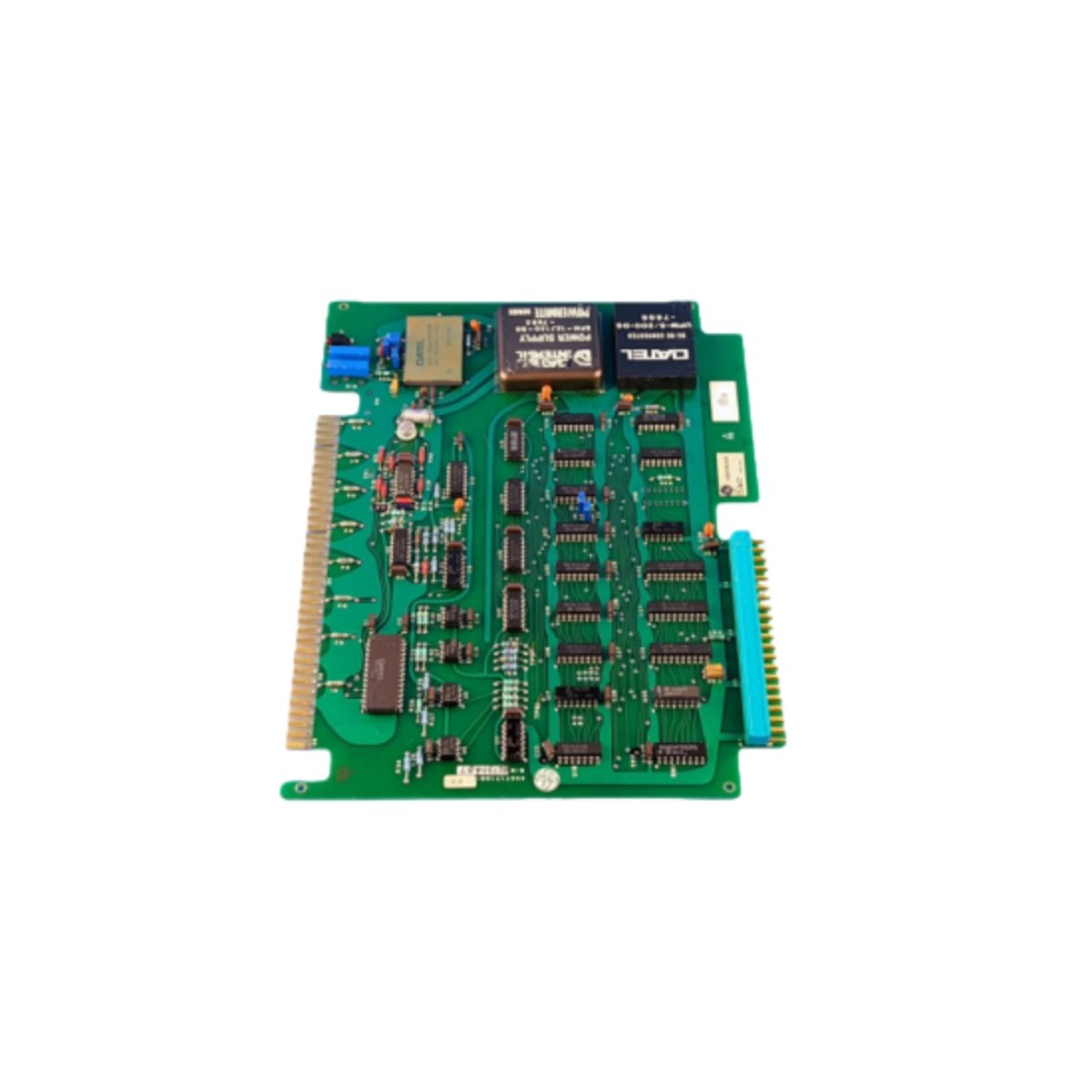

The GE IC600YB842 operates as a high-precision analog input module within the Versamax series from GE Fanuc Emerson. This module expertly converts real-world analog signals into digital data for industrial control applications. It therefore enables accurate monitoring of process variables like pressure, flow, and position.

Key Technical Specifications

We engineered the GE IC600YB842 to deliver reliable signal acquisition in demanding industrial environments. Its robust design ensures accurate measurements even in electrically noisy settings.

Input Configuration and Performance

The GE IC600YB842 features eight differential input channels that reject common-mode noise for superior accuracy. Each channel accepts signals across the full -10 V to +10 V industrial range. The module’s 12-bit resolution provides 4096 discrete steps for precise measurement representation.

Isolation and Protection Features

The GE IC600YB842 incorporates optical isolation between field inputs and the backplane interface. This isolation protects sensitive control electronics from voltage transients and ground loops. The module consequently maintains signal integrity even in harsh industrial environments.

Power and Environmental Specifications

The GE IC600YB842 requires a nominal 5 V DC power supply drawing 1.5 Amps from the backplane. Its operating temperature range of 0°C to 60°C suits most industrial control cabinet installations. The module also withstands storage temperatures from -20°C to 80°C during shipping.
