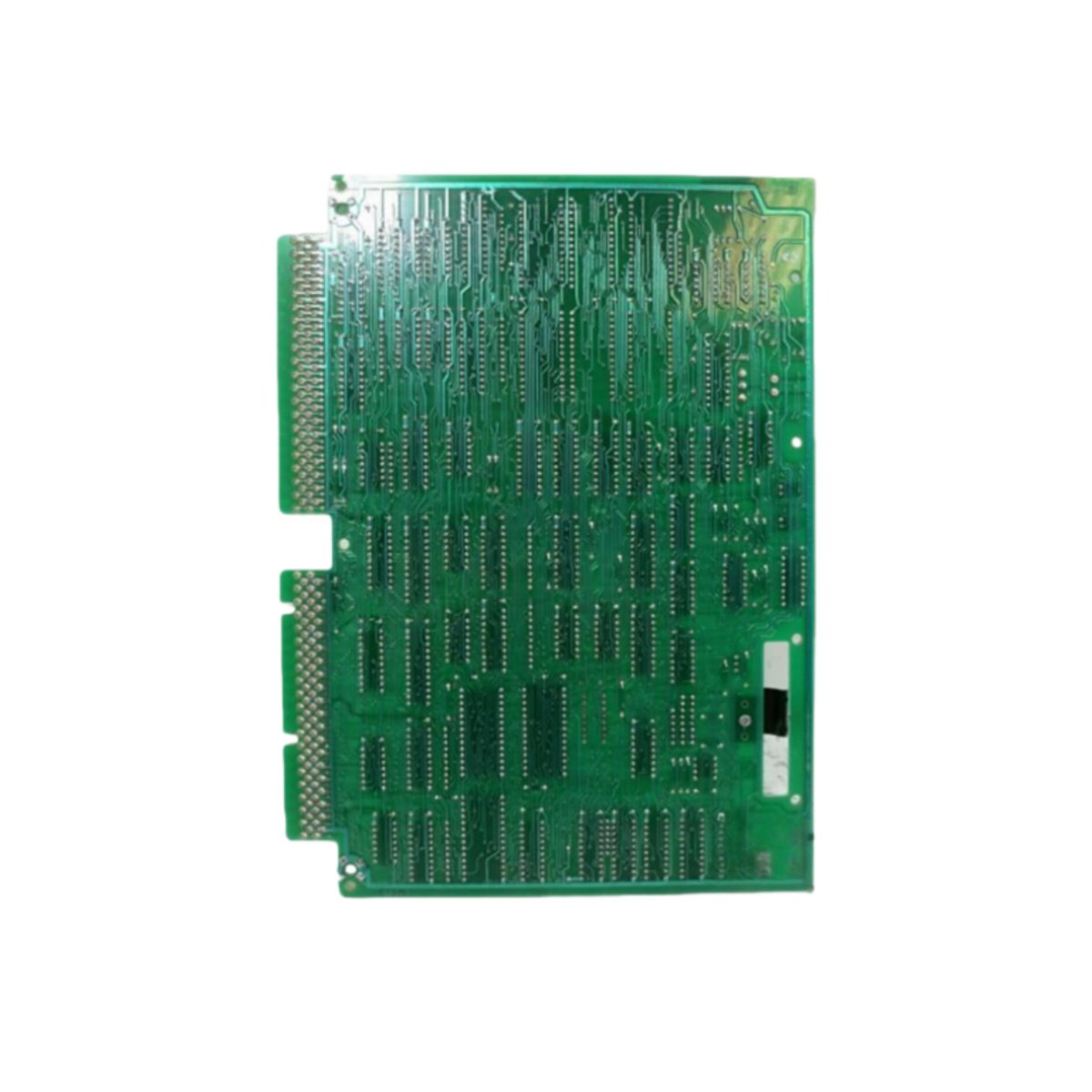

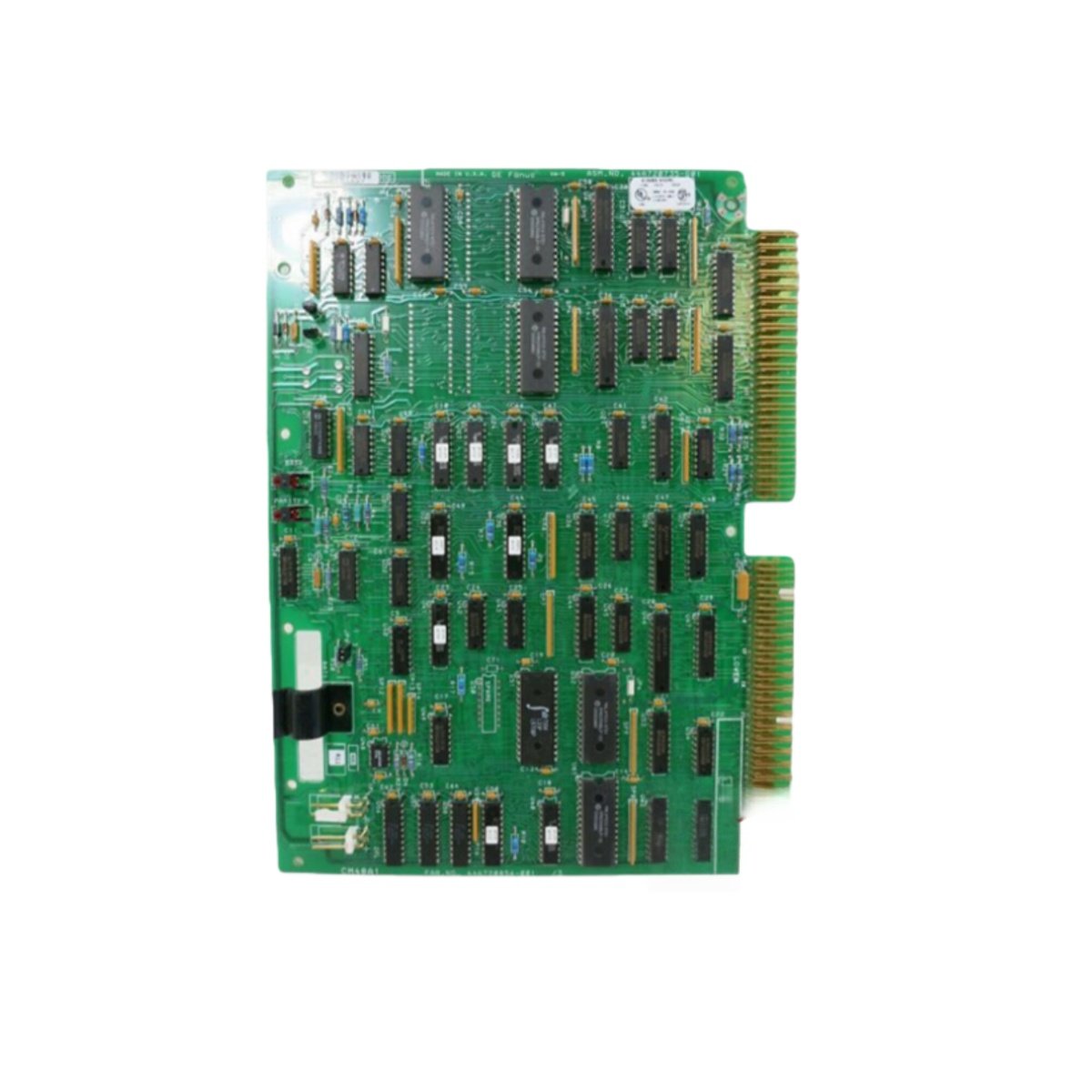

The IC600LX624 is a dedicated memory expansion module for the GE Series Six PLC platform. This unit significantly increases the controller’s data handling and program storage capacity. It provides robust, battery-backed memory for critical industrial logic and data retention.
Memory Configuration and Data Integrity
This GE Series Six module offers a substantial 16K words of logic memory for control programs. Additionally, it supplies 8K words of dedicated register memory for variable storage and data processing. A lithium manganese dioxide battery ensures reliable backup during main power loss. Furthermore, LED indicators give clear status feedback for module health and operation.
Detailed Technical Parameters
The table below outlines the precise physical and operational specifications for the IC600LX624.
| Parameter | Specification | |
|---|---|---|
| Manufacturer & Series | GE (Emerson) | Series Six |
| Module Model | IC600LX624 | |
| Module Type | Memory Expansion Module | |
| Logic Memory Capacity | 16,000 Words | |
| Register Memory Capacity | 8,000 Words | |
| Battery Backup | Yes, Supported | |
| Battery Chemistry | Lithium Manganese Dioxide | |
| Module Weight | 6.00 lbs (2.72 kg) | |
| Operating Temperature | 0°C to 60°C (outside of rack) | |
| Storage Temperature | -20°C to 70°C | |
| Operating Humidity | 5% to 95% (Non-condensing) | |
| Status Indicators | LED Indicators | |
| Primary Function | Program & Data Memory Expansion |
Application and Environmental Robustness
You install the IC600LX624 to expand the capabilities of your Series Six programmable controller. It is ideal for complex applications requiring extensive ladder logic and data tables. The module maintains reliable performance in challenging industrial environments. Its wide operating temperature and humidity range ensure stability in diverse factory conditions.
Details
| Weight | 1.8 kg |
|---|---|
| Dimensions | 76 × 203 × 102 mm |
