The GE IC3600TUAA1 functions as a specialized circuit board within the Speedtronic Mark I and Mark II turbine control systems. Engineers designed this board for specific signal processing and logic functions essential for turbine operation. The IC3600TUAA1D1B variant represents a revised version with enhanced component selection and updated trace routing.

Physical Characteristics and Construction

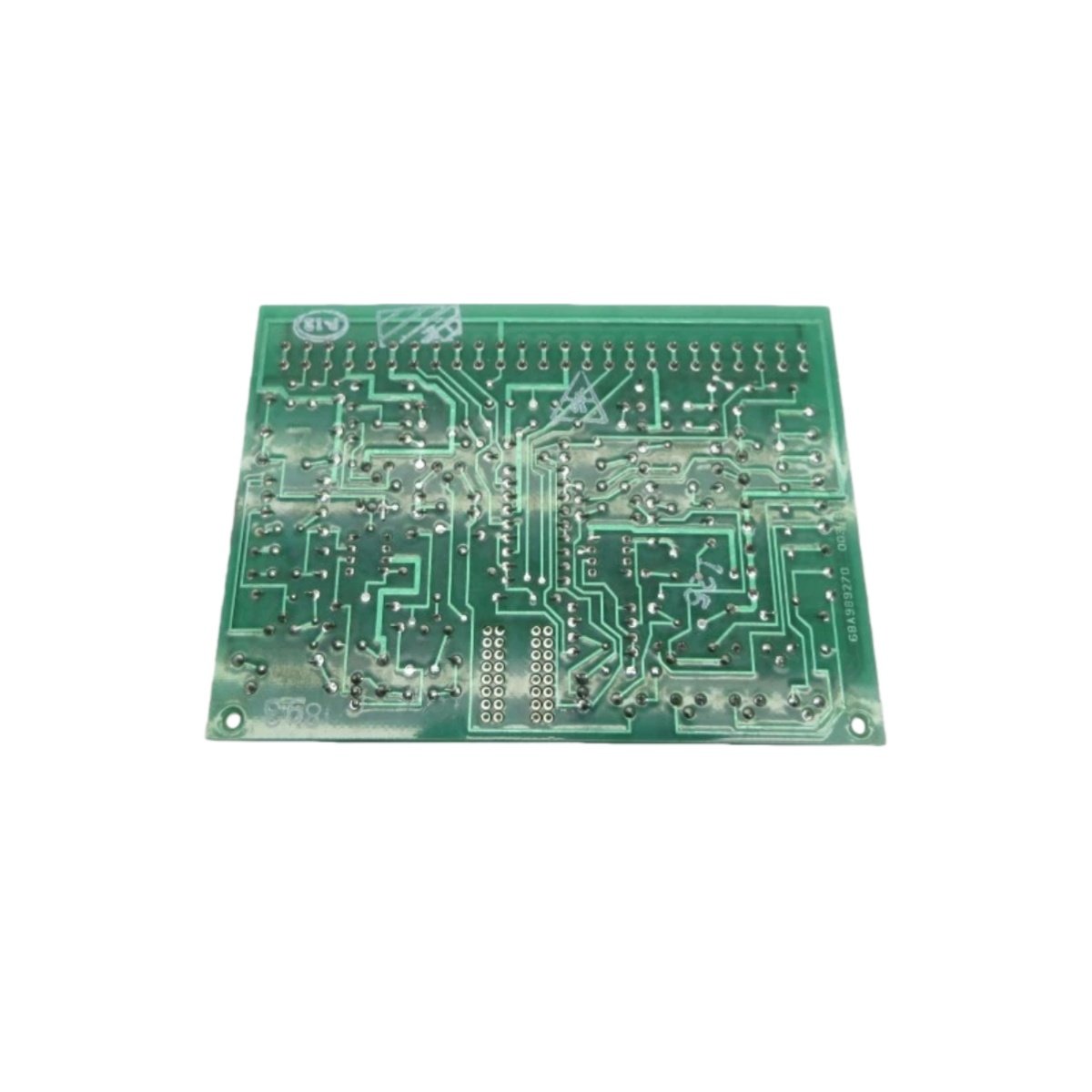

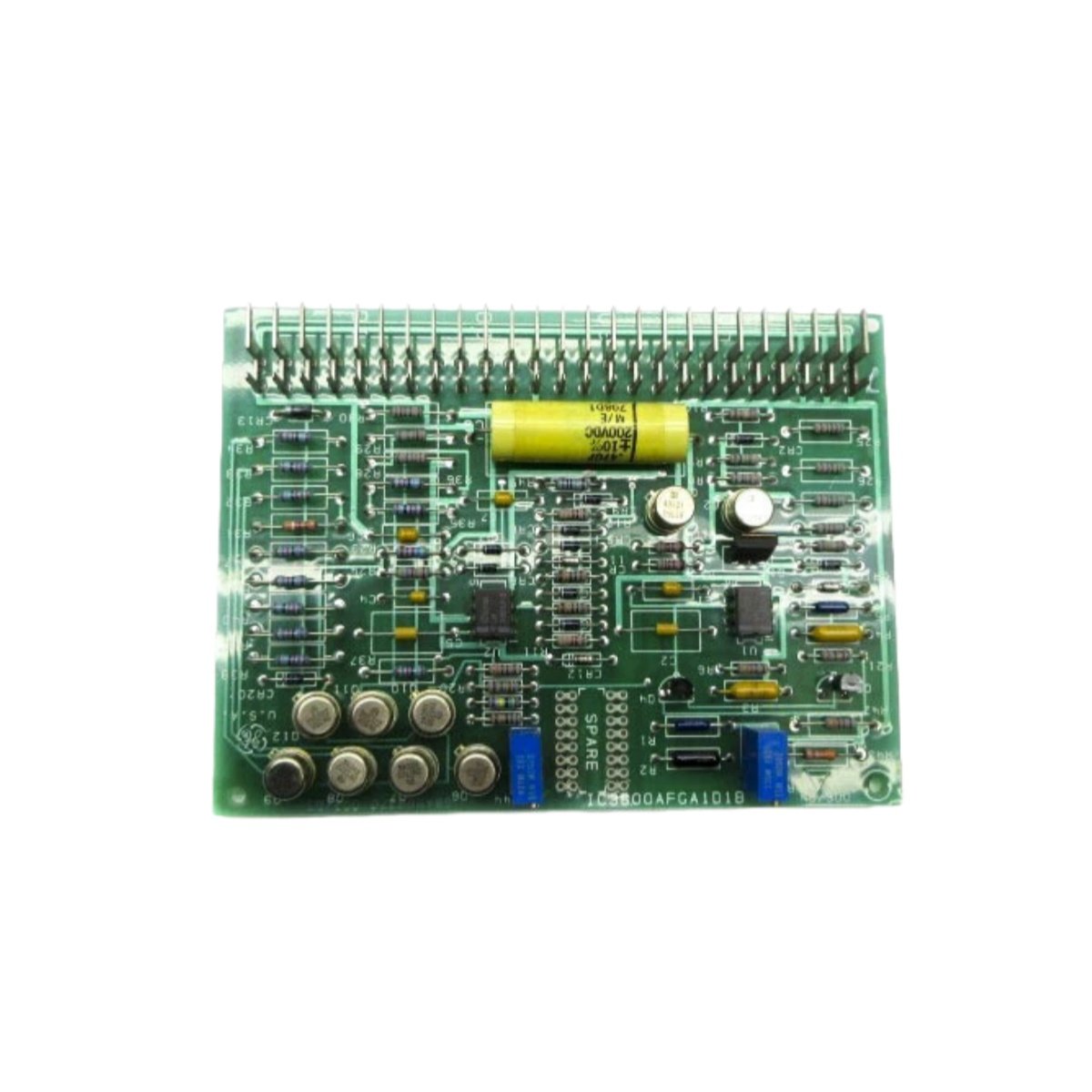

This circuit board features a standard epoxy-glass substrate with dimensions of approximately 30 centimeters in height and 15 centimeters in width. The board thickness measures 1.6 millimeters with double-sided copper traces for reliable signal integrity. Its total weight reaches roughly 0.5 kilograms, making it manageable for installation and replacement tasks. The green solder mask and gold-plated edge connectors reflect GE’s quality manufacturing standards.

Technical Specifications

Signal Processing Functions

The IC3600TUAA1 processes analog signals from turbine sensors before sending them to the main controller. Multiple operational amplifier stages provide gain and filtering for clean signal transmission. Comparator circuits establish threshold detection for alarm and trip conditions. Consequently, this board plays a vital role in protecting the turbine from unsafe operating conditions.

Component Layout and Accessibility

Engineers arranged components strategically for optimal signal flow and thermal performance. Test points appear at critical circuit nodes for troubleshooting with standard oscilloscope probes. Potentiometers allow field adjustment of calibration settings without removing the board. This thoughtful layout significantly simplifies maintenance and reduces system downtime.

Revision Differences

The IC3600TUAA1D1B revision incorporates updated components that improve long-term reliability. Later revisions use newer integrated circuits with better temperature stability and lower drift. The PCB trace routing also differs slightly to reduce noise pickup from adjacent boards. You can use either revision interchangeably in most Speedtronic rack configurations.

System Integration

This circuit board mounts in any standard slot within the Mark I or Mark II turbine control rack. The 72-pin edge connector interfaces directly with the backplane for power and signal distribution. Multiple boards work together to provide complete turbine protection and control functionality. The GE IC3600TUAA1 communicates with other modules through dedicated backplane signal paths.

Calibration and Adjustment

Field technicians can calibrate the board using the onboard multi-turn potentiometers. Each pot corresponds to a specific function such as gain, offset, or threshold setting. You should follow the technical manual procedures precisely for accurate calibration results. Regular calibration checks ensure continued proper operation of turbine protection functions.

Troubleshooting Features

Built-in test points provide easy access to monitor critical voltages and waveforms. Component labeling follows standard GE conventions for quick identification during repairs. The board’s modular construction allows replacement without disturbing field wiring. These features collectively reduce mean time to repair for the turbine control system.
