Overview & Application

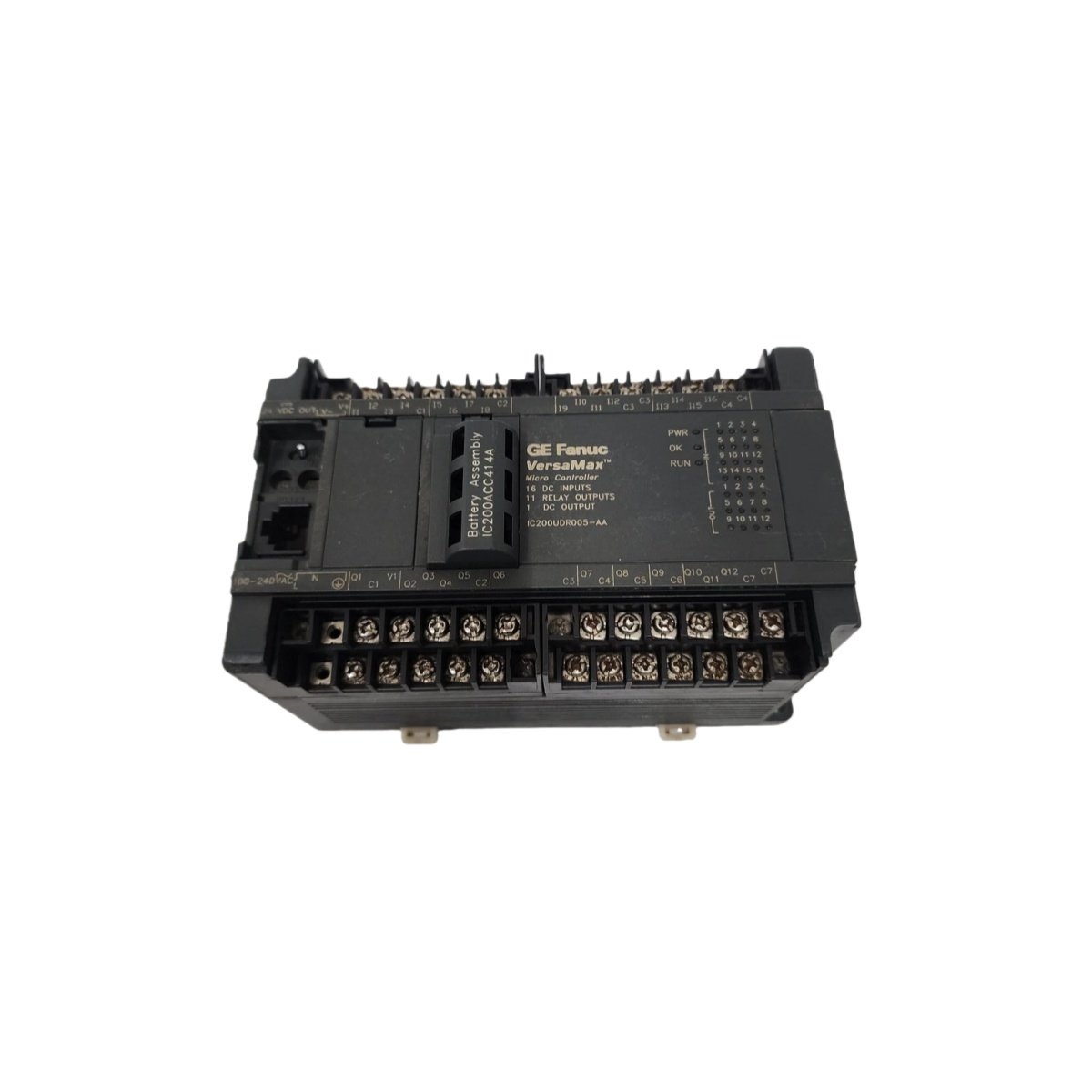

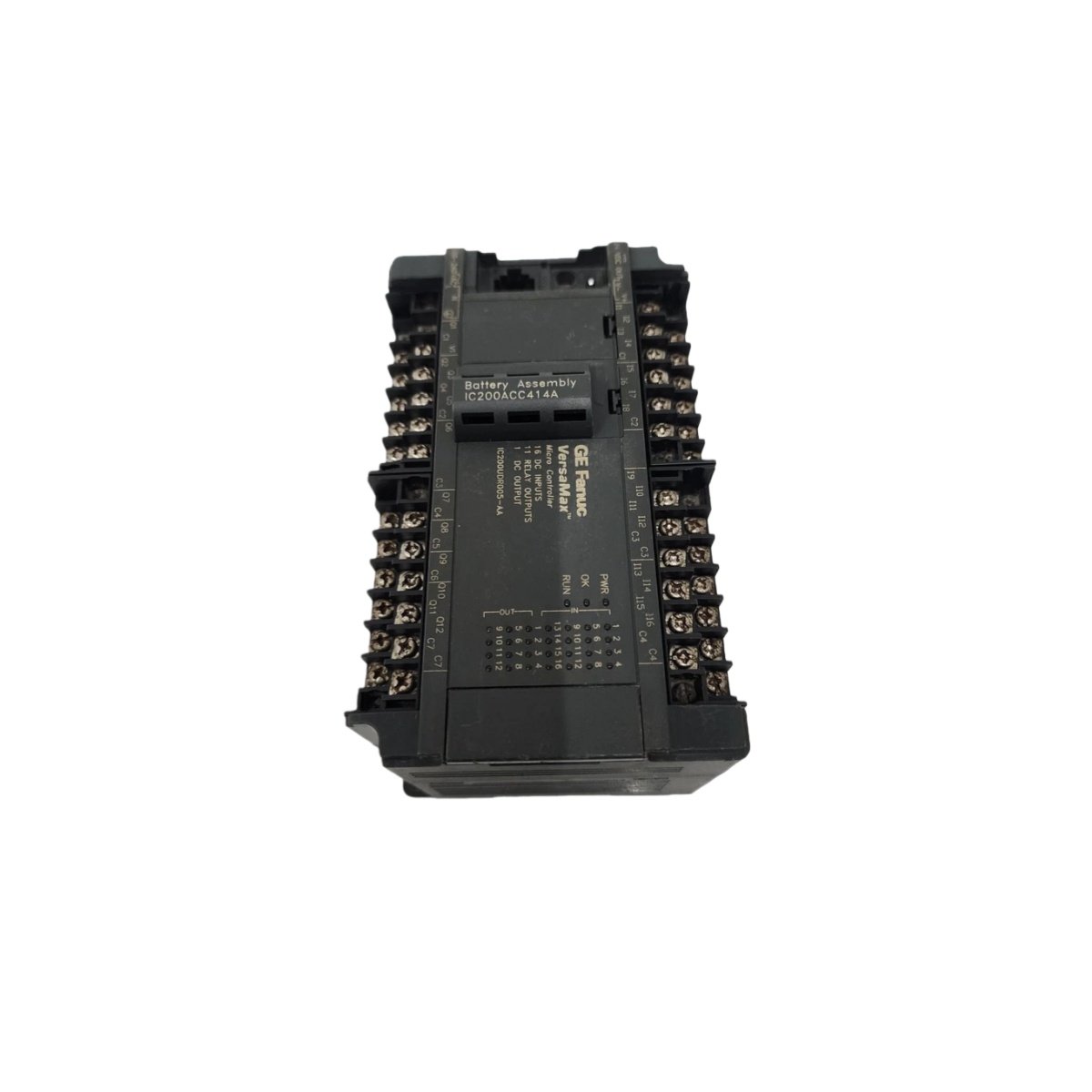

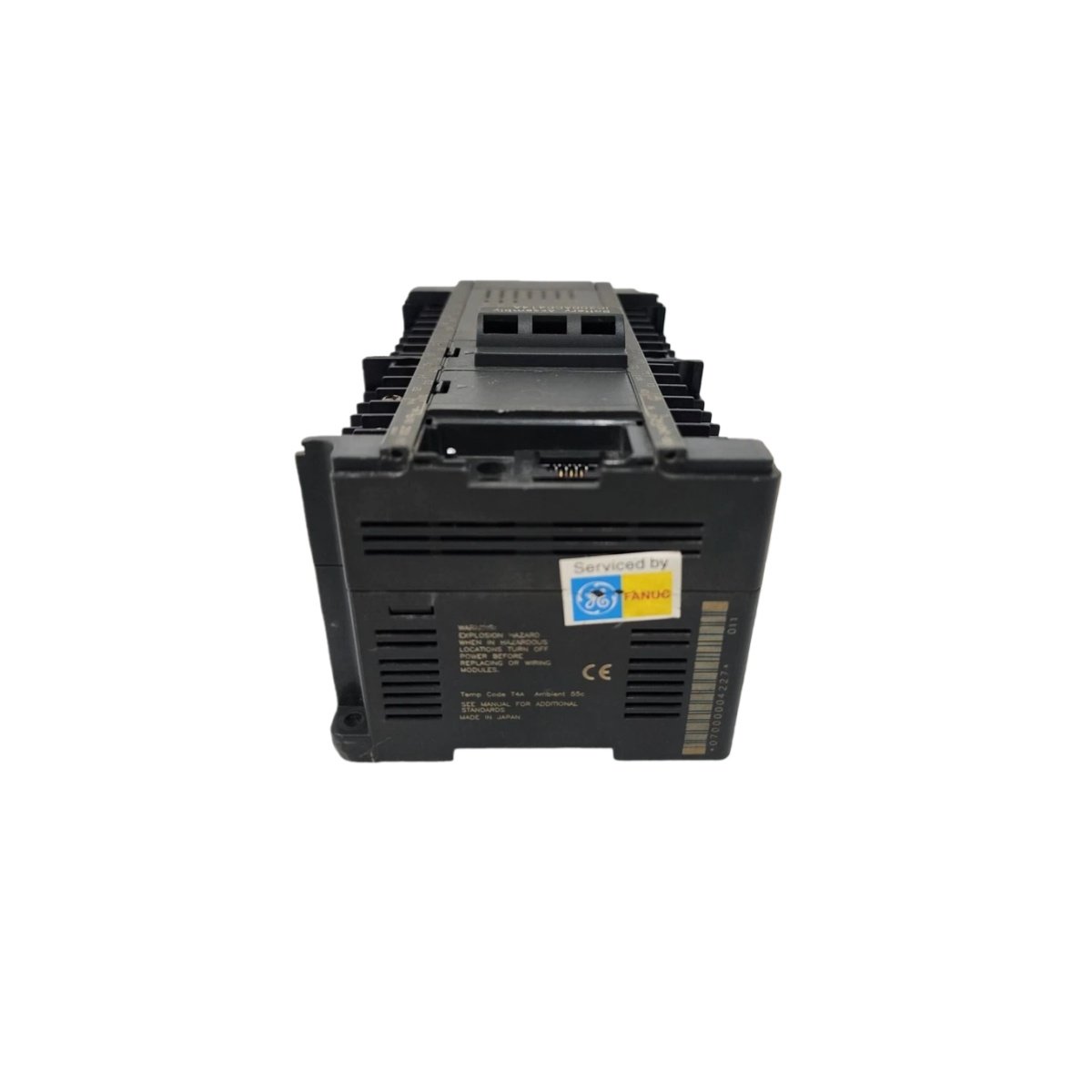

The IC200UDR005-AA is a versatile I/O module for the VersaMax Micro series from Emerson Automation. This unit provides a compact and integrated solution for small to medium-scale automation tasks. It combines essential control functions with localized I/O in a single package. Consequently, it simplifies panel layout and reduces overall system footprint effectively.
Core Technical Specifications
This GE Emerson module delivers reliable performance within precise electrical and physical parameters. The following table details its key technical attributes for integration.
| Specification Category | Detail |
|---|---|
| Manufacturer & Series | Emerson Automation (formerly GE), VersaMax Micro |
| Part Number | IC200UDR005-AA |
| Module Type | Micro Controller with Integrated I/O |
| Product Description | VersaMax Micro Programmable Controller |
| Typical I/O Capacity | Integrated mix of digital inputs and outputs* |
| Power Supply | Requires 24VDC input for operation |
| Communication Port | Integrated serial port for programming & comms |
| Programming Software | Compatible with Machine Edition Logic Developer |
| Mounting | Standard DIN-rail mounting |
| Physical Dimensions | Compact form factor for space-limited panels |
*Note: Exact I/O configuration is application-specific.
Design & Integration Benefits
The IC200UDR005-AA offers a streamlined design for cost-effective system deployment. Its integrated nature minimizes component count and accelerates wiring time. Furthermore, the module ensures seamless compatibility with the wider VersaMax Micro ecosystem. This makes it an ideal choice for standalone machines or distributed control nodes.
Details
| Weight | 0.79 kg |
|---|---|
| Dimensions | 150 × 120 × 170 mm |
