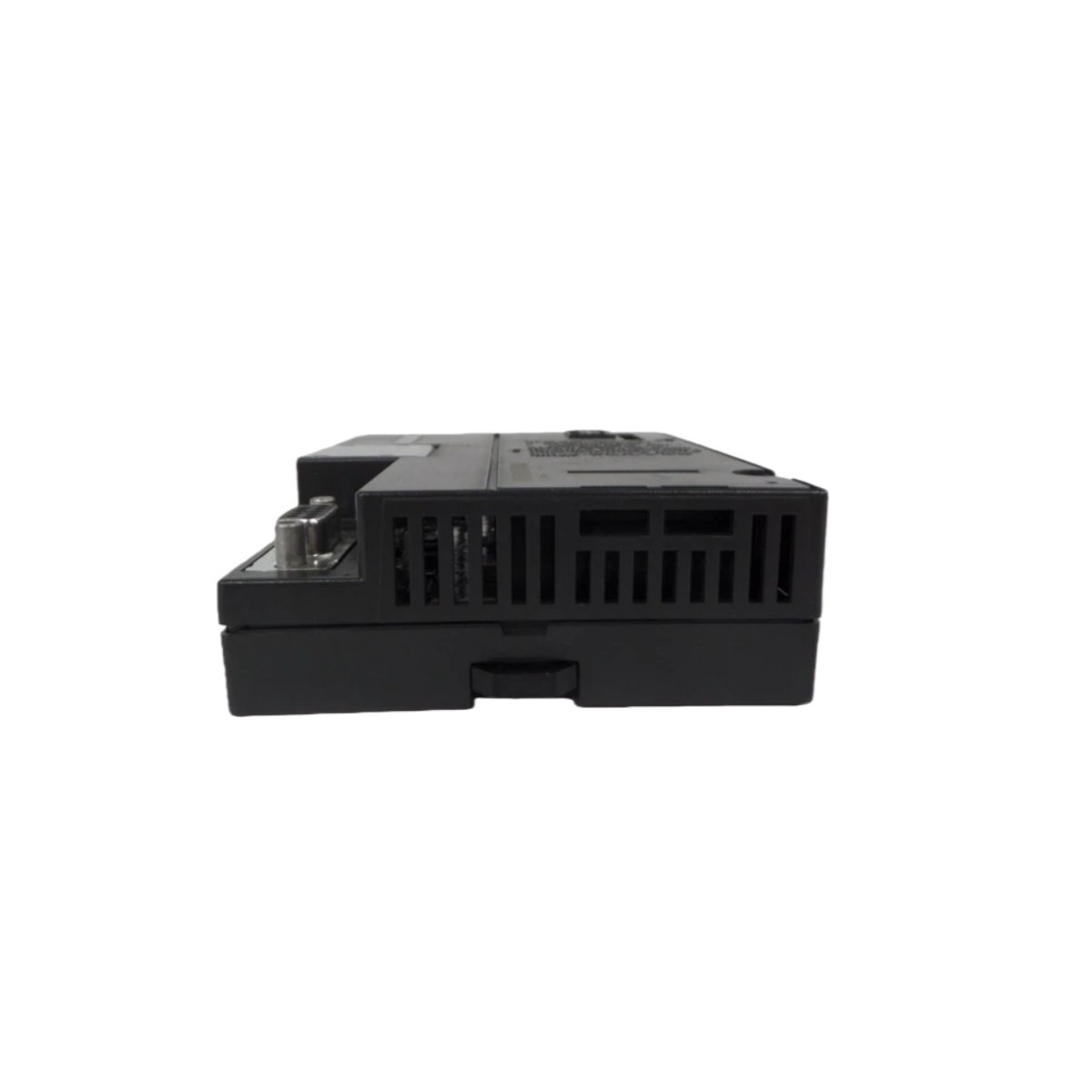

The GE IC200PBI001 serves as a Profibus Network Interface Unit within the VersaMax series. This module, originally from GE Fanuc, acts as the communication gateway for the PLC rack. Moreover, it enables seamless data exchange between the controller and a Profibus-DP network.

Core Communication Functions and Specifications

This NIU supports a wide range of network data rates from 9.6 K baud up to 12 M baud. It allows the configuration of a network address within the range of 1 to 125. Furthermore, the module can manage data for up to 64 discrete or analog I/O modules on the local bus.

Detailed Technical Specifications

The IC200PBI001 combines essential communication features in a compact, efficient design. Below is a comprehensive list of its critical technical parameters.

Technical Specifications:

• Manufacturer & Model: GE (Fanuc) IC200PBI001

• Product Series: VersaMax PLC System

• Category: Network Interface Unit (NIU)

• Network Protocol: Profibus-DP (Decentralized Periphery)

• Supported Data Rates: 9.6 Kbaud, 19.2 Kbaud, 93.75 Kbaud, 187.5 Kbaud, 500 Kbaud, 1.5 Mbaud, 3 Mbaud, 6 Mbaud, 12 Mbaud

• Address Range: Configurable from 1 to 125 on the Profibus network

• Local I/O Capacity: Supports up to 64 local I/O modules

• Diagnostics: Provides 5 bytes of user-accessible diagnostic data

• Current Consumption: 250 milliamperes from the backplane

• Form Factor: Standard VersaMax series module

• Dimensions: Designed to fit the VersaMax rack mounting system

• Weight: 0.31 lbs (0.14 kg)

• Electrical Interface: Profibus connector (typically 9-pin D-sub) and VersaMax backplane connector

• Internal Components: Includes Profibus ASIC, microprocessor, and isolation circuitry

• Status Indicators: Features LEDs for network status, power, and communication activity

System Integration and Industrial Applications

The IC200PBI001 is essential for integrating VersaMax PLCs into factory-wide Profibus automation networks. It connects controllers to remote I/O stations, drives, and other smart devices. This module often operates in systems alongside other critical components, such as power supplies and CPUs. For comprehensive solutions, it can be part of larger control schemes that include protective devices like the RMS-TSG-TZ-C Static Trip unit or monitoring sensors such as the PR6423/128-110.
