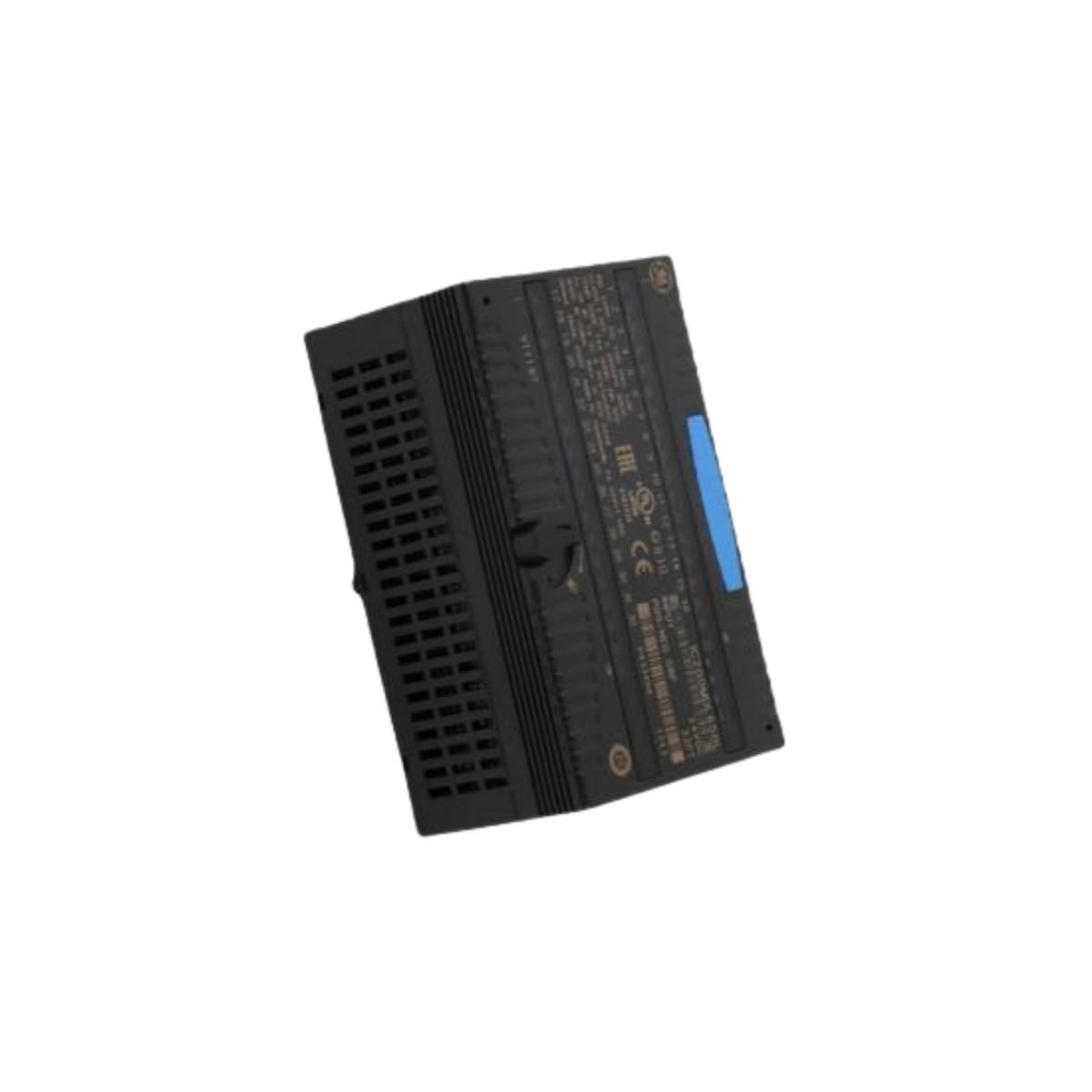

The GE IC200MDL650 is a high-density discrete input module for the VersaMax I/O series. Originally from GE Intelligent Platforms and now under Emerson Automation, this module reliably interfaces field devices with your control system. It efficiently handles thirty-two digital input signals, organizing them into four manageable groups. Consequently, it provides excellent flexibility for complex industrial monitoring applications.

Key Electrical and Physical Specifications

This module operates with a nominal input voltage of 24 VDC per channel. Each input accepts a signal range from 0 to 30 VDC, ensuring compatibility with standard sensors. The required input current for each point falls between 2.0 and 5.5 milliamps. For system power, the IC200MDL650 draws only 50 milliamps from the VersaMax backplane.

Furthermore, the module supports both positive and negative logic wiring configurations. This dual-logic design offers significant flexibility for various sensor types and control schemes. The compact unit weighs just 0.69 pounds (0.31 kilograms), simplifying handling and installation.

Module Configuration and Integration

Engineers designed the IC200MDL650 with a clear, logical channel structure. Its thirty-two inputs are divided into four distinct groups of eight channels each. This grouping simplifies wiring and troubleshooting during system commissioning and maintenance. The module features a standard VersaMax form factor for secure mounting on a DIN rail or backplane.

Its internal Module ID is 80088008, ensuring proper recognition by the VersaMax CPU. The robust construction ensures reliable performance in typical industrial environments. Professionals sourcing such components may also find related control modules, like protective relays, on major industrial platforms.

Comprehensive Technical Specifications

Below is a detailed table of the primary specifications for the IC200MDL650 module.

Details
