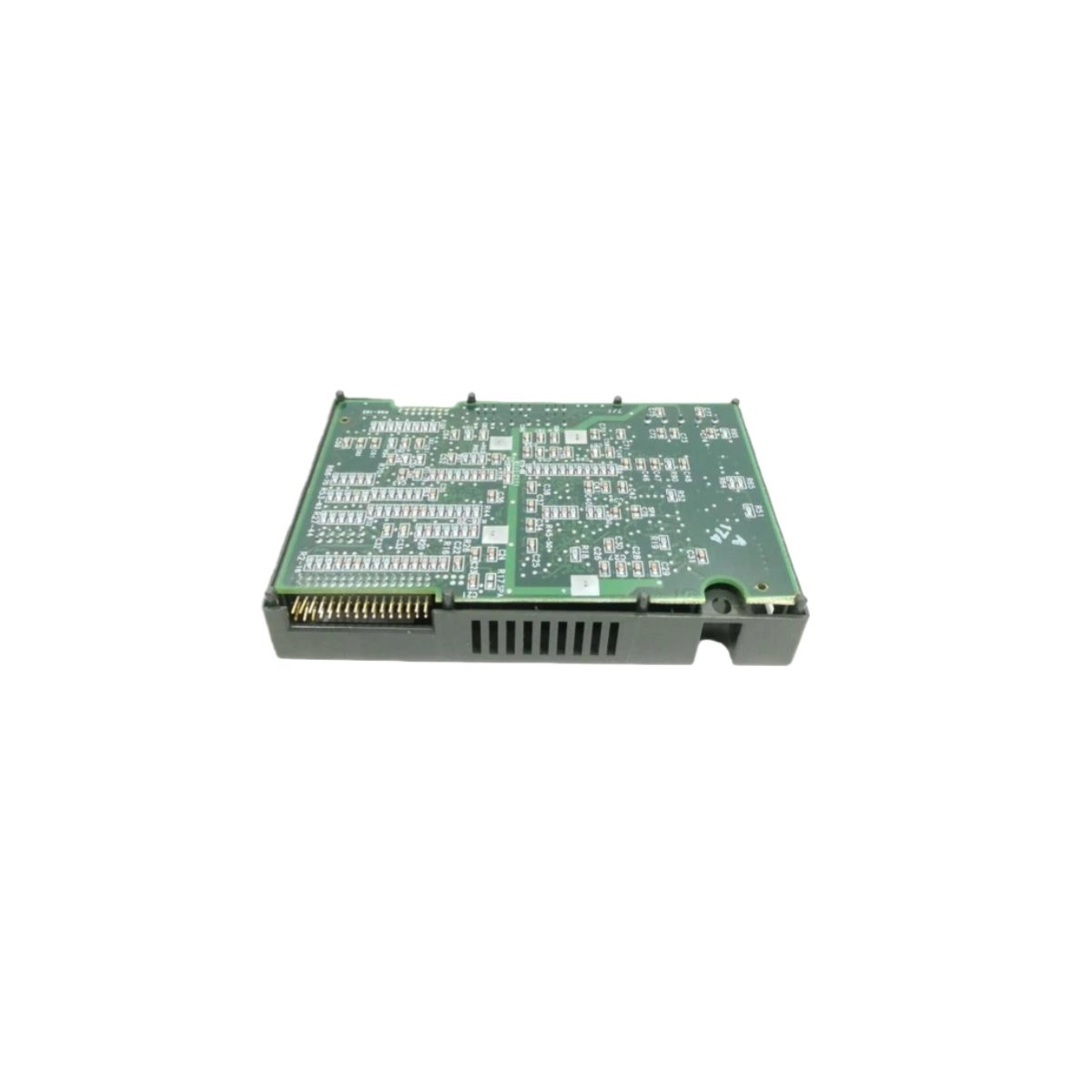

The GE IC200DBI001 remote I/O unit functions as a DeviceNet slave interface. This unit weighs 0.41 kg and measures 12.0 cm x 9.0 cm x 6.5 cm. It supports three selectable baud rates for flexible network integration. The unit contains one communication processor and two status LED indicators. For energy storage, it includes one 330µF aluminum capacitor. Consequently, the GE IC200DBI001 maintains network configuration during brief power interruptions.
Technical Specifications
The table below lists all verified parameters for the GE IC200DBI001. Use this data for your system integration planning.
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IC200DBI001 |
| Category | DeviceNet Network Interface Unit (Slave) |
| Series | VersaMax |
| Weight | 0.41 kg |
| Dimensions (L x W x H) | 12.0 cm x 9.0 cm x 6.5 cm |
| Baud Rate Options | 125 kbps, 250 kbps, 500 kbps |
| Bus Length (125 kbps) | 500 meters |
| Bus Length (250 kbps) | 250 meters |
| Bus Length (500 kbps) | 100 meters |
| I/O Data Size | 128 bytes input, 128 bytes output |
| Modules per Station | 8 modules maximum |
| Onboard Components | 1 processor, 2 LED indicators |
| Energy Storage | 1x 330µF aluminum capacitor |
| Connector Type | 1x 5-pin open-style connector |
| Power Supply | 24V DC ±10% |
| Typical Current Draw | 150 mA |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
DeviceNet Communication Features
The GE IC200DBI001 operates as a DeviceNet slave device on a master network. You can select from 125, 250, or 500 kbps baud rates. Therefore, the unit matches the speed of your existing DeviceNet network. The bus length changes with each baud rate selection. Specifically, choose 125 kbps for a 500-meter cable run. Alternatively, select 500 kbps when your network spans only 100 meters.
I/O and Station Capacity
This remote I/O unit handles 128 bytes of input and 128 bytes of output data. Consequently, it supports a wide range of field devices. Each GE IC200DBI001 station accommodates up to 8 VersaMax I/O modules. Thus, you can build a compact and scalable remote I/O rack. The unit maps all I/O data directly to the DeviceNet master controller.
Power and Energy Storage
The GE IC200DBI001 draws 150 mA from a 24V DC supply. Hence, its total power consumption equals 3.6W. The onboard 330µF capacitor provides 10 milliseconds of hold-up time. This short backup protects network parameters during minor voltage sags. Moreover, the unit includes reverse polarity protection on its power input.
Installation and Connectivity
You can mount the GE IC200DBI001 on a standard DIN rail. Alternatively, secure it with M4 screws through its mounting tabs. The 5-pin open-style connector handles both network and power wiring. For reliable communication, use dedicated DeviceNet trunk and drop cables. The GE IC200DBI001 works seamlessly with the RMS-TSG-TZ-C static trip unit.
Environmental Durability
This remote I/O unit operates reliably from 0°C to +60°C. It also withstands 95% relative humidity without condensation. The unit survives vibration up to 2g from 10 to 150 Hz. Therefore, the GE IC200DBI001 suits most industrial automation cabinets perfectly.
