Core Processing Capabilities

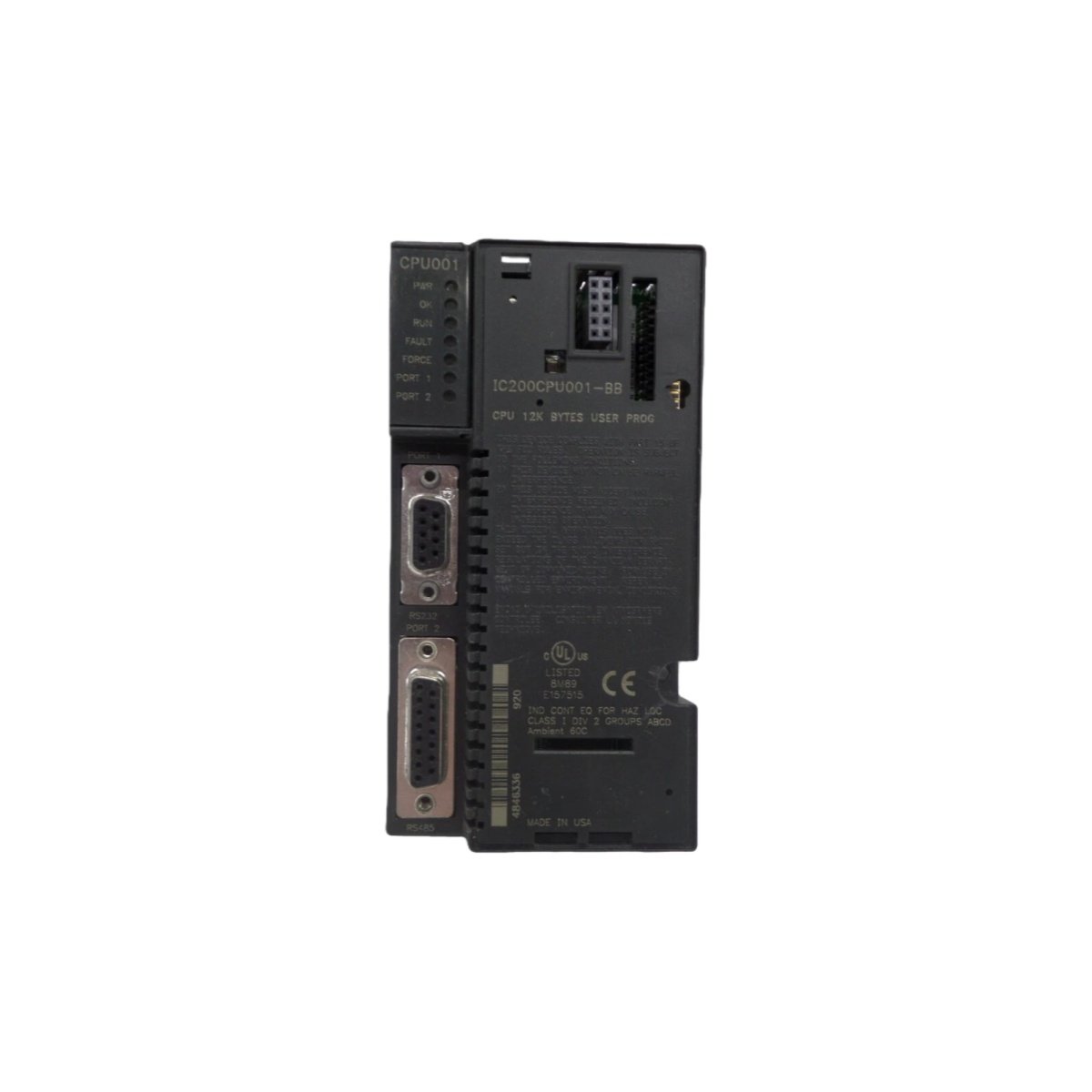

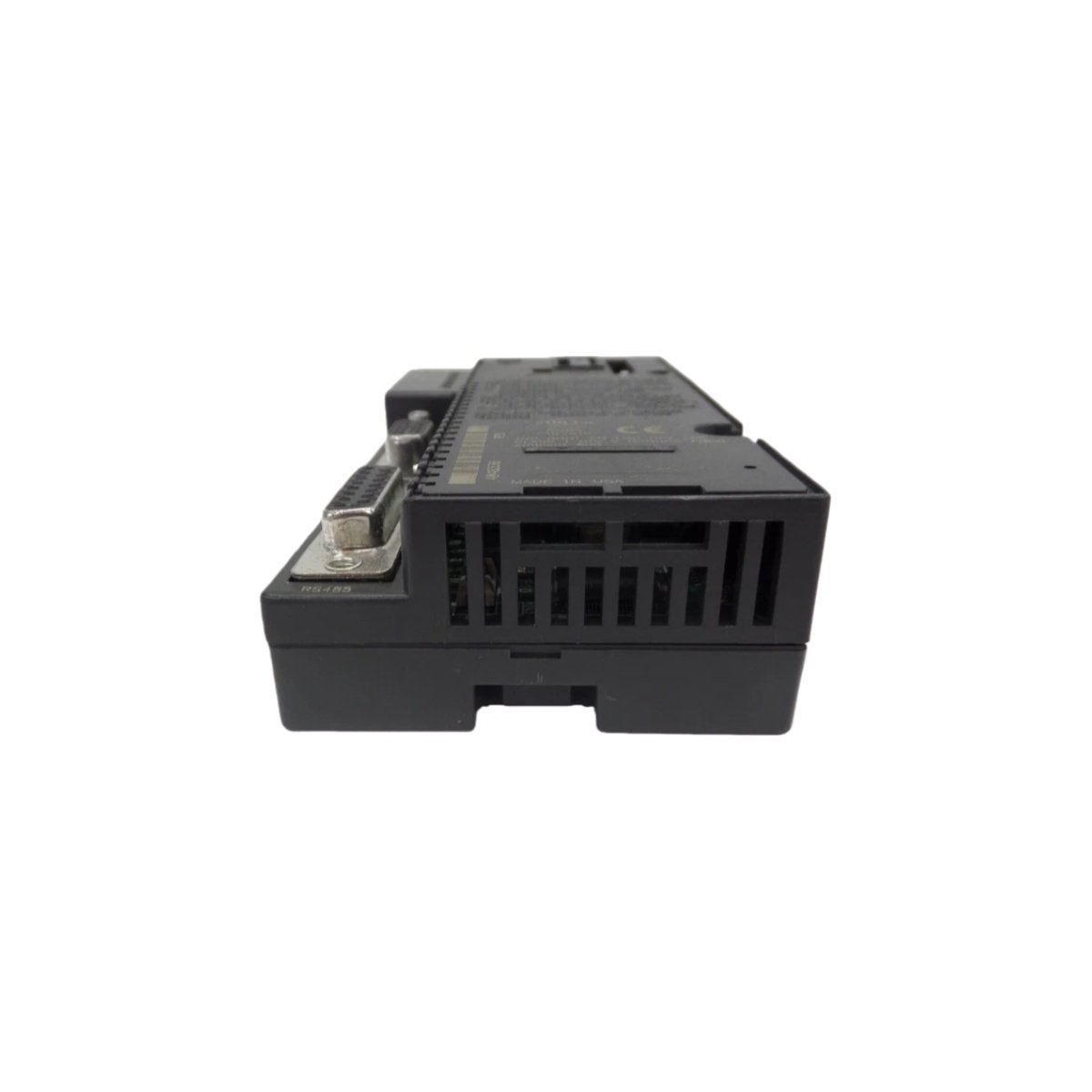

The IC200CPU001 serves as the primary controller for the VersaMax system from Emerson Automation. This compact CPU delivers robust logic execution with a speed of 1.8 ms per K of Boolean logic. It efficiently manages large I/O counts, supporting up to 2048 discrete inputs and 2048 discrete outputs. Furthermore, the unit handles floating-point math for advanced data processing tasks.
Detailed Technical Specifications
The IC200CPU001 from Emerson Automation (formerly GE) is engineered for reliable performance. Below are its key technical parameters that define its operational scope and integration capabilities.
| Specification Category | Detail |
|---|---|
| Manufacturer & Series | Emerson Automation (formerly GE), VersaMax |
| Part Number | IC200CPU001 |
| Module Type | Central Processing Unit (CPU) |
| User Memory | 34 KB (Configurable for program, data, registers) |
| Boolean Execution Speed | 1.8 ms/K (Typical) |
| Discrete I/O Capacity | 2048 Inputs / 2048 Outputs |
| Internal Bits | 1024 Discrete Internal Bits, 256 Temporary Bits |
| Communication Ports | 1 x RS-232, 1 x RS-485 |
| Supported Protocols | SNP Slave, RTU Slave, Serial I/O |
| Real-Time Clock | Battery-backed for scheduled logic & timers |
| Programming Languages | Ladder Diagram (LD), Instruction List (IL) |
| Physical Weight | 0.25 lbs (0.11 kg) |
Integration & Communication Features
The IC200CPU001 includes integrated serial ports for versatile connectivity. These ports facilitate communication with HMIs, SCADA systems, and distributed I/O networks. Moreover, its battery-backed real-time clock enables precise time-based logic scheduling. Engineers program this CPU using established GE Emerson software tools like Logic Developer.
Details
| Weight | 0.79 kg |
|---|---|
| Dimensions | 150 × 120 × 170 mm |
