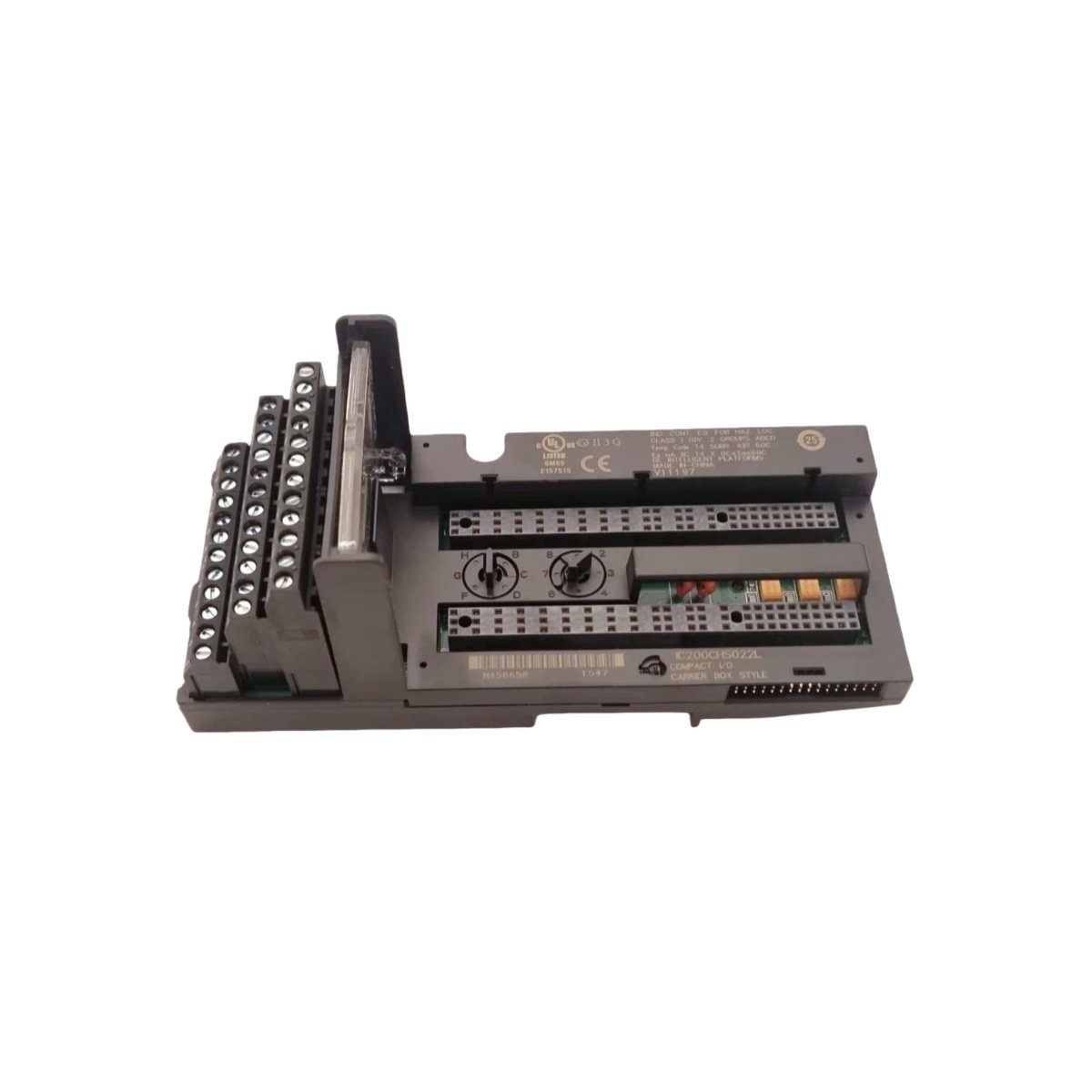

The IC200CHS022 functions as a compact box-style I/O carrier module within the VersaMax automation platform. Emerson Automation currently manufactures this carrier, continuing the legacy of GE Intelligent Platforms. Engineers use this module to terminate field wiring for up to 36 I/O points efficiently. Consequently, the IC200CHS022 simplifies cabinet wiring while maximizing space utilization.

Core Terminal Architecture

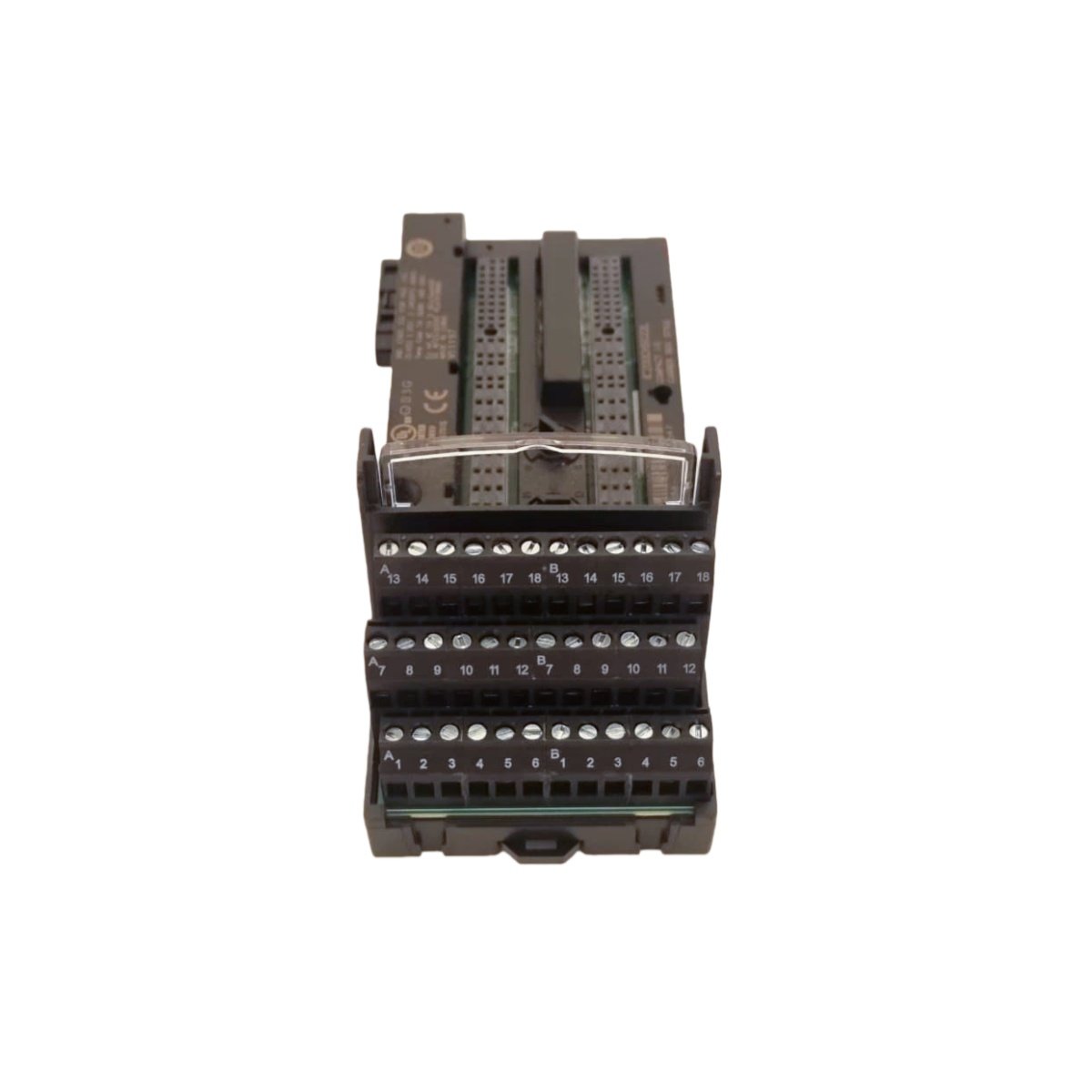

The IC200CHS022 features three terminal strips with 36 positions labeled A1 through A18 and B1 through B18. This arrangement provides organized access for field device connections in industrial applications. Each terminal accepts solid or stranded copper wires with specific gauge requirements. The carrier accommodates voltages up to 264 VAC across its terminals safely. Such design ensures maintainable field wiring terminations in industrial environments.

Technical Specifications

Understanding the exact specifications of the IC200CHS022 ensures proper field wiring practices and reliable connections. Below you will find a detailed breakdown of its physical and electrical characteristics:

Wiring and Current Capabilities

The IC200CHS022 accepts single wire connections from AWG #14 down to AWG #22 for maximum flexibility. For two wires per terminal, the carrier accepts AWG #18 conductors exclusively. Each individual point handles up to 2 Amps continuously without excessive temperature rise. The power and ground segments collectively support up to 8 Amps for distribution.

Integration with VersaMax Systems

The IC200CHS022 accommodates all VersaMax series I/O modules for complete system flexibility. Users simply mount the desired input or output module onto this carrier base. The carrier then provides all necessary field wiring terminations for that module. This modular approach allows facilities to standardize on a single carrier design.
