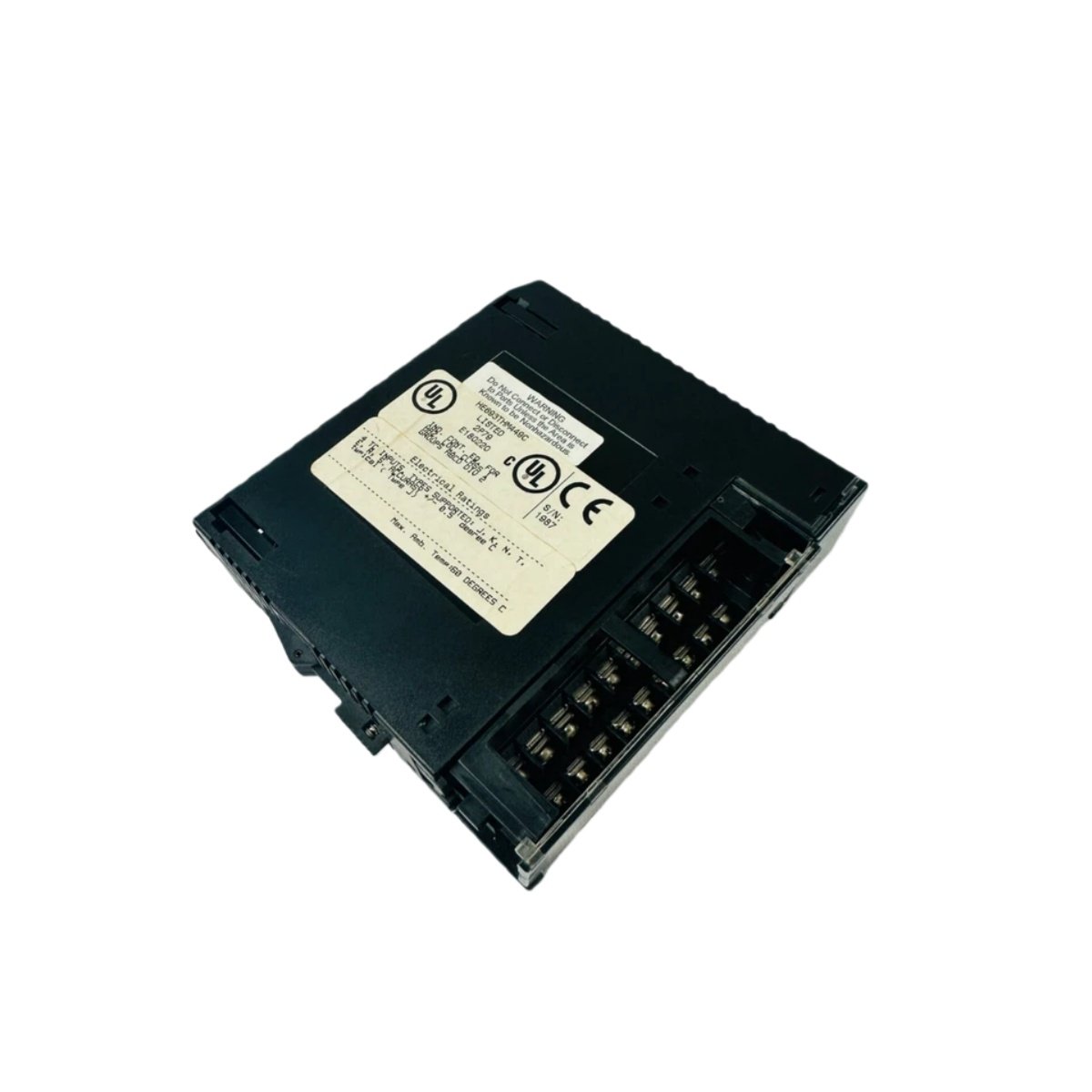

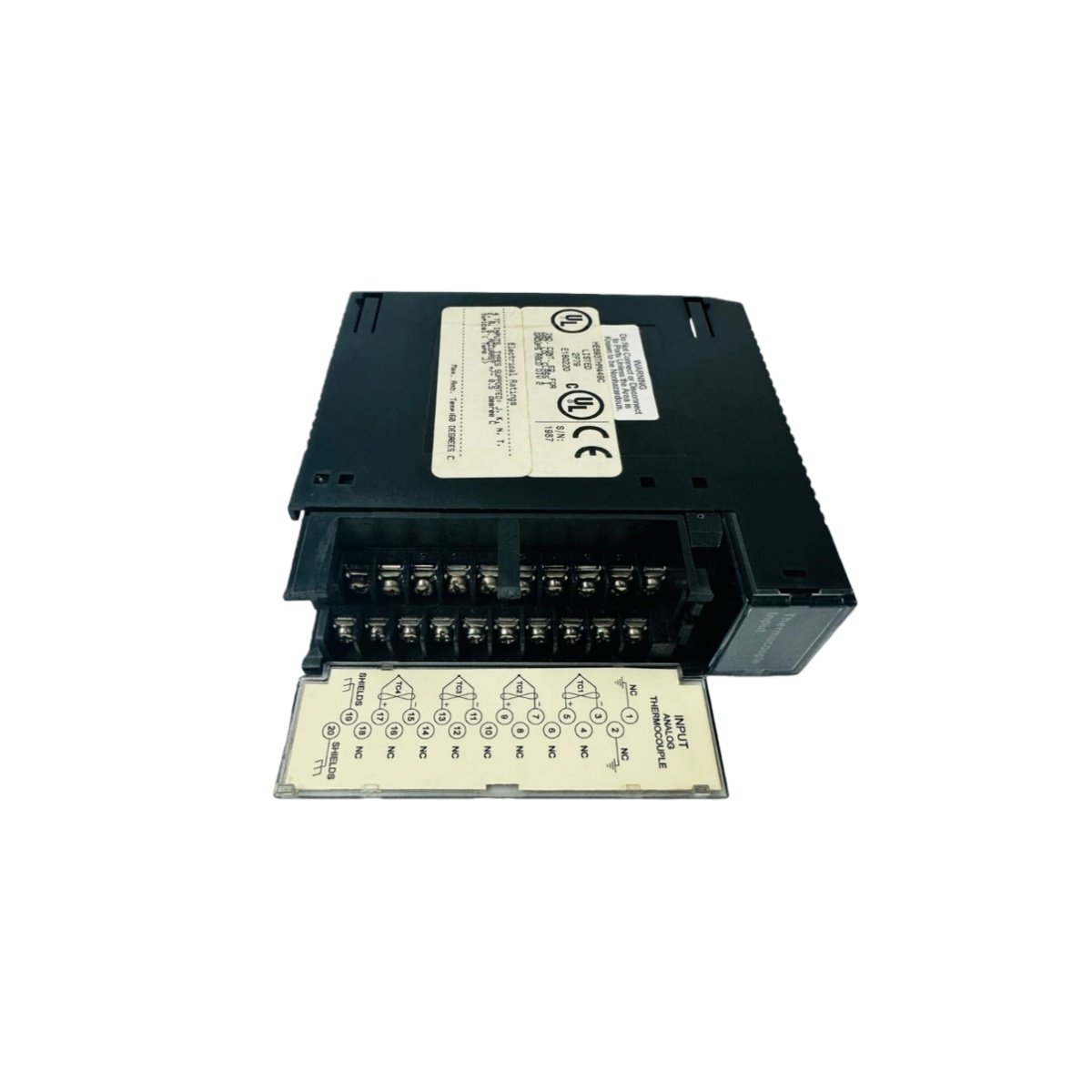

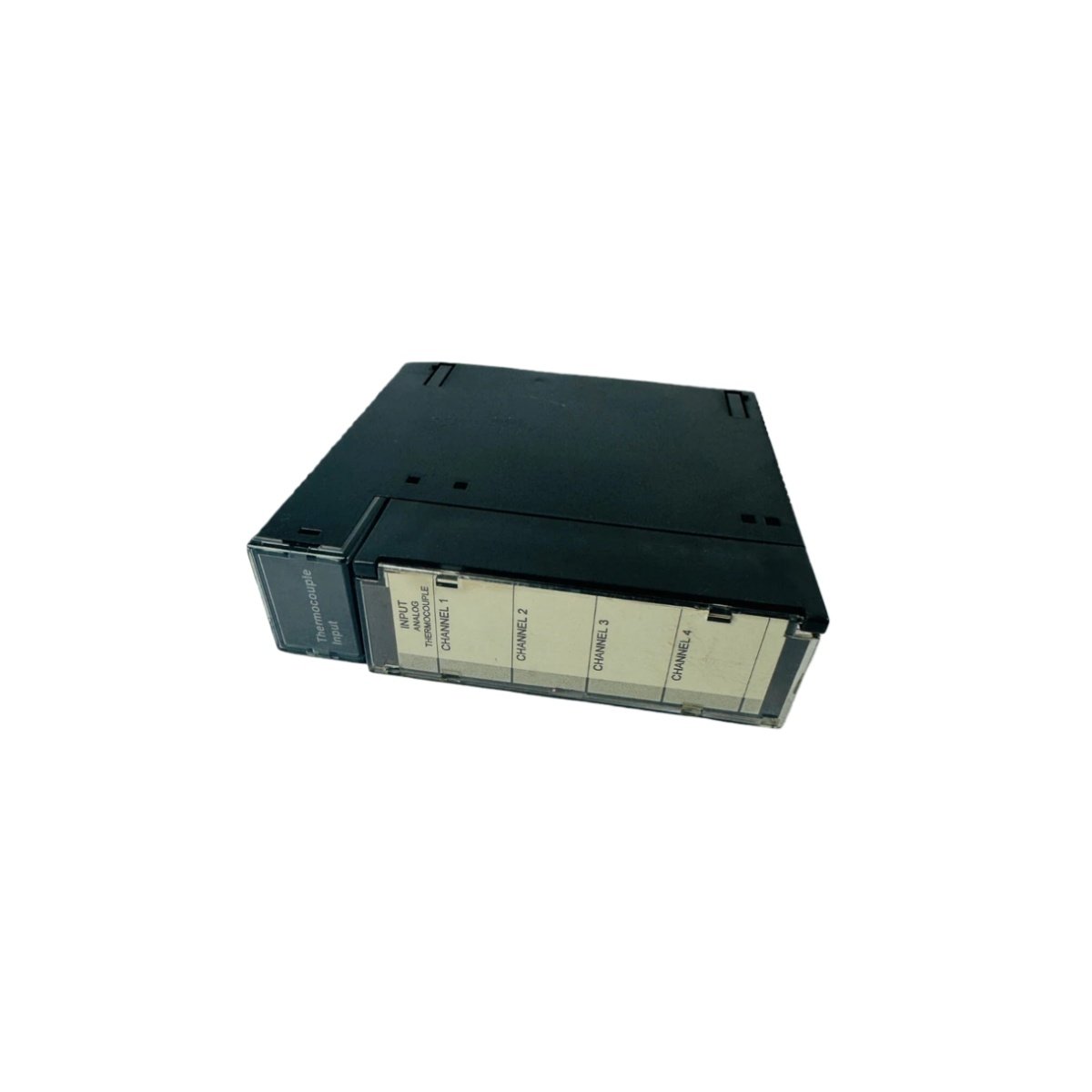

The GE HE693THM449 functions as a specialized thermocouple input module for GE Series 90-30 programmable logic controller systems. We design this module to interface directly with multiple thermocouple sensors for accurate temperature measurement. Its advanced signal conditioning circuitry converts low-level thermocouple signals into usable digital values for the PLC. This input module enables precise temperature monitoring and control in industrial automation applications.

Key Features and Measurement Benefits

The GE HE693THM449 delivers accurate temperature readings through its high-resolution analog-to-digital conversion and cold junction compensation. This module accepts multiple thermocouple types for flexible application matching. Consequently, it provides reliable temperature data for process control, monitoring, and alarm functions. Furthermore, the module includes built-in linearization for common thermocouple types to simplify programming.

Detailed Technical Specifications

Manufacturers construct the GE HE693THM449 using industrial-grade components for reliable operation in manufacturing environments. The module measures approximately 200 millimeters in height, 100 millimeters in width, and 50 millimeters in depth. Its compact form factor occupies a single Series 90-30 rack slot while providing multiple thermocouple inputs. Additionally, the module features status indicators for power, communication, and channel diagnostics.

Thermocouple Compatibility

The HE693THM449 supports a wide range of thermocouple types for diverse temperature measurement applications. It accepts common J, K, T, and E types for general industrial temperature ranges. The module also handles high-temperature R, S, and B types for furnace and kiln applications. Therefore, a single module meets thermocouple requirements across many different processes.

Cold Junction Compensation

Engineers equipped the GE HE693THM449 with automatic cold junction compensation for accurate temperature measurement. This feature measures the temperature at the module’s terminal connections continuously. It then compensates the thermocouple reading based on this reference junction temperature. Consequently, the module provides accurate readings regardless of ambient temperature variations in the control panel.

Signal Conditioning and Linearization

The GE HE693THM449 incorporates comprehensive signal conditioning for reliable thermocouple measurements. Its high-resolution analog-to-digital converter captures low-level thermocouple signals accurately. The module then applies built-in linearization curves for the selected thermocouple type automatically. Therefore, the PLC receives temperature values directly without additional programming for linearization.

Series 90-30 Platform Integration

The HE693THM449 integrates seamlessly into GE Series 90-30 PLC systems through the standard backplane interface. It communicates temperature values directly to the CPU for use in control programs. The module appears in the system configuration for easy setup and diagnostics access. Consequently, it functions as an integral component of comprehensive Series 90-30 automation solutions.

Industrial Applications and Use Cases

Manufacturing facilities rely on the GE HE693THM449 for accurate temperature monitoring across diverse applications. Heat treat furnaces use this module for precise temperature profiling and control during processing. Plastic injection molding machines employ it for melt temperature monitoring and barrel zone control. This thermocouple module ensures reliable temperature measurement in all these applications.

Installation Guidelines and Best Practices

Proper installation of the GE HE693THM449 ensures accurate temperature measurement and reliable operation. First, insert the module into an available Series 90-30 rack slot and secure it with the locking mechanism. Next, connect thermocouple wires using appropriate thermocouple-grade extension wire for accuracy. Finally, configure channel assignments and thermocouple types through the programming software before system startup.

Maintain System Accuracy with Genuine GE Components

Choosing the genuine GE HE693THM449 guarantees accurate temperature measurement and reliable performance. Aftermarket modules may lack the precise cold junction compensation and linearization of authentic GE designs. Therefore, always source this thermocouple input module from authorized GE distributors and partners. For additional automation components, explore our selection of control modules similar to the RMS-TSG-TZ-C Static Trip Unit.
