The GE HE693STP104 operates as a dedicated stepper motion control module for Series 90-30 programmable logic controllers. This module provides precise positioning control for stepper motors in multi-axis industrial applications. It consequently enables sophisticated motion profiles without burdening the main CPU with complex calculations.

Physical Characteristics and Build Quality

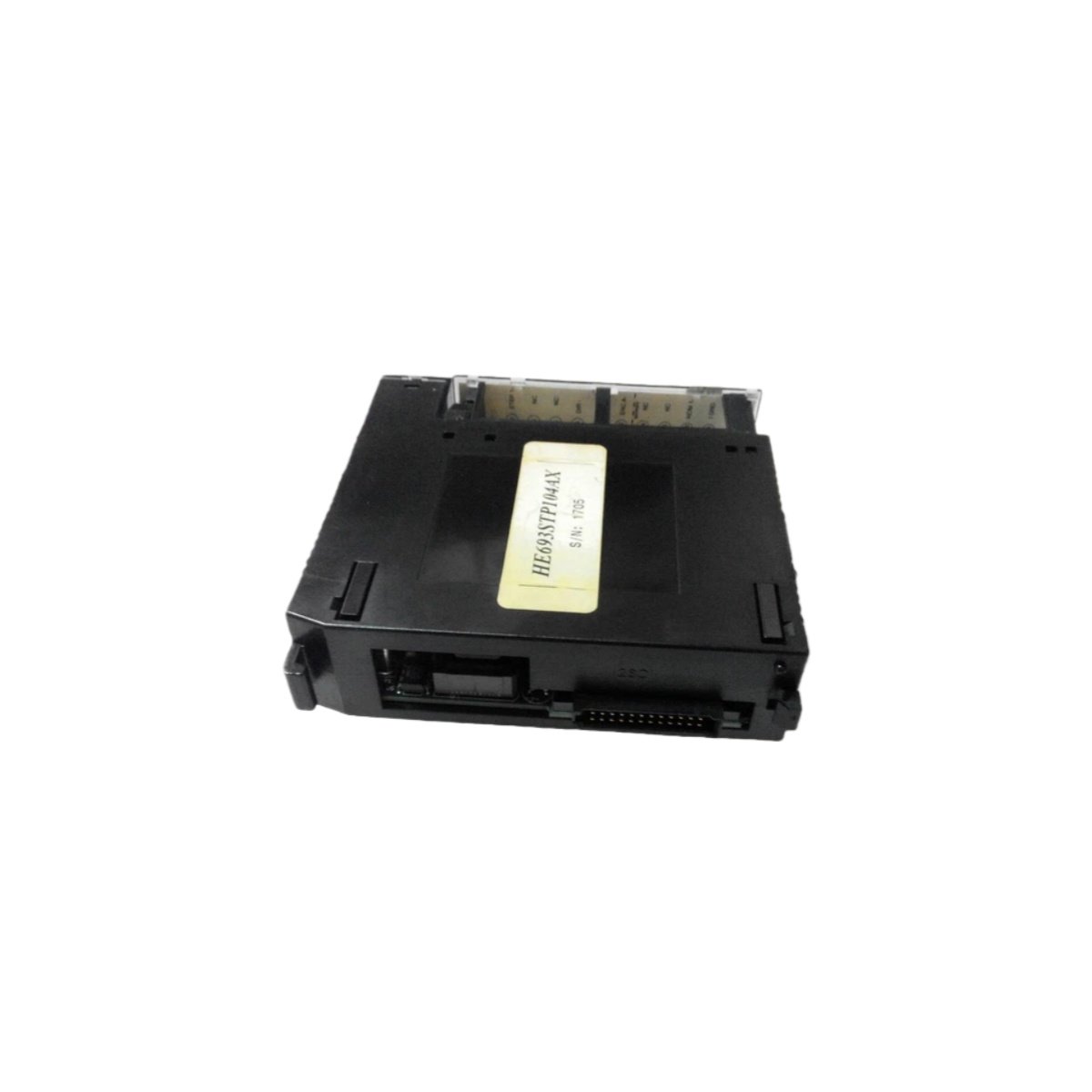

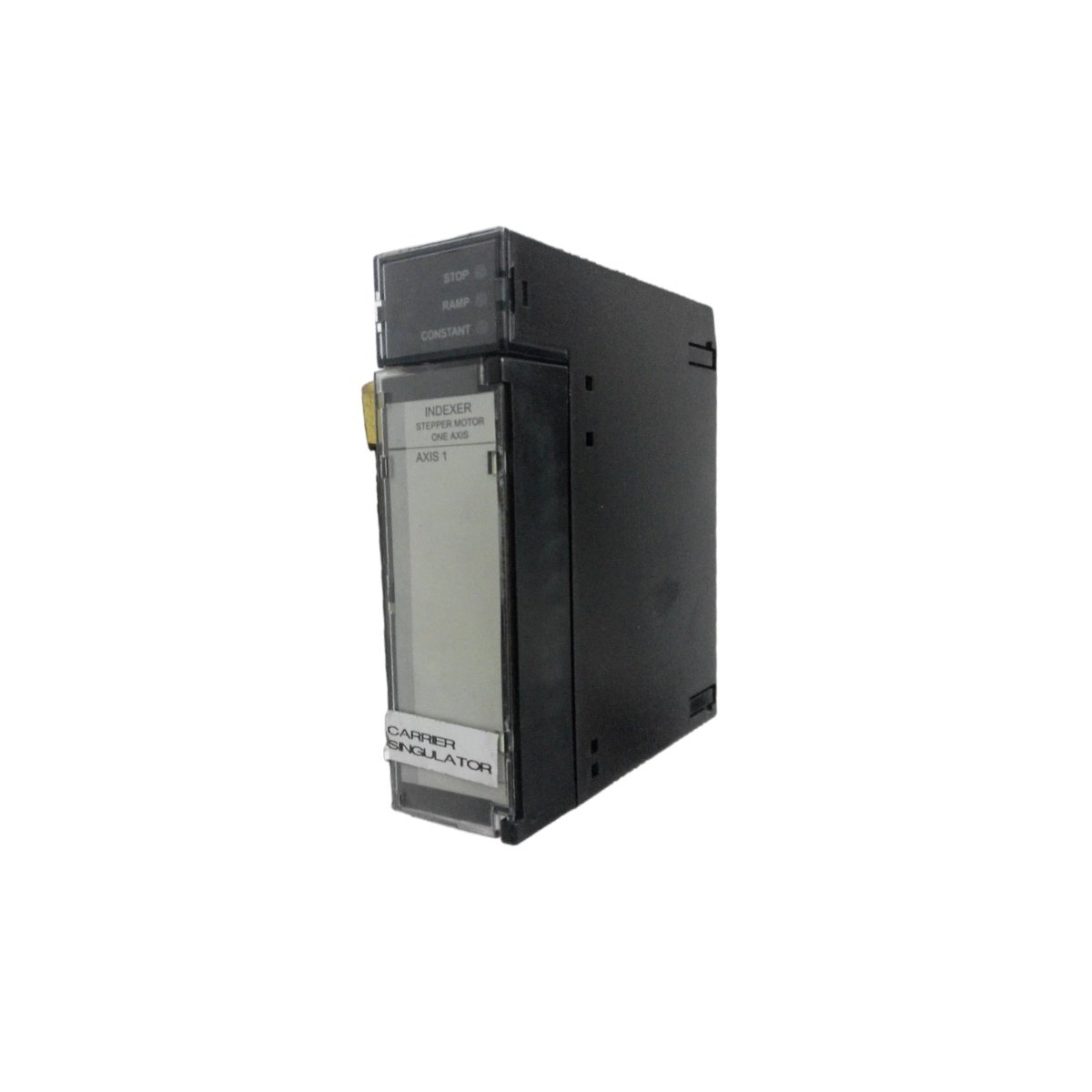

Engineers designed this module for direct installation into Series 90-30 racks with standard form factor dimensions. The unit measures approximately 15 centimeters in height, 5 centimeters in width, and 12 centimeters in depth. Its total weight reaches roughly 0.4 kilograms, making it lightweight for panel mounting applications. The rugged enclosure ensures reliable operation in industrial control environments.

Technical Specifications

Multi-Axis Capability

The HE693STP104 controls up to four independent stepper axes simultaneously with coordinated motion. Each axis operates with its own position registers, velocity profiles, and I/O assignments. You can configure axes for independent operation or synchronized multi-axis moves. This flexibility suits applications from simple indexing to complex gantry systems.

Pulse Output and Positioning

Each axis generates step and direction pulses up to 50 kilohertz for precise motor control. The 32-bit position registers provide a range of over ±2 billion counts for long travel distances. Programmable acceleration profiles include trapezoidal for general use and S-curve for smooth motion. Consequently, the module accommodates both high-speed and precision positioning requirements.

Encoder Feedback Interface

Quadrature encoder inputs accept feedback from external encoders for closed-loop verification. The module monitors actual position against commanded position for error detection. It can also use encoder feedback for electronic gearing or follower applications. The 50 kilohertz maximum input rate suits most industrial encoder applications.

Dedicated I/O Per Axis

Each axis includes dedicated inputs for limit switches, home sensors, and general-purpose functions. Four inputs per axis provide ample connectivity for end-of-travel and reference point detection. A dedicated output per axis controls the amplifier enable signal for safety. This distributed I/O reduces wiring complexity compared to separate input modules.

Communication with CPU

The GE HE693STP104 communicates with the Series 90-30 CPU through the backplane using shared memory. You initiate motion commands by writing to module registers from the ladder logic program. The module returns status information including position, velocity, and fault codes. This architecture keeps motion control independent from the main program scan.

Configuration and Programming

Engineers configure the module using programming software within the Series 90-30 environment. You set axis parameters like pulse rate, acceleration, and I/O polarity through simple configuration tables. Motion commands execute through subroutine calls from the ladder logic program. The module stores configuration in non-volatile memory for automatic startup.

Application Examples

This motion module excels in applications requiring precise positioning with stepper motors. Typical uses include pick-and-place machines, labeling equipment, and conveyor transfer stations. Multi-axis coordination suits X-Y tables, gantry robots, and packaging machinery. The HE693STP104 provides cost-effective motion control without dedicated motion controllers.
