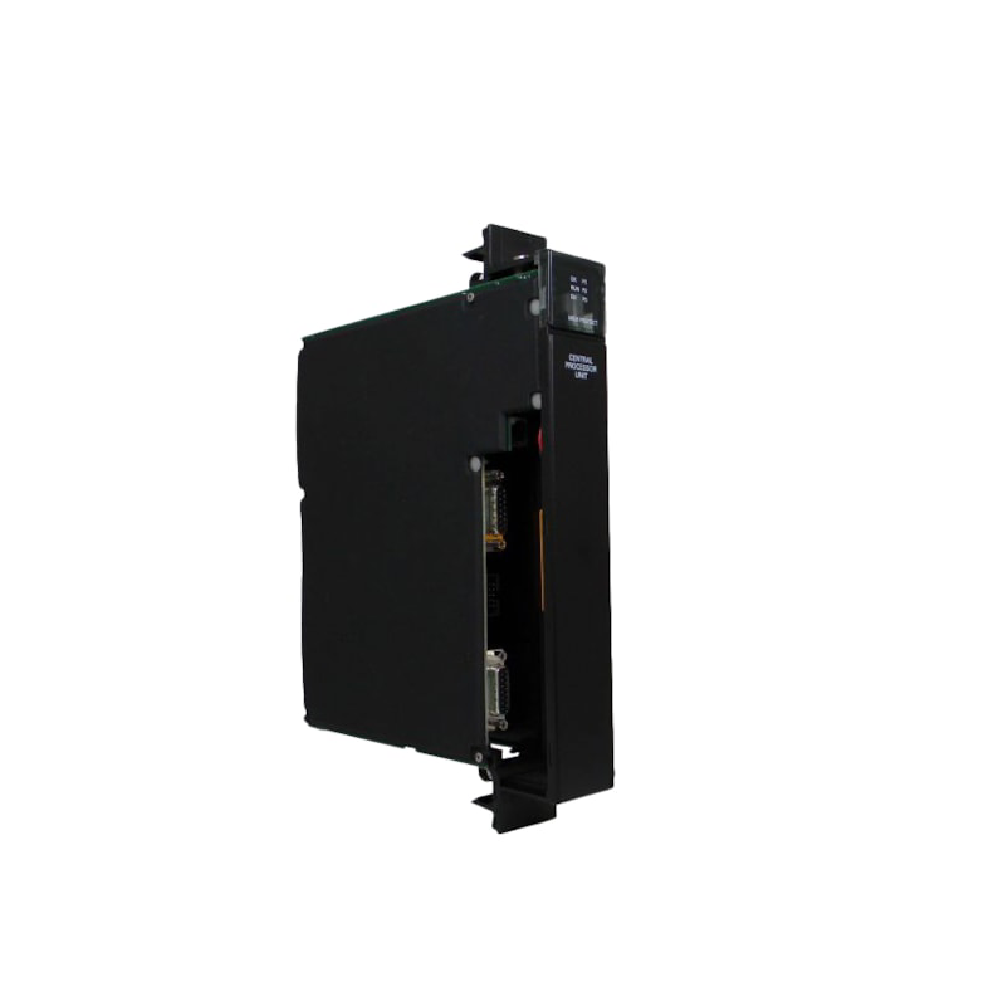

The IC697CPX935 is a high-performance Central Processing Unit designed for the GE FANUC Series 90-70 PLC. It is built to handle demanding industrial applications, offering advanced control capabilities and exceptional reliability.
Key Features
- Processor: 96 MHz 80486DX4 microprocessor.
- Memory:
- 1 MB battery-backed Fast CMOS RAM for user data (program, configuration, and register data).
- 256 KB non-volatile flash memory for user data storage.
- Performance:
- Executes boolean functions in 0.4 microseconds.
- Supports floating-point calculations.
- I/O Capacity:
- Up to 12K digital I/O (any mix).
- Up to 8K analog I/O.
- Connectivity:
- Three serial ports (RS-232 and RS-485).
- VME C.1 Standard format for backplane communication.
- Compatibility:
- Supports IC66 (IC660 or IC661) and IC697 I/O modules.
- Compatible with LAN Interface, Programmable Coprocessor, Bus Controllers, and more.
- Operation Modes:
- Three-position RUN/STOP switch.
- Password-controlled access and memory protection keyswitch.
- Diagnostics:
- Seven status LEDs for operation and fault indication.
- Firmware:
- Flash memory-based firmware, in-system upgradable.
Specifications
| Specification | Details |
|---|---|
| Power Requirements | 5V Bus Current: 3.1 Amps nominal |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) without cooling 0°C to 60°C (32°F to 140°F) with forced air cooling |
| Time of Day Clock Accuracy | ±3.5 seconds per day |
| Elapsed Time Clock Accuracy | ±0.01% |
| Battery Model | Lithium battery (IC697ACC701) |
| Battery Shelf Life | 5 years at 20°C (68°F) |
| Memory Retention | 6 months without power |
| Serial Ports | Port 1: RS-232 Port 2 & 3: RS-485, Port 2 optocoupler isolated |
| Protocols Supported | SNP Slave only |
| Physical Dimensions | Fits in slot 1 of IC697 rack |
| Cooling Requirements | Forced air cooling with fan assemblies: IC697ACC721 (120 VAC), IC697ACC724 (240 VAC), IC697ACC744 (24 VDC) |
Ordering Information
- IC697CPX935: Central Processing Unit, 96 MHz, 1 MB memory.
Revisions of GE FANUC IC697CPX935
Available revisions for the IC697CPX935 CPU module include:
| Revision | Part Number | Alternate Name | Notes |
|---|---|---|---|
| CB | IC697CPX935CB | IC697CPX935-CB, Series CB | Request a Quote |
| CC | IC697CPX935CC | IC697CPX935-CC, Series CC | Request a Quote |
| CD | IC697CPX935CD | IC697CPX935-CD, Series CD | Request a Quote |
| ED | IC697CPX935ED | IC697CPX935-ED, Series ED | Request a Quote |
| FD | IC697CPX935FD | IC697CPX935-FD, Series FD | Request a Quote |
| GE | IC697CPX935GE | IC697CPX935-GE, Series GE | Request a Quote |
| HE | IC697CPX935HE | IC697CPX935-HE, Series HE | Request a Quote |
| HF | IC697CPX935HF | IC697CPX935-HF, Series HF | Request a Quote |
| JE | IC697CPX935JE | IC697CPX935-JE, Series JE | Request a Quote |
Click the respective link to submit your inquiry.
FAQ
Q: What is the lead time for the IC697CPX935?
A: We typically ship within 3-5 business days, depending on stock availability.
Q: Is the IC697CPX935 CPU a new and original product?
A: Yes, it is a brand new and original product from GE FANUC.
Q: What are the cooling requirements for this CPU?
A: The IC697CPX935 requires forced air cooling. Fan assemblies are available with different voltage options (120 VAC, 240 VAC, or 24 VDC).
Q: Does the IC697CPX935 support older I/O modules?
A: Yes, it is compatible with both IC660 and IC661 I/O modules, in addition to the IC697 series.
Details
| Weight | 0.5 kg |
|---|
