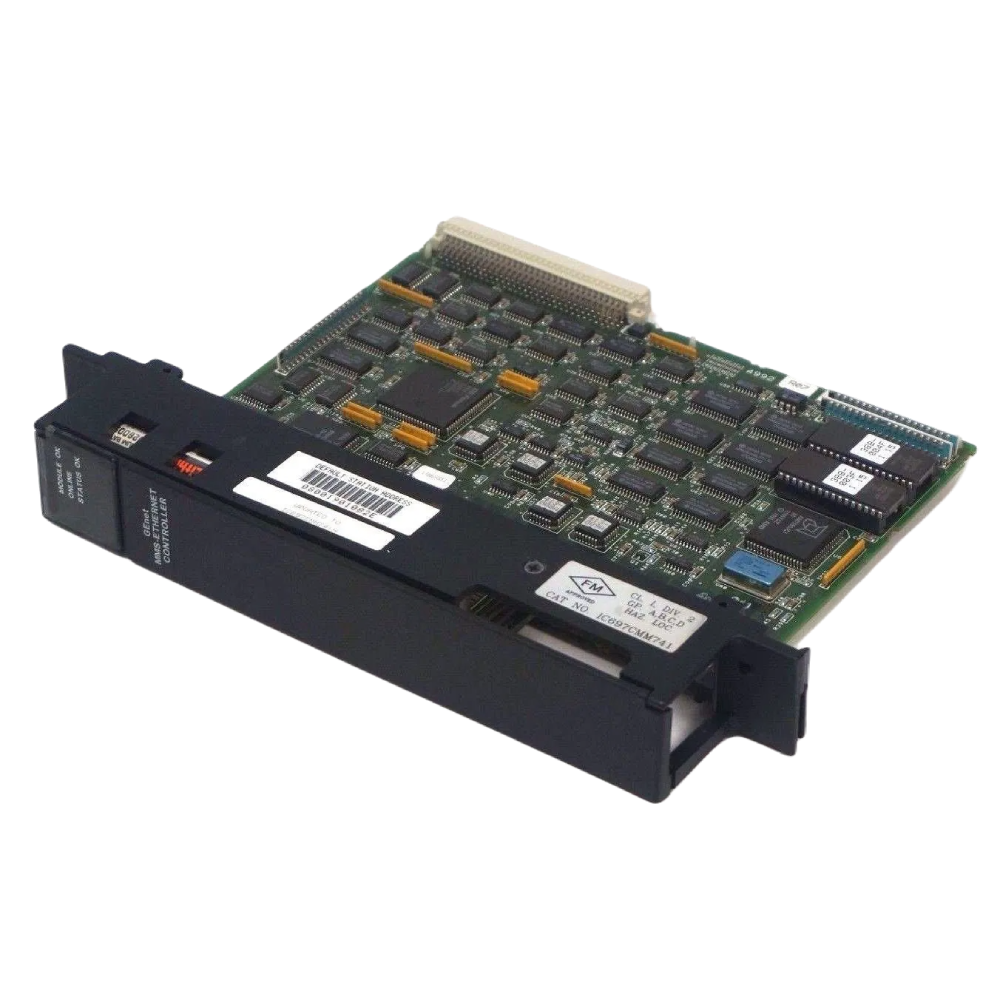

The IC697CPX928 is a high-performance, single-slot CPU module for the GE Fanuc Series 90-70 programmable logic controller (PLC) system. It provides real-time control for machines, processes, and material handling systems, making it suitable for complex industrial applications.
Functions
- Real-time control for industrial systems.
- Communicates with I/O and smart option modules over a rack-mounted backplane.
- Compatible with a wide range of option modules, including:
- LAN Interface Modules.
- Programmable and Alphanumeric Display Coprocessors.
- IC660/661 Bus Controllers.
- Communication modules.
- I/O Link Interfaces.
- IC697 family discrete and analog I/O modules.
Key Features
- Processing Power:
- 96 MHz 80486DX4 microprocessor for high-speed operations.
- 0.4 microseconds per Boolean function execution.
- Memory:
- 6 MB battery-backed memory in a single slot.
- 256 KB of non-volatile user flash memory.
- I/O Support:
- Handles up to 12K inputs/outputs (any mix) and 8K analog I/O.
- Ports and Communication:
- Three serial ports:
- Port 1: RS-232 compatible.
- Port 2: RS-485 compatible (optocoupler isolated).
- Port 3: RS-485 compatible (non-isolated).
- Supports Ethernet TCP/IP or SNP communication protocols.
- Three serial ports:
- User Configuration:
- Software-configurable with no DIP switches or jumpers.
- Password-protected access and remote programmer keyswitch for memory protection.
- Diagnostics and Indicators:
- Seven status LEDs for quick system monitoring.
- Battery-backed calendar clock with configurable accuracy.
- Upgradable:
- In-system firmware upgrades.
- Environment and Compliance:
- Operates at 0 to 60°C with forced air (70 CFM) or 0 to 50°C without forced air.
- Complies with VME Standard C.1 and various international standards.
Technical Specifications
| Parameter | Details |
|---|---|
| Battery Life | 5 years at 20°C; 6 months without power. |
| Power Requirements | 3.1 Amps nominal at 5V bus. |
| Clock Accuracy | ±3.5 seconds/day for Time of Day; ±0.01% for Elapsed Time Clock. |
| Serial Port Protocol | SNP Slave only. |
| Operating Temperature | 0 to 60°C (with forced air); 0 to 50°C (without forced air). |
| Memory Protection | Password-controlled and keyswitch-protected. |
| Dimensions | Single-slot module for Series 90-70 rack. |
Ordering Information
| Description | Catalog Number |
|---|---|
| Central Processing Unit (96 MHz, 6 MB) | IC697CPX928 |
| Lithium Battery | IC697ACC701 |
| Rack Fan Assembly (120 VAC) | IC697ACC721 |
| Rack Fan Assembly (240 VAC) | IC697ACC724 |
| Rack Fan Assembly (24 VDC) | IC697ACC744 |
Note: For the conformal coating option, consult the factory for pricing and availability.
Details
| Weight | 0.3 kg |
|---|
