High-Speed Control Memory Exchange Module for RX7i Automation

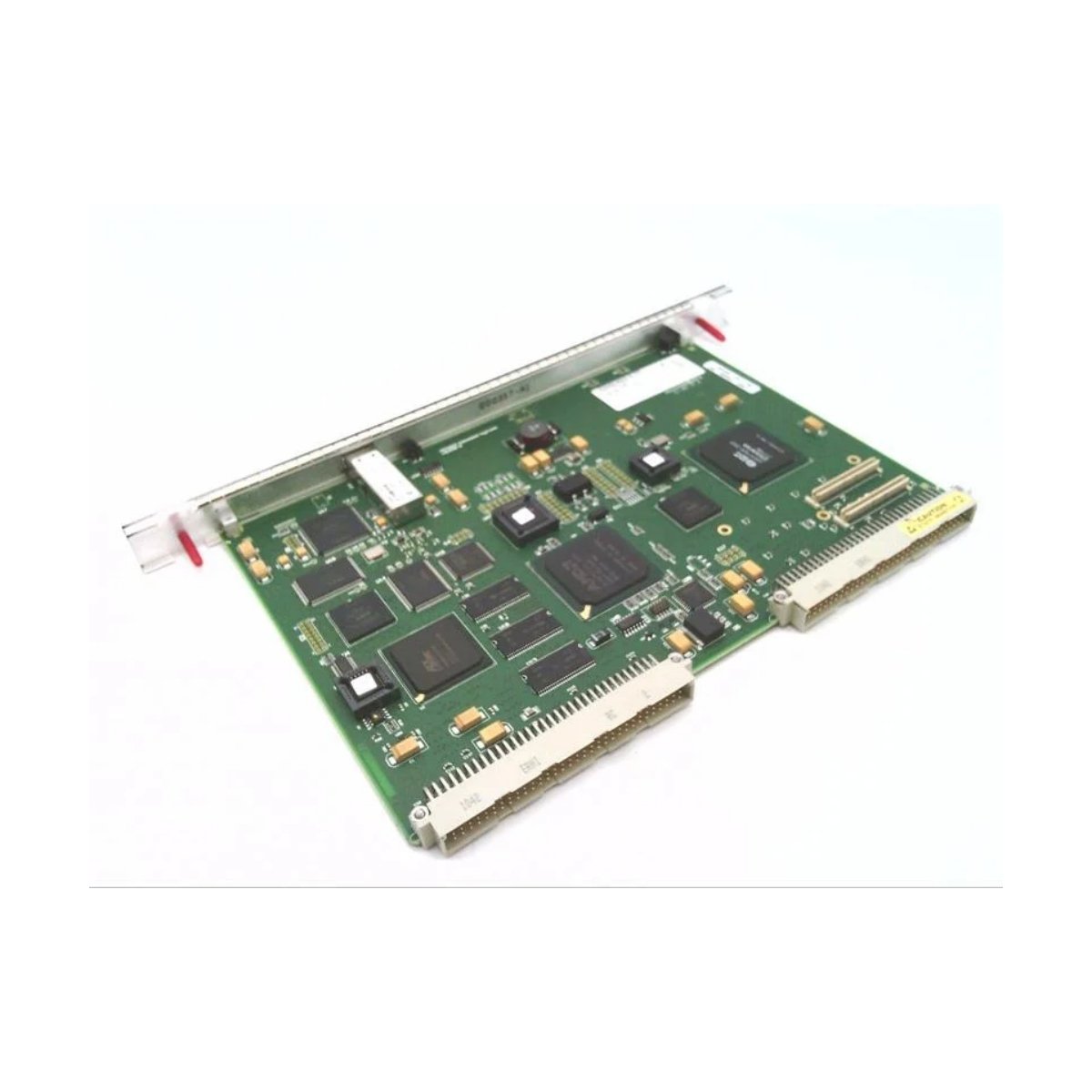

The IC698CMX016 by GE Fanuc delivers efficient memory exchange and communication for PACSystem RX7i platforms. Its fiber optic interface enables high-speed data transfer across industrial networks with minimal latency.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | GE Fanuc |
| Series | PACSystem RX7i |
| Model | IC698CMX016 |
| Product Type | Control Memory Exchange Module |
| Manufacturer | Emerson Automation (current), GE Intelligent Platforms (former) |
| User Memory | 16 MB SDRAM |
| Communication Interface | Multi-mode fiber optic port |
| Fiber Connectors | LC type, IEC 61754-20 compliant |
| Ports | 2 fiber optic ports (TX, RX) |
| Operating Voltage | +5 V DC from power supply |
| Current Rating | 1.8 A |
| Transfer Rate | 43–174 MB/s depending on packet size |
| Transmission Speed | 2.12 Gbaud |
| Maximum Network Transfer | 43 MB/s (4-byte packets) to 174 MB/s (64-byte packets) |
| Packet Management | Dynamic and automatically managed |
| Node Capacity | 256 devices per network |
| Insertion Loss | 0.35 dB maximum |
| Return Loss | -30 dB |
| LED Indicators | 4 status LEDs including Signal Detect and Own Data |
| Module Slot Requirement | Single slot |
| Operating Temperature | -20°C to +85°C |
| Lifecycle Status | Active |
Key Features & Capabilities
- Supports dynamic packet management for reliable high-speed communication.
- Provides multi-mode fiber optic connectivity for industrial network integration.
- Monitors node status via four dedicated LED indicators for easy diagnostics.
- Interfaces with up to 256 nodes to enhance RX7i PACSystem scalability.
- Operates in extreme temperatures ranging from -20°C to +85°C without degradation.
Product Origin, Dimensions & Weight
- Origin: United States
- Dimensions: 6.299” (W) × 9.187” (H)
- Weight: 0.7 kg
Applications
- Ideal for industrial automation requiring high-speed memory exchange.
- Supports PACSystem RX7i modular PLC networks in manufacturing plants.
- Ensures reliable and fast communication between distributed modules.
Shipping, Warranty & Support
- Includes one IC698CMX016 module per shipment.
- Ships globally via FedEx, UPS, DHL with tracking and insurance.
- Warranty: 12 months with full technical support.
- Quick processing and same-day shipping available for in-stock units.
