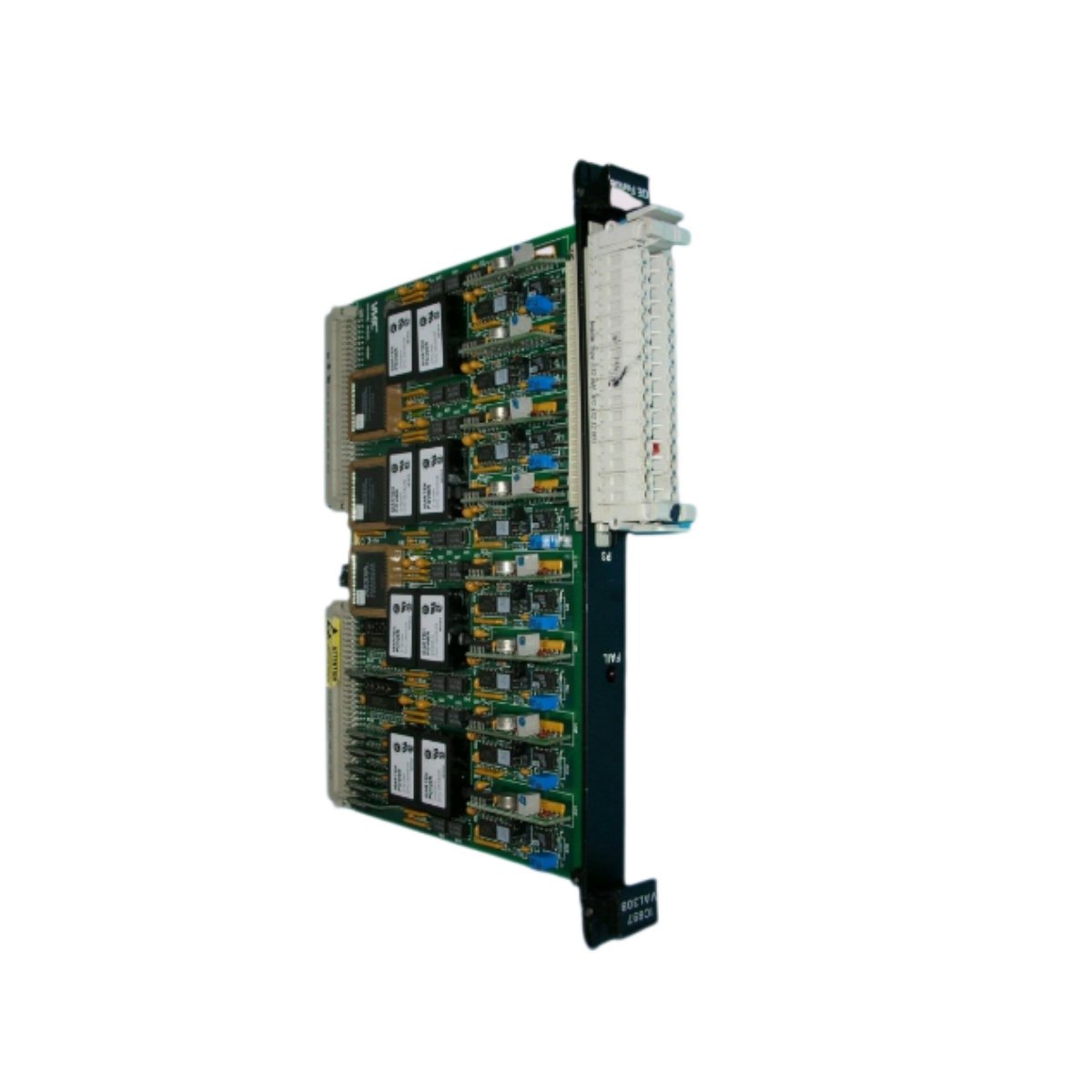

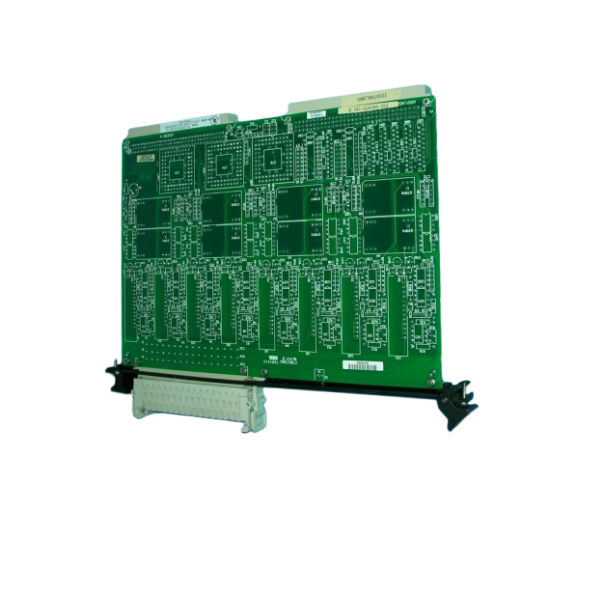

Overview of IC697VAL348 Digital-to-Analog Converter
The GE Fanuc IC697VAL348 is a high-precision digital-to-analog converter for Series 90-70 control systems. It converts digital codes to accurate analog voltages across eight independent channels. This board suits control, measurement, and automation applications requiring reliable analog outputs.
Key Features and Benefits
- 8 independent DAC channels for simultaneous analog outputs
- 16-bit resolution ensures precise voltage conversion
- Buffered output up to 10 volts per channel
- Front panel LED indicates fault conditions immediately
- High-reliability DIN connector supports secure connections
- Double Eurocard form factor fits standard VME slots
- Six factory-configured jumpers simplify setup and configuration
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc |
| Series | Series 90-70 |
| Model | IC697VAL348 |
| Module Type | Digital-to-Analog Converter Board |
| Channels | 8 Independent |
| Resolution | 16 Bits |
| Output Voltage | 0–10 Volts |
| Output Current | 5 mA per channel |
| Connector | High-Reliability DIN |
| Form Factor | Double Eurocard |
| Input Codes | Positive Binary, Two’s Complement |
| Configuration | 6 Factory Jumpers |
| Indicators | Front Panel Fault LED |
| Mounting | Any VME Slot (Except Master Processor) |
| Installation Requirement | Power-Off Required |
Dimensions and Weight
- Form Factor: Double Eurocard (160 mm × 233 mm)
- Weight: Approximately 0.45 kg
- Origin: Manufactured by GE Fanuc, USA
Installation and Configuration
Install the IC697VAL348 in any compatible VME slot, avoiding the master processor slot. Ensure the system power is off during installation. The board includes six factory jumpers for base address selection, address modifier, digital code format, and operation mode, enabling easy configuration without programming.
Applications in Industrial Automation
The IC697VAL348 is ideal for precision control systems, PLC interfaces, and factory automation tasks. Use it for accurate analog voltage outputs in process control, signal monitoring, and multi-channel data acquisition systems.
Package Contents
- 1 × GE Fanuc IC697VAL348 DAC converter board
- Installation manual
Shipping and Warranty
Ships globally via FedEx, UPS, or DHL. The board includes a 12-month manufacturer warranty for repair or replacement.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 160 × 233 × 40 mm |
