High-Precision Analog-to-Digital Conversion

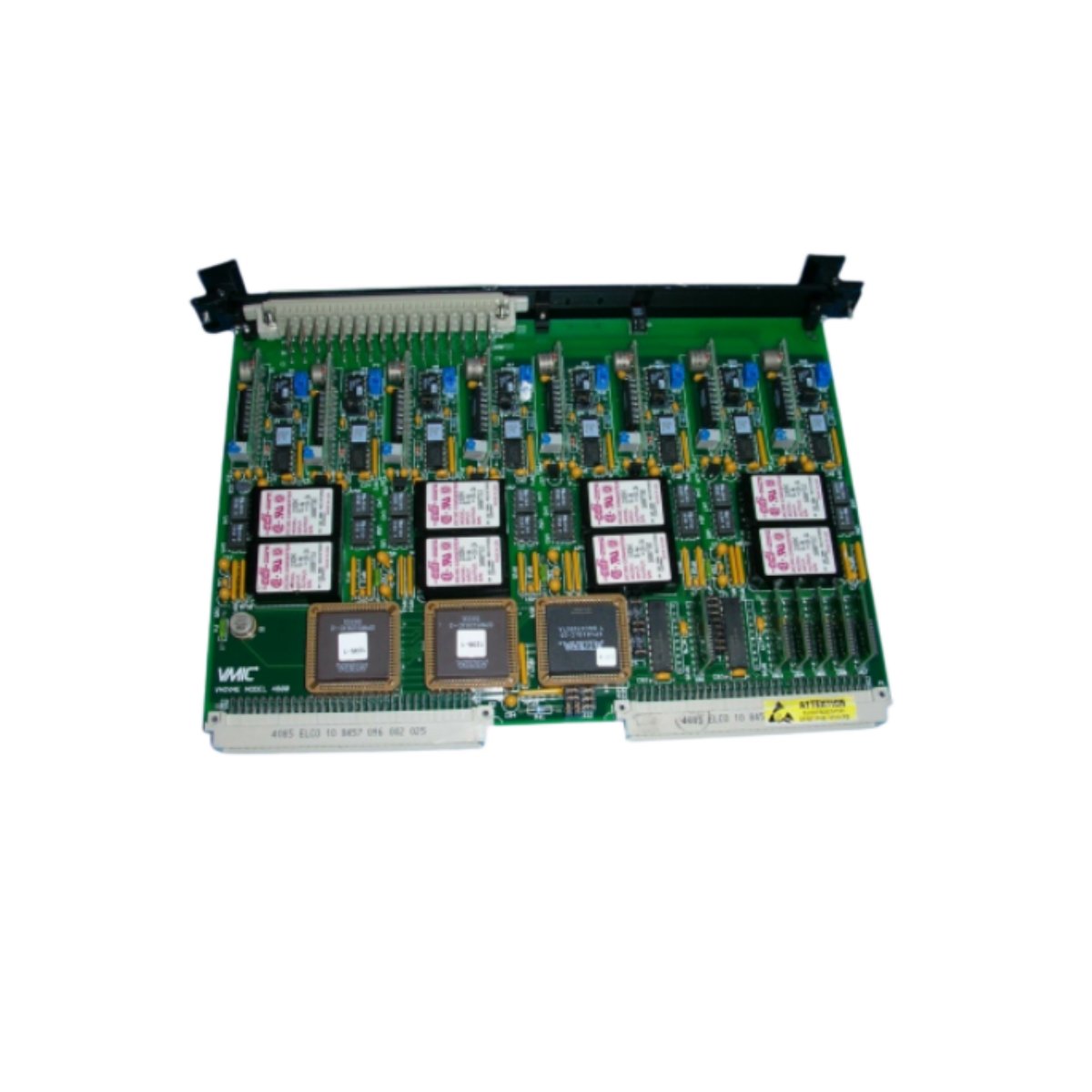

The GE Fanuc IC697VAL134 is a 12-bit analog-to-digital converter (ADC) for Series 90-70 systems. It converts analog signals into precise digital data for industrial automation and control applications. Its high-resolution conversion supports complex PLC and DCS systems.
Key Features and Advantages
- 12-bit resolution for accurate digital signal representation
- 31 single-ended analog input channels for multi-signal acquisition
- Scanning rate up to 40 kHz aggregate ensures fast response
- Input ranges from ±50 mV to ±10 VDC accommodate diverse sensors
- Front panel LED provides real-time status indication
- 1000 VDC isolation protects sensitive electronics
- Factory-configured 40 Hz input filters reduce noise interference
- Jumper settings allow flexible installation on any 128-byte boundary
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc |
| Series | Series 90-70 |
| Model | IC697VAL134 |
| Module Type | ADC Converter Board |
| Channels | 31 Single-Ended Analog Inputs |
| Resolution | 12 Bits |
| Scanning Rate | 40 kHz Aggregate |
| Input Voltage Ranges | ±50 mV to ±10 VDC |
| Cable Type | Discrete Wire Cables |
| Isolation Voltage | 1000 VDC |
| Indicators | Front Panel LED |
| I/O VMEbus Space | 128 Bytes |
| Installation Requirement | Power-Off Required |
| Input Filtering | 40 Hz Factory-Configured |
Dimensions and Weight
- Form Factor: Double Eurocard
- Dimensions: 160 mm × 233 mm
- Weight: Approximately 0.45 kg
- Origin: Manufactured by GE Fanuc, USA
Installation and Operation
Always de-energize the system before installing the IC697VAL134. After powering up, the board automatically scans channels. It requires no additional software for basic operation. Jumper settings allow flexible placement within the VMEbus space.
Functional Overview
- Board ID Register: Identifies the module in the system
- BIT Voltage Reference: Provides stable reference voltage for all channels
- Analog Input Multiplexing: Efficiently manages multiple input channels
These features ensure reliable and organized analog-to-digital signal processing for industrial automation systems.
Package Contents
- 1 × GE Fanuc IC697VAL134 ADC converter board
- Installation manual
Shipping and Warranty
Shipped globally via FedEx, UPS, or DHL. The board includes a 12-month manufacturer warranty for repair or replacement.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 160 × 233 × 40 mm |
