High-Performance DC Power for Industrial Control

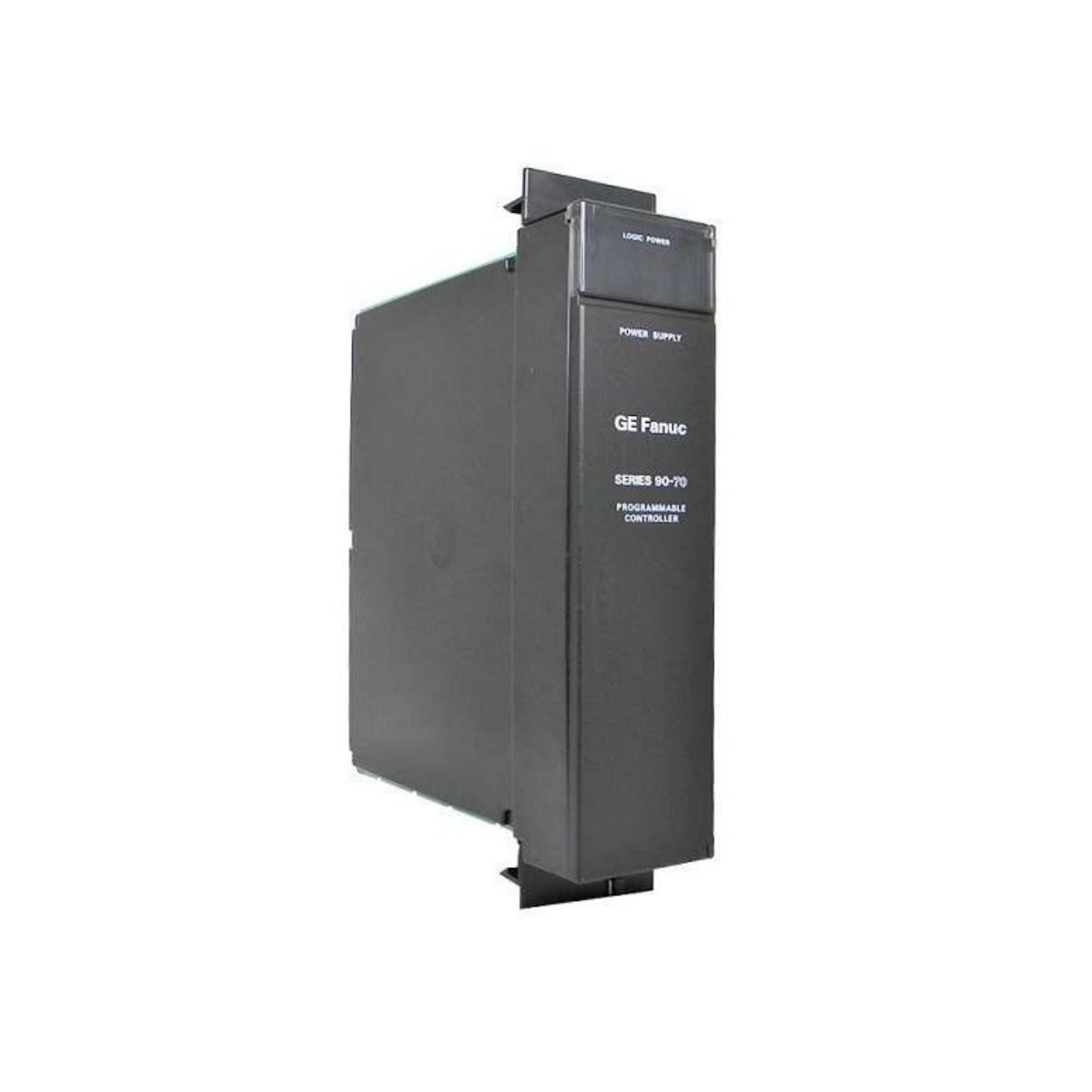

The GE Fanuc IC697PWR722 delivers 90W of reliable DC power for Series 90-70 industrial automation systems. It supports dual rack configurations, enabling flexible factory automation and control applications.
Key Features and Benefits
- Nominal 24V DC input voltage with 21–32 VDC operating range
- Maximum output power of 90W across three voltage rails
- Overvoltage limit 6–7 volts for module protection
- Wide operating temperature from 0 to 60°C ensures stable operation
- Shock resistance up to 15 G for 11 milliseconds supports harsh environments
- Dual rack capable with current and distance limitations
- Compatible with standard Series 90-70 racks and VMEbus architecture
Output Specifications
| Output Voltage | Maximum Current Capacity | Notes |
|---|---|---|
| +5 VDC | 16.5 A | Supports second rack under limits |
| +12 VDC | 1.5 A | Standard primary output |
| -12 VDC | 1 A | Stable negative voltage |
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc |
| Series | Series 90-70 |
| Model | IC697PWR722 |
| Module Type | DC Power Supply Module |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 21–32 VDC |
| Maximum Input Power | 156 Watts |
| Output Power | 90 Watts Maximum |
| Inrush Energy | 22 J at 32 VDC |
| Voltage Regulation | +5V, +12V, -12V |
| Overvoltage Limit | 6–7 Volts |
| Operating Temperature | 0–60°C |
| Shock Resistance | 15 G for 11 milliseconds |
| Dual Rack Support | Yes, under current and distance limits |
| Mounting | Left side of compatible system racks |
| Adapter Requirement | IC697PWR720 for backplane connection |
Dimensions, Weight, and Origin
- Form Factor: Standard Series 90-70 Rack Module
- Dimensions: 160 mm × 100 mm × 60 mm
- Weight: Approximately 0.7 kg
- Origin: Manufactured by GE Fanuc, USA
Installation Guidelines
Install the IC697PWR722 on the left side of the rack. Ensure the system power is off during installation. Use the IC697PWR720 adapter module to connect the power outputs to the backplane. For dual rack operation, keep racks close and cable length under 3 feet.
Package Contents
- 1 × GE Fanuc IC697PWR722 DC power supply module
- Installation guide
Shipping and Warranty
Ships worldwide via FedEx, UPS, or DHL. Includes a 12-month manufacturer warranty for repair or replacement.
