High-Performance Power Supply Adapter for PLC Systems

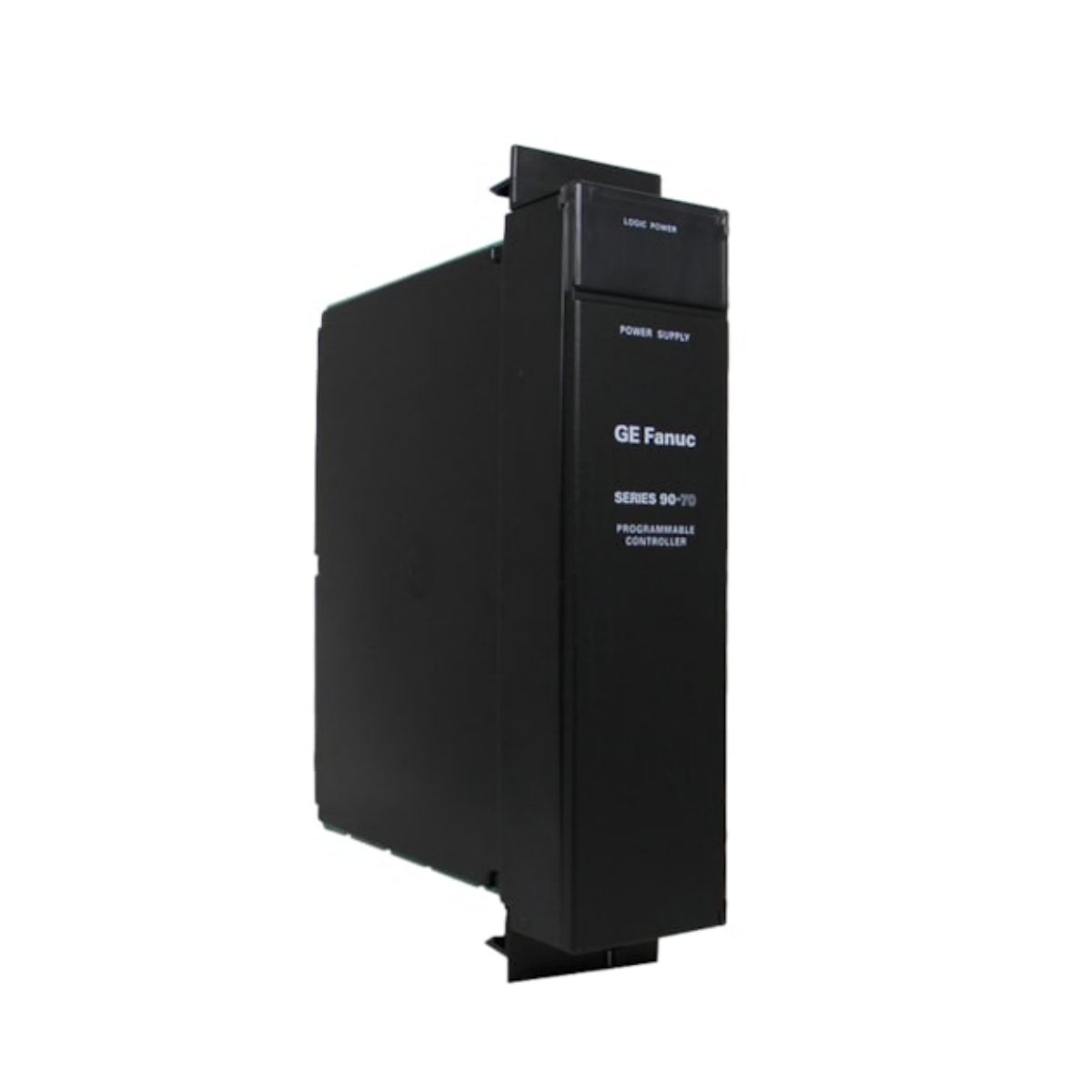

The GE Fanuc IC697PWR720 provides three stable voltage outputs to power Series 90-70 PLC racks efficiently. It supports dual rack operation and enables flexible industrial automation setups.
Key Features and Benefits
- Provides +5VDC, +12VDC, and -12VDC outputs for versatile system support
- +5V output delivers up to 18A for high-current devices
- Supports dual rack setups with extension cable IC697CBL700
- LED indicator shows logic power status for quick diagnostics
- Compatible with IC697 power supplies or third-party units with TTL Power OK
- Single-slot mounting for easy installation in Series 90-70 baseplates
- VME Standard C.1 compliant for broad system compatibility
Output Specifications
| Output Voltage | Maximum Current | Nominal Voltage | Notes |
|---|---|---|---|
| +5 VDC | 18A | 5.07V | Primary logic power output |
| +12 VDC | 2A | 12V | Secondary output for modules |
| -12 VDC | 1A | -12V | Negative supply for logic |
| 5V Bus Current | 50 mA | N/A | 0.25 W typical load |
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc |
| Series | Series 90-70 |
| Model | IC697PWR720 |
| Module Type | Power Supply Adapter (PSA) |
| Mounting | Power Supply Slot (Single Slot) |
| Dual Rack Operation | Supported via extension cable IC697CBL700 |
| External Power Supply | IC697 PSU or 3rd party with TTL Power OK |
| Hold-up Time | Minimum 5.05 milliseconds |
| Status Indicator | LED |
| Compatibility | VME Standard C.1 |
Dimensions, Weight, and Origin
- Form Factor: Single-slot adapter module
- Dimensions: 100 mm × 50 mm × 60 mm
- Weight: Approximately 0.35 kg
- Origin: Manufactured by GE Fanuc, USA
Installation and Operation
Install the IC697PWR720 in the power supply slot of a Series 90-70 baseplate. Connect a compatible external power supply. For dual rack systems, use the extension cable IC697CBL700 to power the second rack without a separate supply.
Package Contents
- 1 × GE Fanuc IC697PWR720 power supply adapter module
- User manual
Shipping and Warranty
Ships worldwide via FedEx, UPS, or DHL. The module includes a 12-month manufacturer warranty for repair or replacement.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 100 × 50 × 60 mm |
