High-Performance Power Supply for Industrial Automation

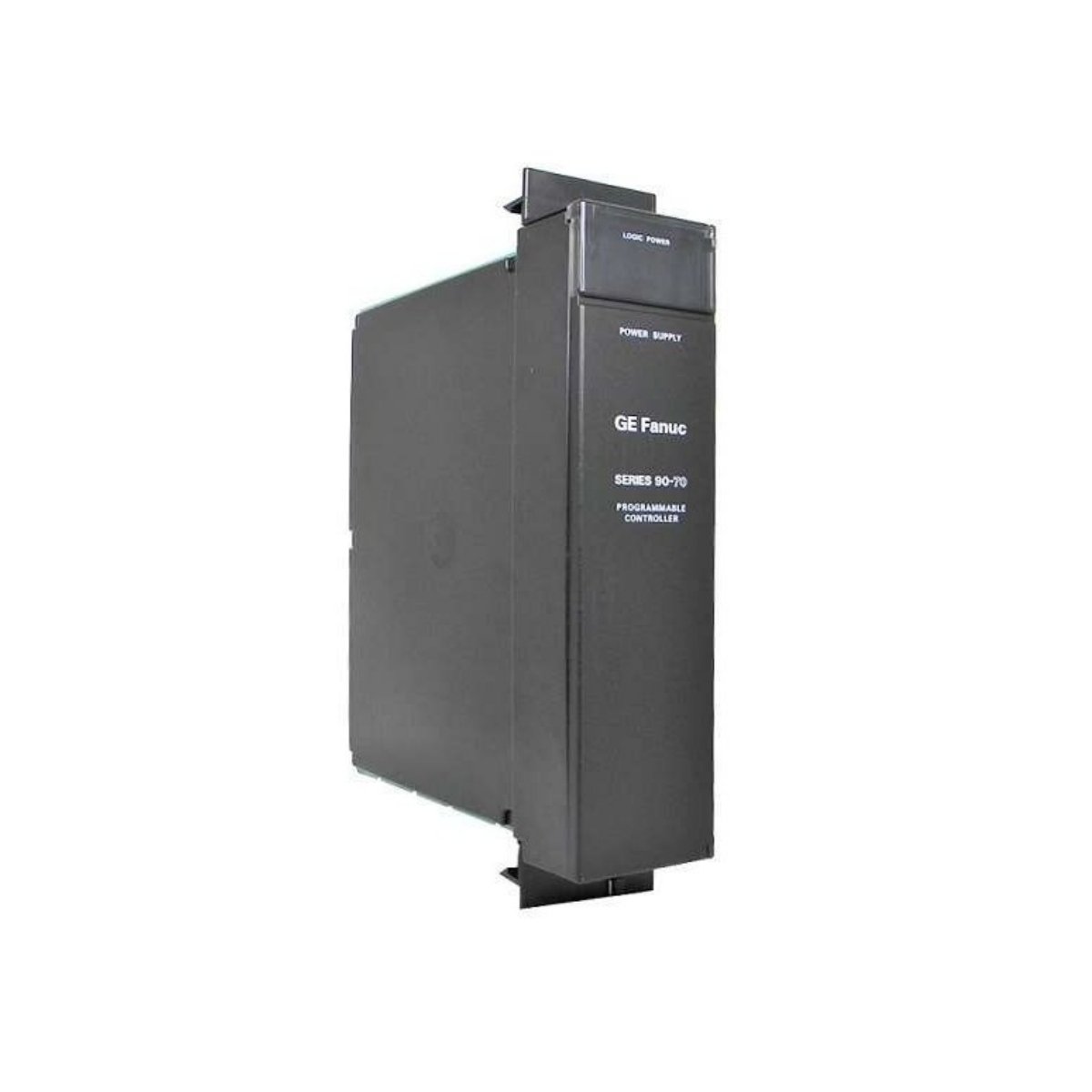

The GE Fanuc IC697PWR713 delivers 100W of reliable DC power for Series 90-70 PLC systems. It supports single or dual rack configurations for flexible industrial automation setups.
Key Features and Benefits
- Provides +5VDC, +12VDC, and -12VDC regulated outputs for versatile system applications
- +5V output supplies up to 20A to support high-current modules
- Supports dual rack operation under specific power and distance conditions
- Accepts wide input ranges: 90–264 VAC or 100–150 VDC
- Maintains high power factor >0.93 for efficient energy use
- Operates reliably in temperatures from 0 to 60°C
- Shock and vibration-resistant design ensures durability in industrial environments
Output Specifications
| Output Voltage | Maximum Current | Notes |
|---|---|---|
| +5 VDC | 20A | Primary logic power supply |
| +12 VDC | 2A | Secondary output for modules |
| -12 VDC | 1A | Negative supply for logic |
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc |
| Series | Series 90-70 |
| Model | IC697PWR713 |
| Module Type | Power Supply Module |
| Output Power | 100 Watts Maximum |
| Nominal Input Voltage | 120/240 VAC or 125 VDC |
| AC Input Range | 90–264 VAC |
| DC Input Range | 100–150 VDC |
| Frequency | 47–63 Hz |
| Input Power | 135W typical, 160W maximum |
| Voltage Regulation | +5V, +12V, -12V |
| Power Factor | >0.93 |
| Operating Temperature | 0–60°C |
| Dual Rack Operation | Supported with conditions |
| Mounting | Rack-mounted, adjacent positioning required |
Dual Rack Operation Guidelines
- Both racks must draw total power ≤100 watts
- Second rack current must not exceed 2.5A
- Racks must be mounted directly beside each other
- Connection cable between racks must be ≤3 feet
Dimensions, Weight, and Origin
- Form Factor: Rack-mounted power module
- Dimensions: 160 mm × 120 mm × 65 mm
- Weight: Approximately 0.8 kg
- Origin: Manufactured by GE Fanuc, USA
Packaging and Shipping
- Ships globally via FedEx, UPS, or DHL
- Package includes one GE Fanuc IC697PWR713 power supply module and user manual
- Includes 12-month manufacturer warranty
Details
| Weight | 0.8 kg |
|---|---|
| Dimensions | 160 × 120 × 65 mm |
