Reliable Power Supply for Series 90-70 PLC Systems

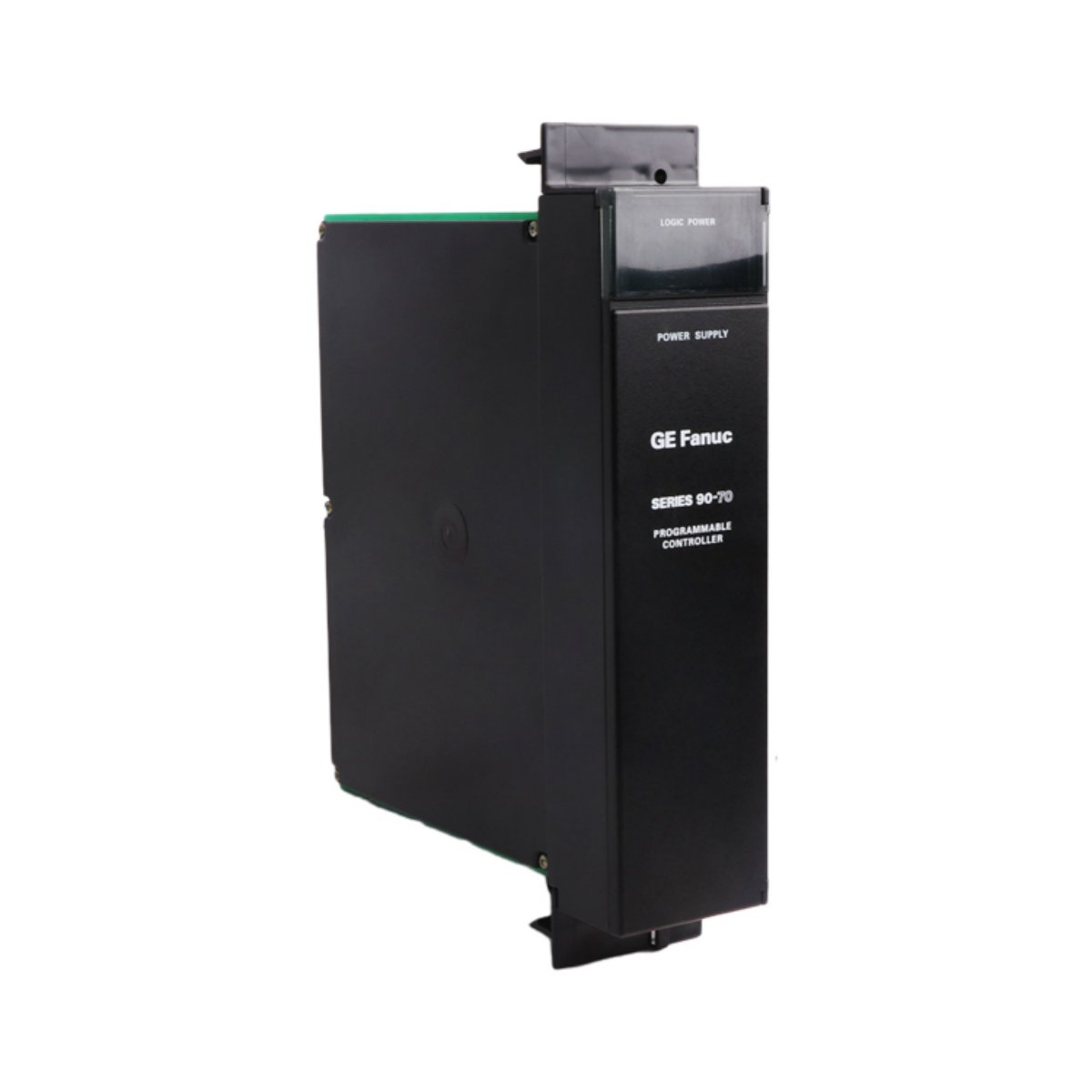

The GE Fanuc IC697PWR710 delivers stable 5V DC power for Series 90-70 PLC modules. It supports AC or DC input and mounts in the leftmost rack slot for secure installation.
Key Features and Benefits
- Provides 56W maximum output power at 5.1V DC for reliable module operation
- Accepts wide input ranges: 90–264V AC or 100–150V DC for flexible installations
- Includes electronic overvoltage protection at 6.2V and overcurrent protection at 12A
- Maintains output for 21 milliseconds during brief power interruptions
- High power factor >0.95 ensures energy-efficient operation
- Compact design fits standard Series 90-70 PLC racks
Output Specifications
| Parameter | Specification |
|---|---|
| Output Voltage | 5.1 VDC Nominal (4.90–5.25 VDC Range) |
| Maximum Output Current | 11 A |
| Maximum Output Power | 56 W |
| Ride-Through Time | 21 ms Minimum |
| Inrush Current | 3 A Typical |
| Overvoltage Protection | 6.2 V Typical |
| Overcurrent Protection | 12 A Typical |
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc |
| Series | Series 90-70 |
| Model | IC697PWR710 |
| Module Type | Power Supply Module |
| Input Voltage | 90–264 V AC (47–63 Hz) or 100–150 V DC |
| Input Power | 90 W Maximum |
| Power Factor | >0.95 |
| Mounting | Leftmost Slot Only |
| Compliance | VME Standard C.1 |
| Ground Wire | AWG #12 (3.3 mm²) Copper |
Installation Guidelines
- Install IC697PWR710 in the leftmost slot of a Series 90-70 baseplate
- Connect the ground wire to the terminal and tighten to 12 in-lb torque
- Connect AC or DC input power according to your system configuration
- Ensure proper clearance for airflow and heat dissipation
Dimensions, Weight, and Origin
- Dimensions: 160 mm × 100 mm × 65 mm
- Weight: Approximately 0.75 kg
- Origin: Manufactured by GE Fanuc, USA
Packaging and Shipping
- Ships globally via FedEx, UPS, or DHL
- Package contains one GE Fanuc IC697PWR710 power supply module and user manual
- Includes 12-month manufacturer warranty for quality assurance
Details
| Weight | 0.75 kg |
|---|---|
| Dimensions | 160 × 100 × 65 mm |
