Product Description

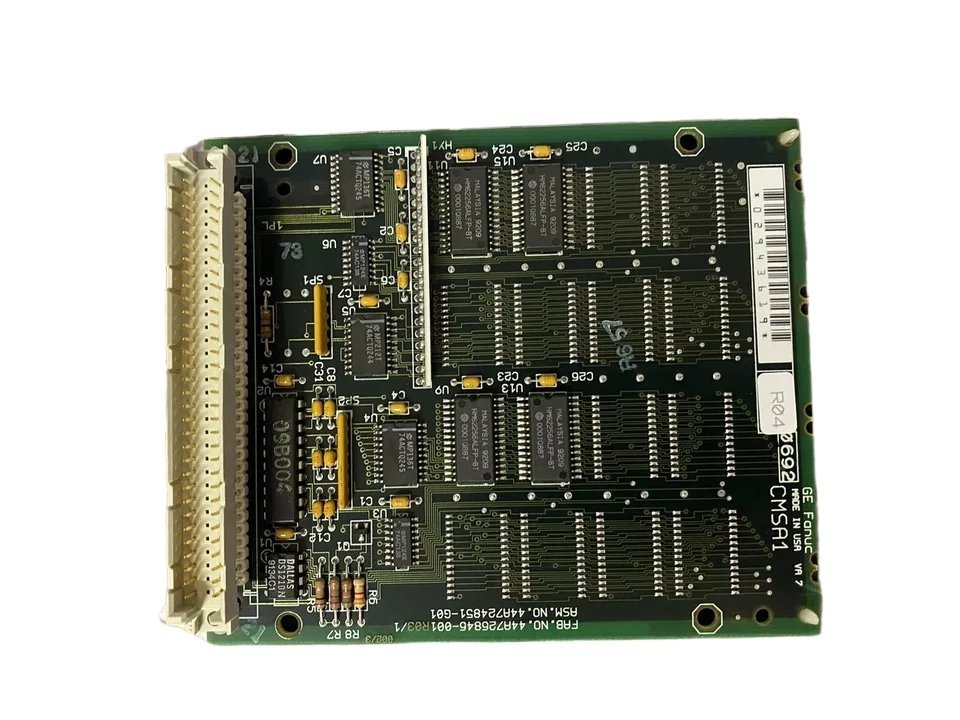

The IC697MEM715B is a CMOS expansion memory module by GE Automation and Controls.
It expands the data and logic memory for CPU 772/771 or Programmable Co-Processor Module (IC697PCM711).
Available capacities include 64 KB, 128 KB, 256 KB, and 512 KB.
Memory can be configured for program storage or data storage.
This module functions as a daughterboard and fits into the same slot as the supported module.
Stored memory is preserved by the baseboard battery during power loss.
The CPU continuously checks memory using checksum routines.
During resets or power cycles, the module automatically verifies storage for errors.
Software and Installation
- Compatible with MS-DOS and Windows-based programming software.
- Includes a lithium battery to maintain calendar clock and memory when power is off.
- Battery replacement is field-installable; install the new battery before removing the old.
- No additional tools required, simplifying setup.
Technical Specifications
| Feature | Specification |
|---|---|
| Battery Shelf Life | 10 years at 20°C (68°F) |
| Memory Retention | 6 months nominal without applied power |
| Memory Configuration | Supports program and data storage |
| VME System | Complies with VME standard C.1 |
| Error Checking | Logic program memory verified by checksum routines |
The IC697MEM715B ensures reliable memory expansion for GE Fanuc PLC systems, offering robust error checking and long-term retention for industrial automation applications.
Details
| Weight | 0.44 kg |
|---|---|
| Dimensions | 118 × 87 × 52.5 mm |
