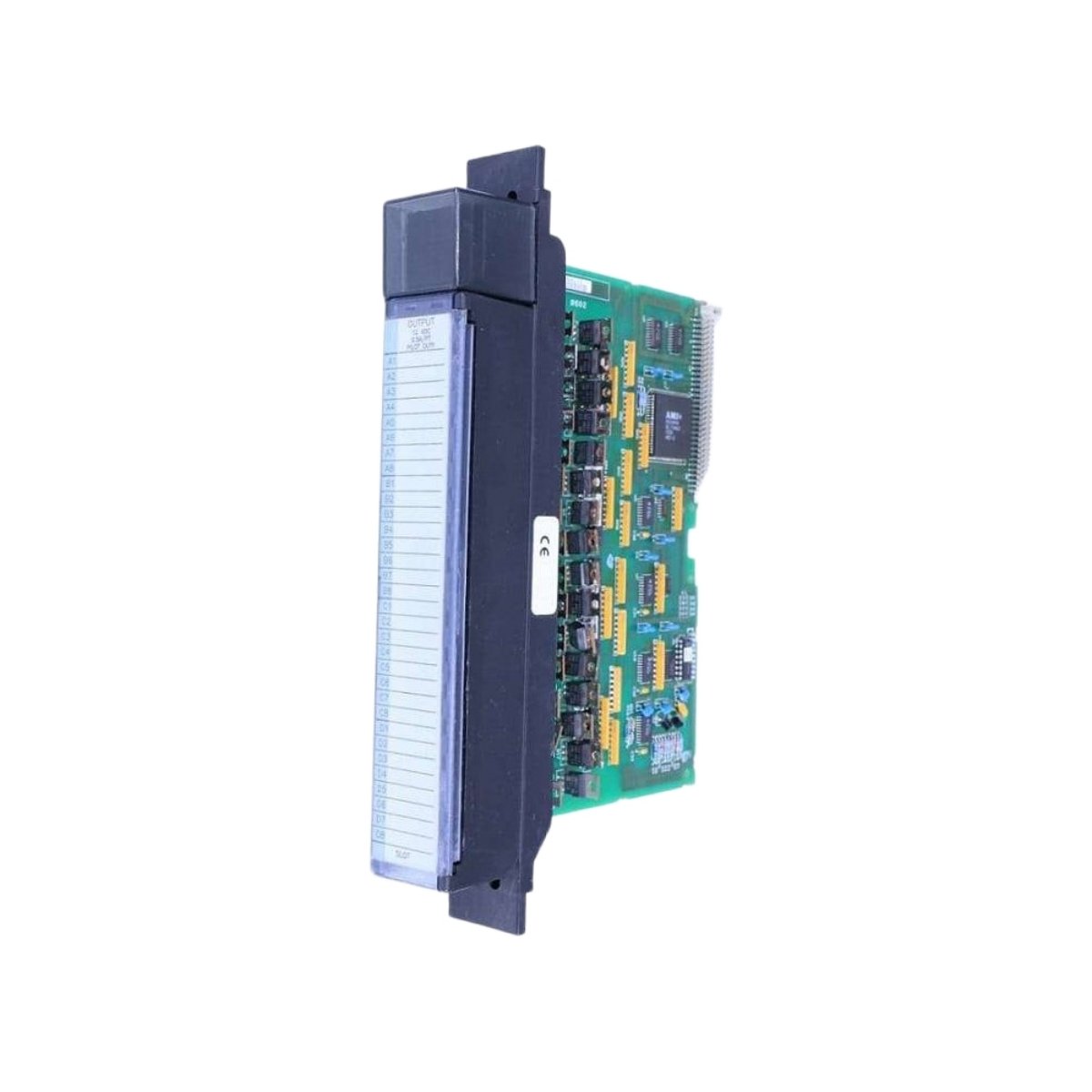

GE Fanuc IC697MDL752 32-Point Output Module Overview
The GE Fanuc IC697MDL752 is a high-performance 12V DC discrete output module for Series 90-70 PLC systems. It provides 32 reliable output points, organized into 4 groups of 8 points, ensuring precise control for demanding industrial automation applications. This module features fast response times and robust electrical protection for enhanced system stability.
Key Features
- 32 discrete output points with 12V DC operation
- Grouped into 4 sets of 8 points for optimized control
- Maximum output current of 0.5 Amps per point and 2 Amps per group
- Extremely fast 1-millisecond response time for on/off switching
- High isolation voltage of 1500 Volts ensures electrical safety
- Supports up to 10 Amps inrush current for short-duration surges
- Minimal voltage drop of 1 Volt at 2 Ohms load for reliable operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc |
| Series | Series 90-70 |
| Model | IC697MDL752 |
| Rated Voltage | 12 V DC |
| Output Voltage Range | 10–15 V DC |
| Output Current Per Point | 0.5 A |
| Group Current | 2 A per group |
| Required Module Current | 0.25 A |
| Number of Outputs | 32 points (4 groups of 8) |
| Isolation Voltage | 1500 V |
| Response Time | 1 millisecond (on/off) |
| Inrush Current | 10 A max (20 ms) |
| Voltage Drop | 1 Volt / 2 Ohms maximum |
Package Includes
- One (1) GE Fanuc IC697MDL752 12V DC output module
- Installation guide
Installation Guidelines
Install the IC697MDL752 module into a Series 90-70 PLC rack slot. Connect output devices according to group allocation. Ensure power ratings match load requirements for safe operation.
Ideal Applications
The IC697MDL752 module is ideal for:
- Industrial discrete output control systems
- Automation tasks requiring precise timing and fast switching
- Machines with grouped output loads
- PLC expansions for complex industrial processes
Frequently Asked Questions
Q: What operating voltage does this module require?
A: The module operates at 12V DC with a range of 10–15 V DC.
Q: How many output points are available?
A: It provides 32 discrete output points, organized into 4 groups.
Q: What is the maximum current per point?
A: Each output supports up to 0.5 Amps, with 2 Amps maximum per group.
Q: How fast does it respond?
A: The module has a 1-millisecond response time for both on and off states.
Origin, Dimensions, and Weight
- Origin: USA
- Dimensions: 130 mm × 100 mm × 25 mm
- Weight: 0.5 kg
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 130 × 100 × 25 mm |
