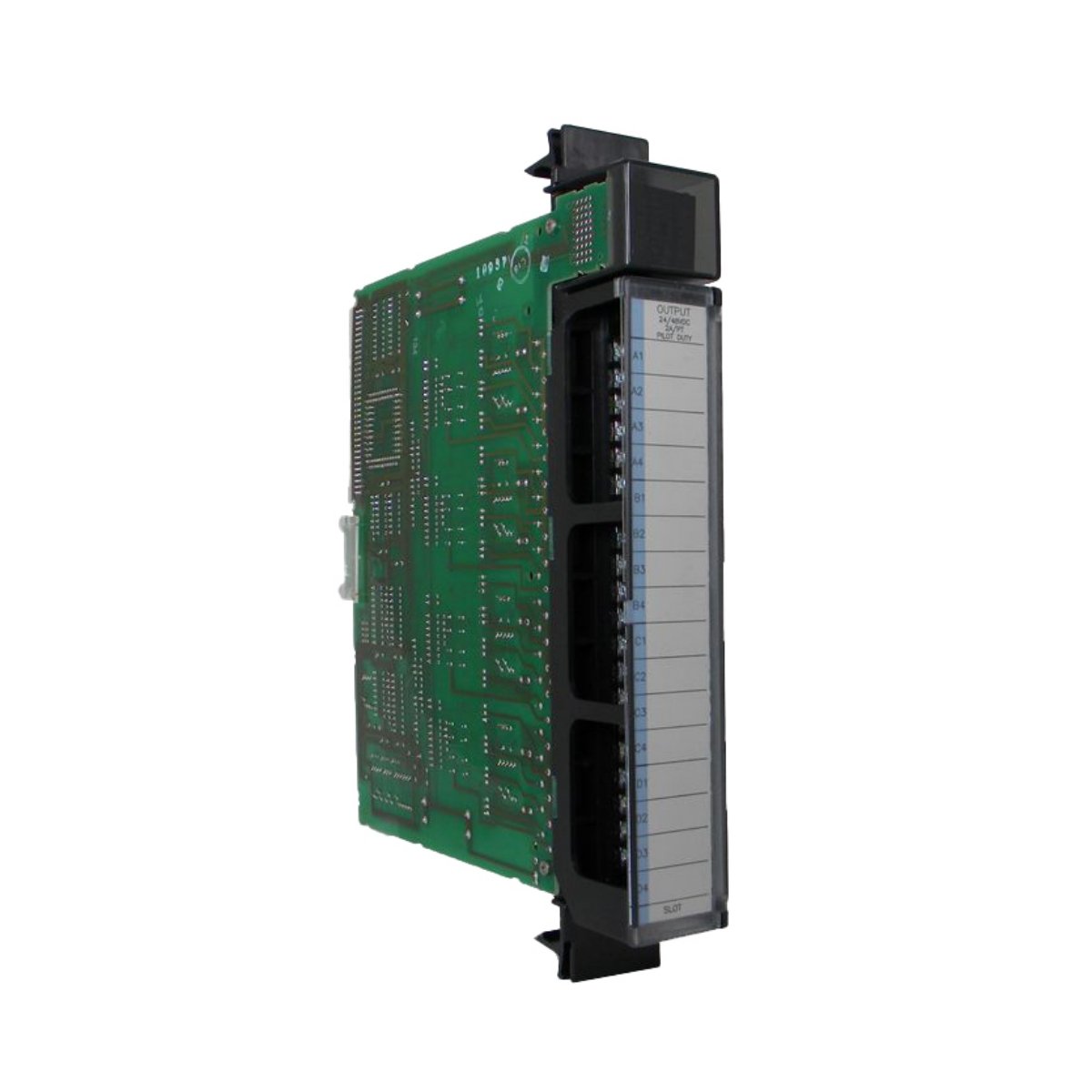

GE Fanuc IC697MDL740 DC Output Module Overview
The GE Fanuc IC697MDL740 is a high-performance DC output module for Series 90-70 PLCs. Furthermore, it provides 16 robust output points capable of handling industrial loads, including solenoids, relays, and motor starters. In addition, it delivers 2-millisecond turn-on and turn-off times, ensuring rapid and reliable control.
Key Features
- 16 discrete output points supporting high-power DC devices
- Wide operating voltage range from 24 to 48 V DC (up to 60 V DC)
- Maximum current of 2 A per point and 4 A per group
- Additionally, built-in LED indicators provide visual status and diagnostics
- High inrush capacity: 20 A for 20 milliseconds
- Group fusing protects outputs from overloads and short circuits
- Mechanical keying prevents incorrect installation and enhances safety
- Consequently, the module ensures consistent performance in demanding environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc |
| Series | Series 90-70 |
| Model | IC697MDL740 |
| Module Type | DC Output Module |
| Output Points | 16 |
| Rated Voltage | 24–48 V DC |
| Output Voltage Range | 20–60 V DC |
| Current per Point | 2 A |
| Current per Group | 4 A |
| Inrush Current | 20 A (20 ms) |
| Voltage Drop | 0.8 V / 0.4 Ω max |
| Turn-On Time | 2 ms max |
| Turn-Off Time | 2 ms max |
| Isolation Voltage | 1500 V |
| Power Consumption | 0.15 A |
| Fusing | Group Fused |
Package Includes
- One (1) GE Fanuc IC697MDL740 DC output module
- Complete installation guide and documentation
Installation Guidelines
First, install the IC697MDL740 into a Series 90-70 PLC rack slot. Next, connect outputs to DC devices according to group assignments. Additionally, align the mechanical key carefully to prevent installation errors. Finally, configure the module using standard PLC software to ensure proper operation.
Ideal Applications
The IC697MDL740 module is perfect for:
- Driving DC solenoids and relays in automation systems
- Controlling valves, motor starters, and indicators
- Industrial PLC expansions with grouped outputs
- Applications requiring fast response times and reliable DC switching
Frequently Asked Questions
Q: What is the inrush current capability?
A: The module can handle 20 A for 20 milliseconds, enabling it to start inductive or high-load devices.
Q: How are the outputs grouped?
A: The 16 outputs are organized into groups, with each supporting up to 4 A total.
Q: Is there protection for the outputs?
A: Moreover, the module features group fusing to protect outputs against short circuits.
Q: What is the operating voltage range?
A: It works reliably from 20 to 60 V DC, covering most industrial DC applications.
Q: How fast is the response time?
A: Consequently, both turn-on and turn-off operations complete within 2 milliseconds, ensuring rapid control.
Origin, Dimensions, and Weight
- Origin: USA
- Dimensions: 130 mm × 95 mm × 25 mm
- Weight: 0.48 kg
Details
| Weight | 0.48 kg |
|---|---|
| Dimensions | 130 × 95 × 25 mm |
