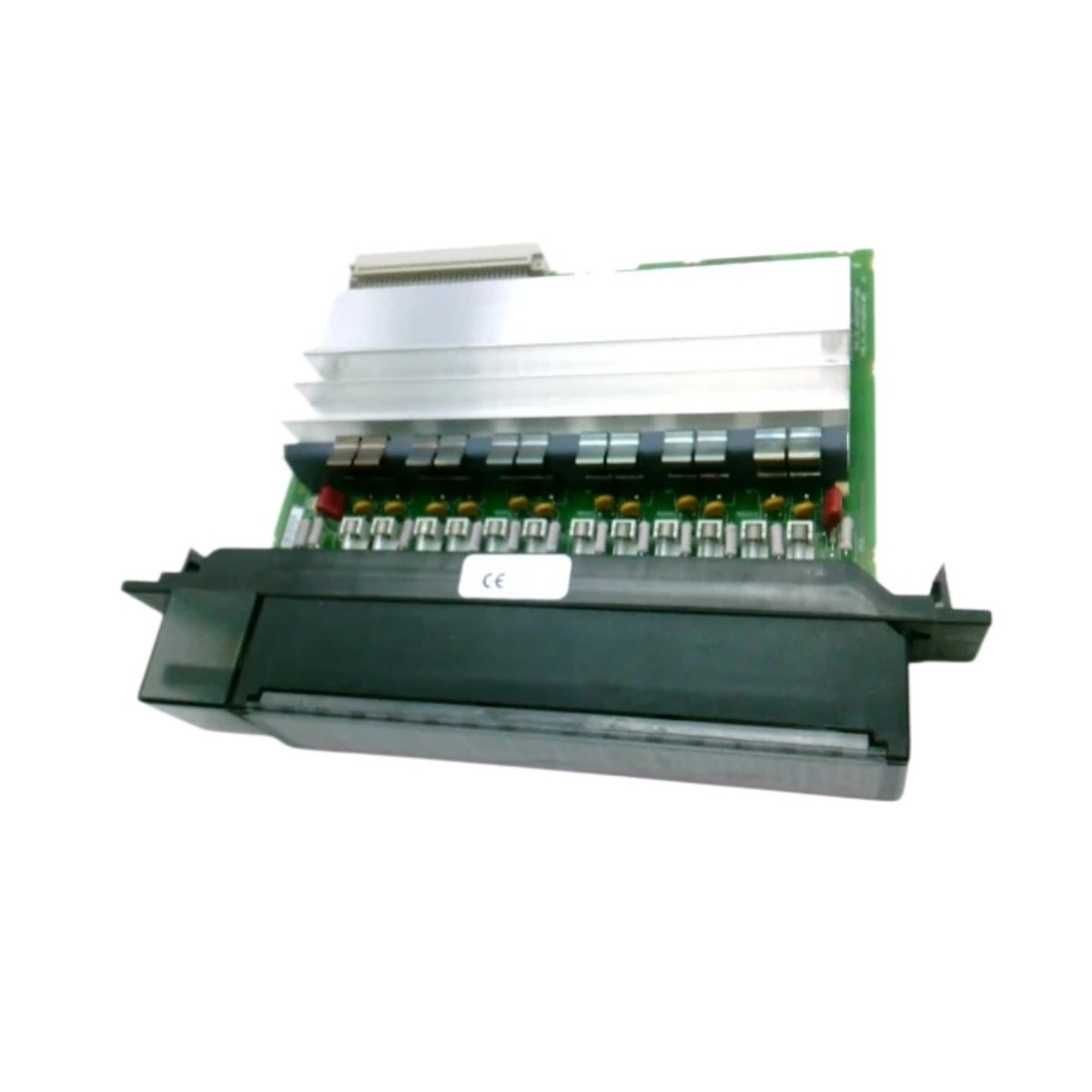

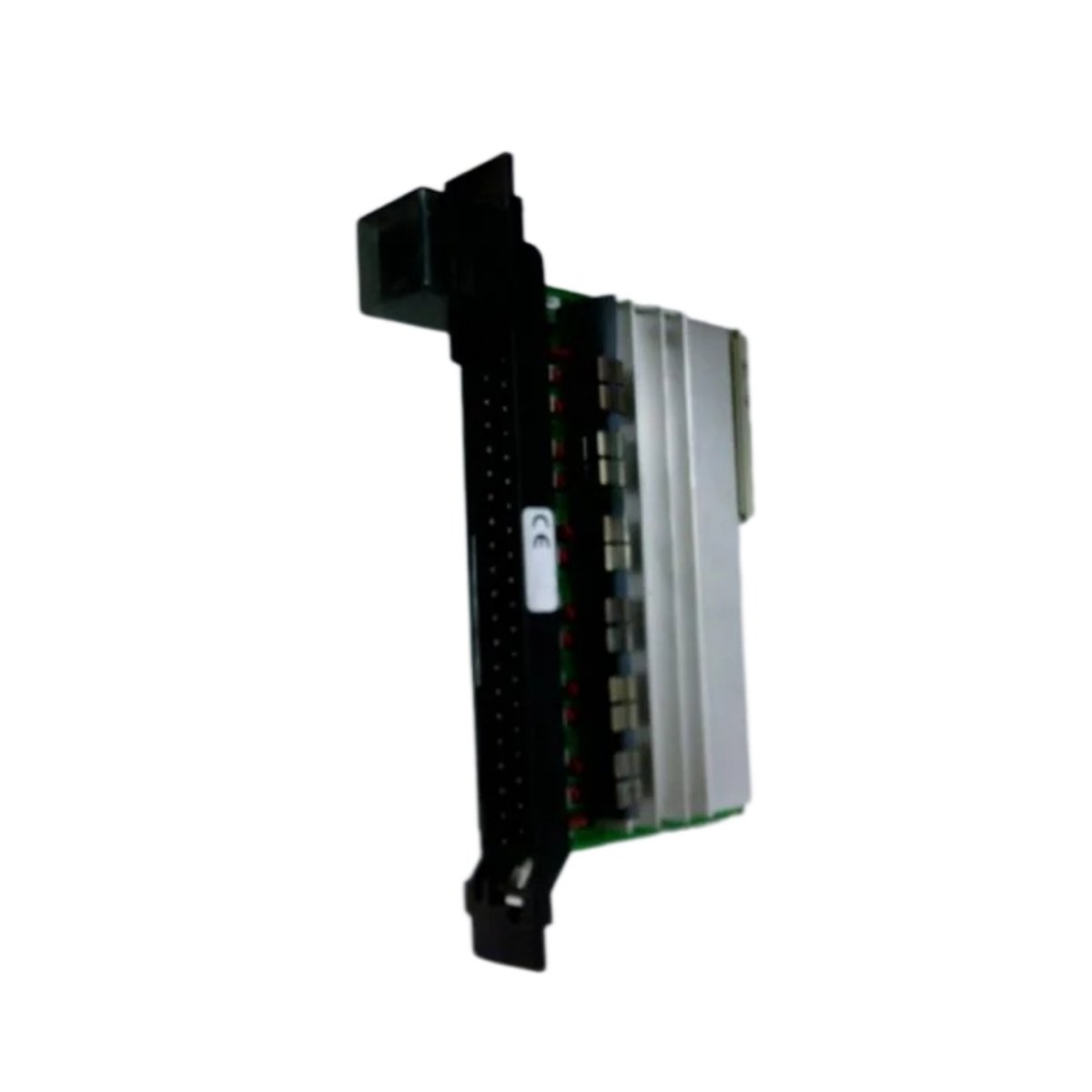

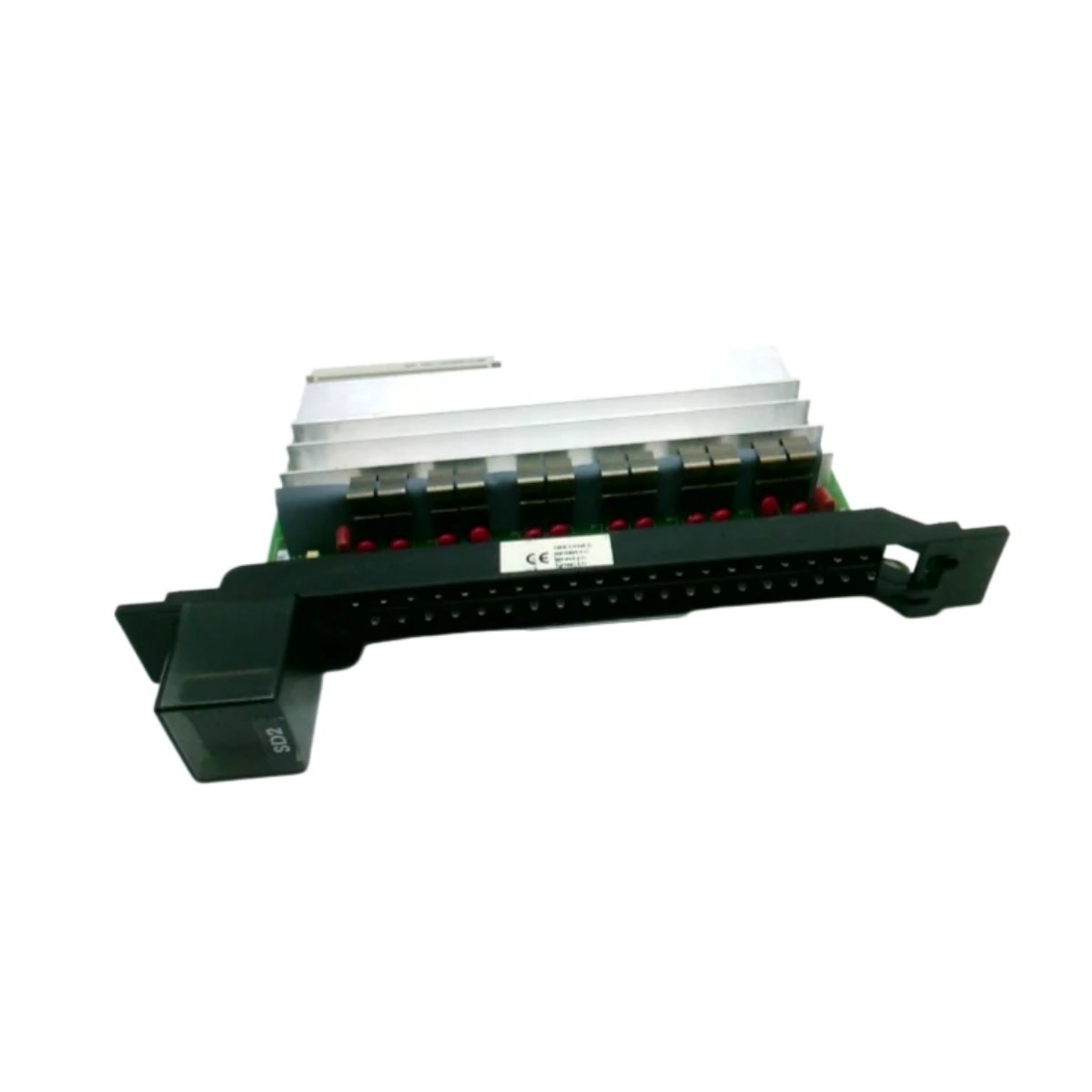

GE Fanuc IC697MDL341 AC Output Module Overview
The GE Fanuc IC697MDL341 is a high-performance AC output module for Series 90-70 PLCs. Moreover, it provides 12 fully isolated output points capable of handling 120-240V AC. Additionally, each point supports heavy loads up to 2A, making it ideal for motors, solenoids, and indicator lights.
Key Features
- 12 isolated AC output points for safe, independent operation
- Wide 120-240V AC voltage range for versatile industrial applications
- Each output point supports 2 Amps continuous current
- High inrush capacity up to 20 Amps for inductive loads
- Built-in LED indicators display output and fuse status clearly
- Replaceable 3.15A fuses provide protection for each output
- Easy installation into any Series 90-70 PLC rack using mechanical keying
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc / GE Intelligent Platforms |
| Series | Series 90-70 |
| Model | IC697MDL341 |
| Module Type | AC Output Module |
| Output Points | 12 (fully isolated) |
| Voltage Range | 120-240 V AC |
| Current per Point | 2 A |
| Total Current | 16 A |
| Inrush Current | 20 A (surge) |
| Fuse Rating | 3.15 A, replaceable |
| Frequency | 47-63 Hz |
| Power Consumption | 0.25 A |
| LED Indicators | Yes, output and fuse status |
| Installation | Keyed for correct Series 90-70 rack placement |
Package Contents
- One (1) GE Fanuc IC697MDL341 AC output module
- Complete installation manual and documentation
Installation Guidelines
First, insert the IC697MDL341 into the correct Series 90-70 rack slot. Next, connect your AC devices to each isolated output. Additionally, check the mechanical keying to ensure proper placement. Finally, monitor the LED indicators for output operation and fuse status.
Ideal Applications
The IC697MDL341 module is perfect for:
- Driving motor starters, solenoids, and contactors safely
- Controlling pilot lights and AC indicators in industrial panels
- Managing inductive loads with high inrush current efficiently
- Multi-phase AC distribution with fully isolated outputs
Frequently Asked Questions
Q: What is the maximum total current?
A: The total current for all points together is 16 Amps.
Q: Are the fuses easy to replace?
A: Yes, each output has its own 3.15A replaceable fuse for fast maintenance.
Q: Can I use this module for 3-phase AC systems?
A: Yes, the 12 isolated points allow connections across different phases safely.
Q: What does the fuse LED indicate?
A: The LED turns on if a fuse blows, enabling quick troubleshooting.
Q: Do I need software to configure it?
A: No, this module does not require software or DIP switches for setup.
Origin, Dimensions, and Weight
- Origin: USA
- Dimensions: 130 mm × 95 mm × 40 mm
- Weight: 0.53 kg
Details
| Weight | 0.53 kg |
|---|---|
| Dimensions | 130 × 95 × 40 mm |
